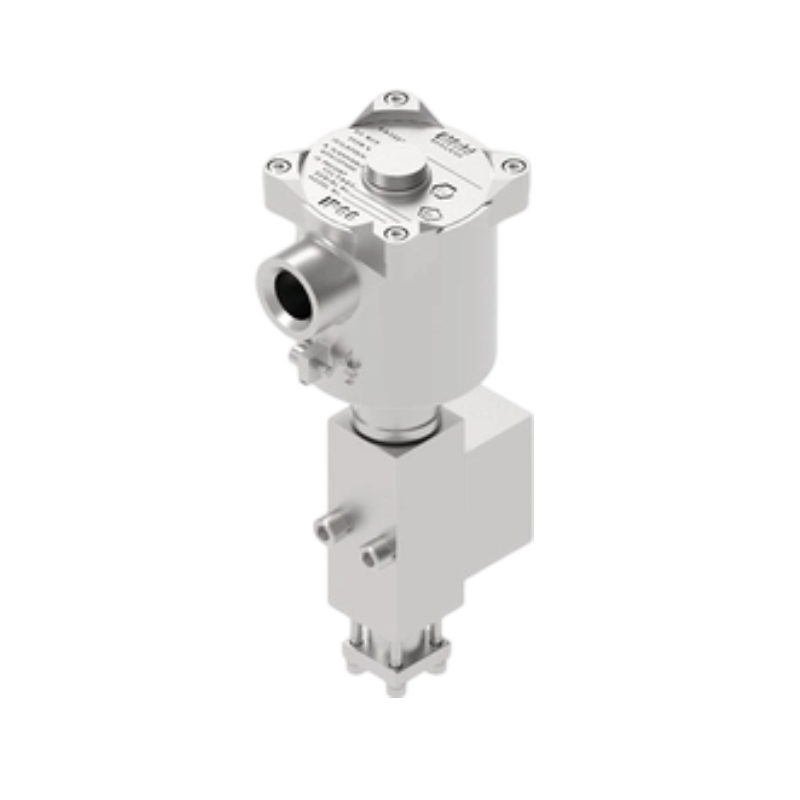

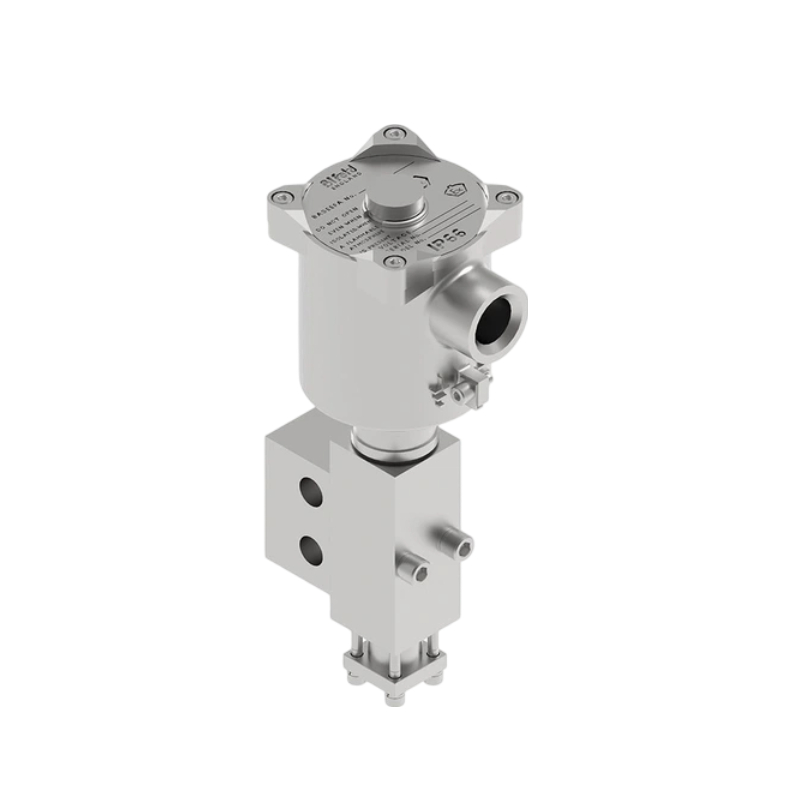

Bifold FP05 345bar Mini High Pressure Solenoid Valve Medium Flow High Safety
The Bifold FP05 is a high-performance direct-acting mini solenoid valve designed to bridge the gap between compactness and power. Building on the FP02's foundation, it offers approximately double the flow capacity and a higher ultra-high pressure rating of up to 345 bar (5,000 psi). Engineered for high safety standards and heavy-duty applications, it is a good choice for medium flow high-pressure circuits requiring robust control and reliability in demanding environments.
Features
Enhanced Flow & Pressure:
Medium flow range (Cv 0.1–0.4, ~2x that of FP02) with an industry-leading ultra-high pressure rating of 345 bar (5,000 psi), suitable for extreme hydraulic conditions.
Robust Driving Force:
Slightly higher power consumption (1–10W) delivers stronger actuation force, ensuring stable and reliable operation for large torque actuators and high-flow circuits.
High Safety & Security:
Equipped with explosion-proof (Ex d) and safety interlock options, specifically designed for hazardous areas (Zone 1/2) and safety-critical systems (SIL2/SIL3).
Compact & Reliable:
Maintains a miniaturized form factor while offering superior performance compared to competitors, making it suitable for space-limited yet high-demand applications.
Fast Response:
Quick response time (≤15ms) ensures stable performance even under medium-high flow and high-pressure switching conditions.
Specifications
Model | Bifold FP05 Series |
Type | Direct Acting Mini Solenoid Valve |
Flow Capacity (Cv) | 0.1 – 0.4 (~2x that of FP02) |
Max Pressure | 345 bar (5,000 psi) / 220 bar (3,200 psi) (Dual Pressure Grades) |
Power Consumption | 1 – 10 W (Stronger Driving Force) |
Response Time | ≤15 ms (Fast & Stable Under High Pressure) |
Body Material | 316L Stainless Steel |
Seal Material | Viton / EPDM / Kalrez (Customizable) |
Ambient Temp | -50°C ~ +200°C (Based on Seal) |
Explosion Proof | Ex d (Flameproof, Optional) / Ex ia (Intrinsic Safety, Optional) |
Safety Level | SIL2/SIL3 (Optional, for Safety-Critical Circuits) |
