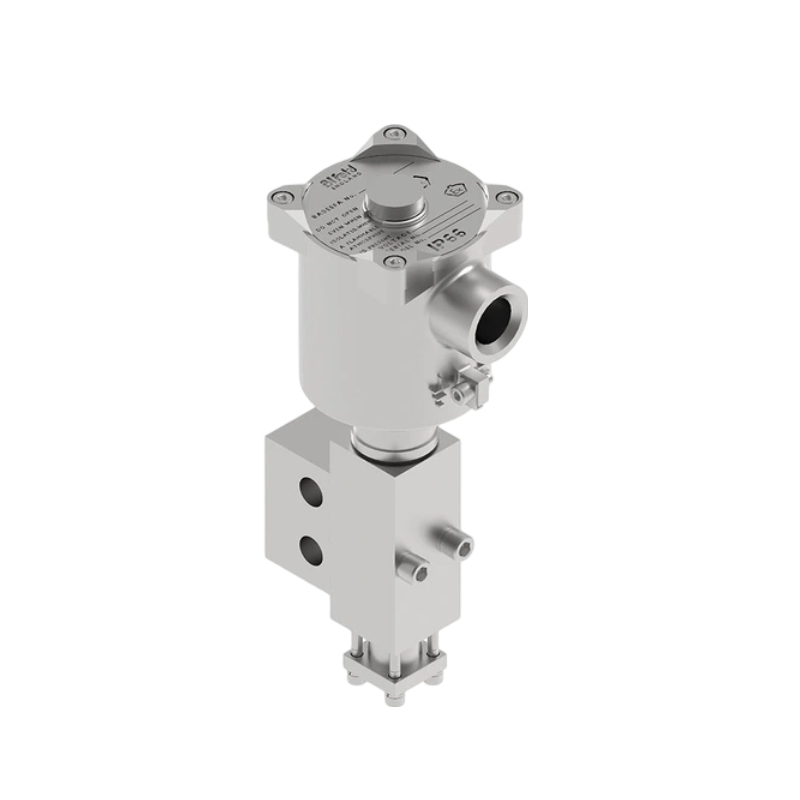

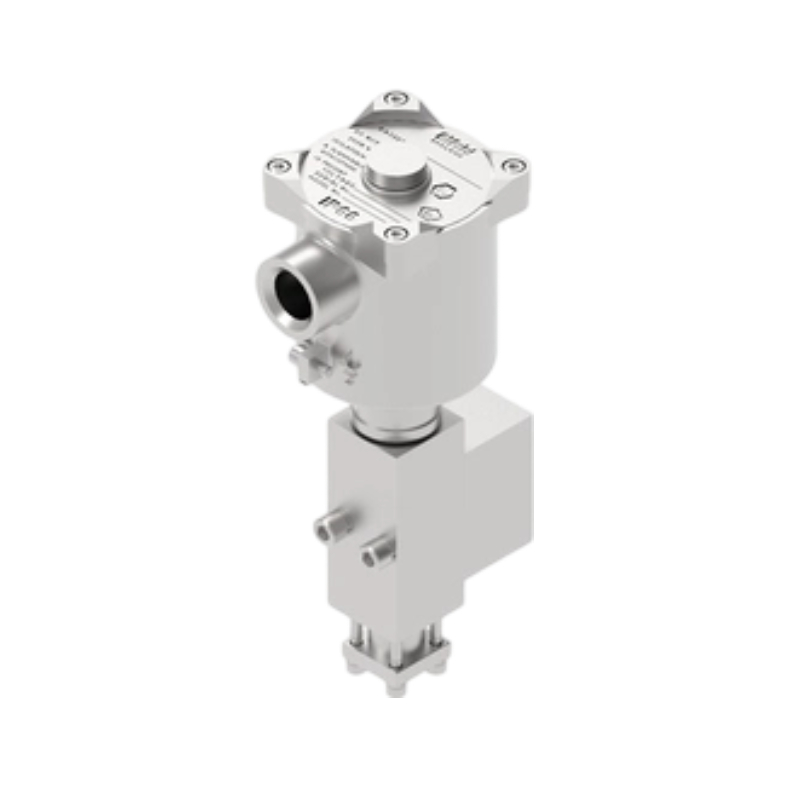

Bifold FP02 210bar Mini High Pressure Solenoid Valve Low Flow Low Power
The Bifold FP02 is an ultra-compact, subminiature direct-acting high-pressure solenoid valve designed for space-constrained hydraulic and pneumatic systems. As the entry model in the Bifold mini series, it excels in low flow and low power consumption scenarios, making it the ideal choice for applications requiring extreme miniaturization and energy efficiency. Equipped with high-precision components, it offers ultra-fast response times and exceptional reliability.
Features
Ultra-Miniature Design:
Extremely compact footprint and lightweight structure, perfect for integration into dense valve blocks and miniaturized equipment, saving maximum installation space.
Low Flow & Low Power:
Optimized for small flow rates (Cv 0.04–0.2) with ultra-low power consumption (1–8W), ensuring minimal heat generation and extended service life, ideal for battery-powered or long-term energized applications.
Ultra-Fast Response:
High-speed switching performance (≤10ms), stable operation under high-frequency conditions (≥1 million cycles/year), meeting the demands of rapid control systems.
High Pressure Resistance:
Capable of withstanding pressures up to 210 bar (3,045 psi), ensuring stable and safe operation in medium to high-pressure hydraulic circuits.
Cost-Effective & Reliable:
Delivers exceptional cost-performance ratio, with a simple structure minimizing leakage points and ensuring high operational reliability in harsh industrial environments.
Specifications
Model | Bifold FP02 Series |
Type | Direct Acting Mini Solenoid Valve |
Flow Capacity (Cv) | 0.04 – 0.2 |
Max Pressure | 210 bar (3,045 psi) |
Power Consumption | 1 – 8 W (Low Power Version ≤2W) |
Response Time | ≤10 ms (Ultra-Fast) |
Body Material | 316L Stainless Steel |
Seal Material | Viton / EPDM / Kalrez (Customizable) |
Ambient Temp | -50°C ~ +200°C (Based on Seal) |
Explosion Proof | Ex ia/Ex d (Optional) |
