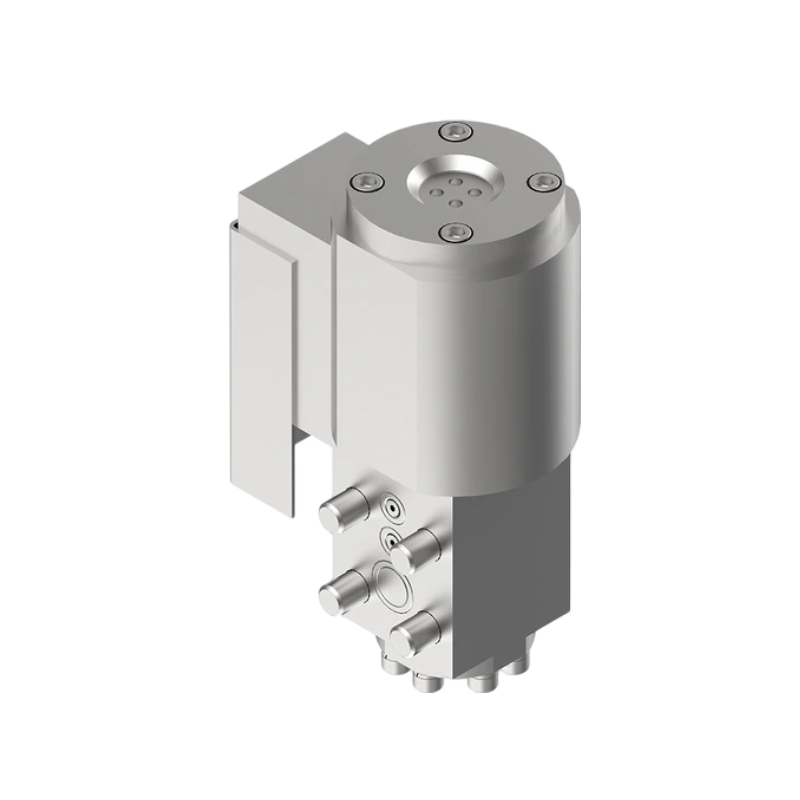

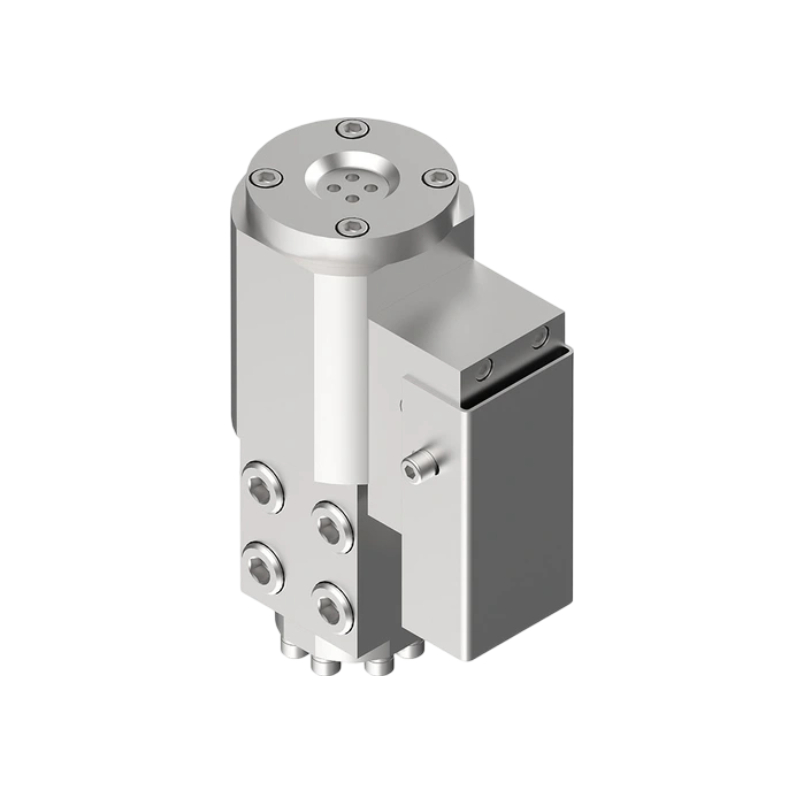

Bifold FPS01 Subsea Explosion Proof Solenoid Valve
The Bifold FPS01 is a professional subsea solenoid valve designed for extreme deep-sea and ultra-high pressure working conditions, dedicated to offshore, marine exploration, and deep-sea engineering control scenarios. As a special model in the Bifold FP series, it features ultra-high pressure resistance, deep-sea sealing, and corrosion resistance, making it a core control component for global deep-sea exploration and offshore oil and gas projects that require high reliability and stability.
Features
Ultra-High Pressure Resistance:
Adopts advanced direct acting design, with a maximum working pressure of 690 bar (10,000 psi), capable of withstanding extreme pressure in deep-sea environments, ensuring stable operation without leakage even under ultra-high pressure conditions.
Deep Sea Adaptability:
Specially designed for deep-sea operation, it can work stably at a maximum depth of 3000 meters, with professional deep-sea sealing technology to prevent seawater intrusion and ensure long-term reliable operation in harsh marine environments.
Corrosion & Seawater Resistant:
The valve body is made of high-strength corrosion-resistant material, matched with special seawater-resistant seal materials, effectively resisting seawater corrosion, marine organisms attachment, and harsh offshore environmental erosion, greatly extending the service life in subsea conditions.
Explosion-Proof & Deep-Sea Certified:
Equipped with explosion-proof coils and certified for deep-sea applications, meeting global offshore and marine safety standards, safe to use in offshore oil and gas, deep-sea exploration and other hazardous and extreme environments.
Direct Acting Design:
Adopts direct acting structure, no need for pilot pressure, can start stably under zero-pressure conditions, suitable for precise control of small flow in deep-sea control systems, with fast response and high control accuracy.
Customizable Specifications:
Port size and interface can be customized according to project needs, perfectly matching various deep-sea equipment and offshore skid-mounted systems, with strong adaptability to complex engineering requirements.
High Reliability & Low Maintenance: Optimized structural design, strict quality control, able to adapt to extreme temperature changes (-20°C to +125°C) and harsh marine environments, reducing maintenance frequency and lowering the cost of deep-sea operation and maintenance.
Specifications
Model | Bifold FPS01 |
Valve Type | Direct Acting Solenoid Valve |
Function | 3/2 Way |
Working Pressure | 0–690 bar / 0–10,000 psi |
Flow Coefficient (Cv) | ≈ 0.01 (small flow precise control) |
Port Size | Customizable (miniature compact) |
Body Material | High-strength Corrosion-resistant Stainless Steel |
Seal Material | Seawater-resistant FKM (Viton) (configurable) |
Media | Seawater, Compressed Air, Inert Gases, Light Hydraulic Fluids |
Ambient Temp Range | -20°C ~ +125°C (deep-sea adaptive) |
Certification | Deep-sea Certification, ATEX, IECEx (Optional) |
Protection Grade | IP68 (Deep-sea Sealing, Explosion-Proof Coils) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (per order) |
Key Features | Direct Acting, 690Bar Ultra-High Pressure, 3000m Deep Sea Adaptable, Corrosion Resistant, Explosion Proof |
