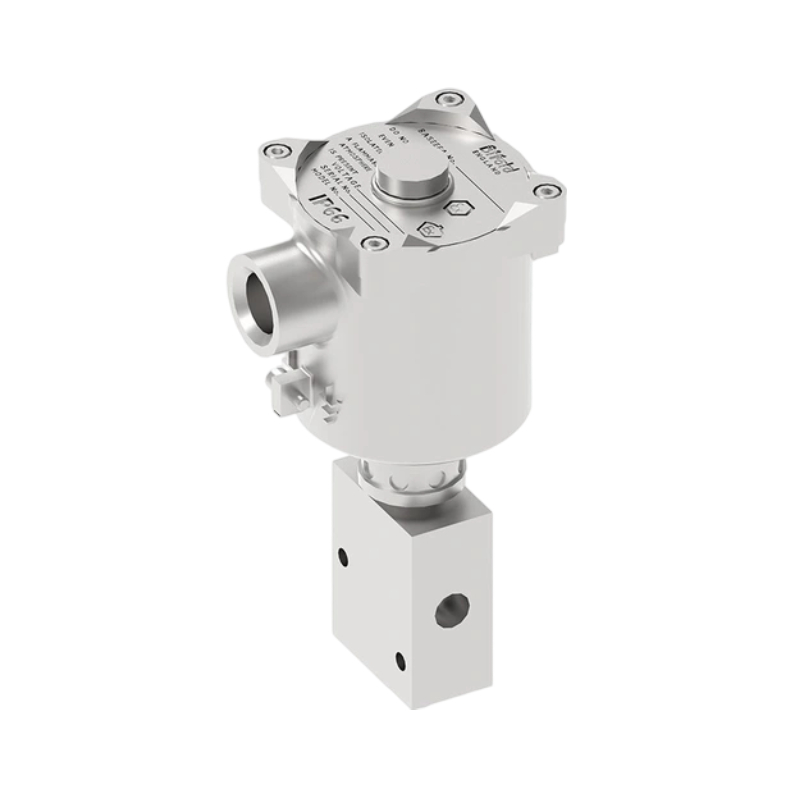

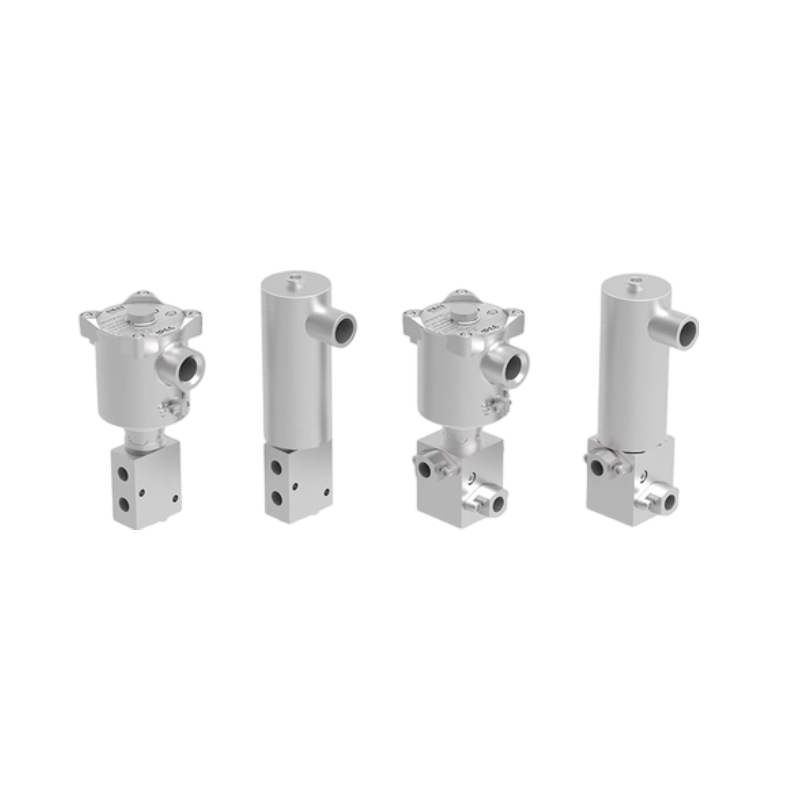

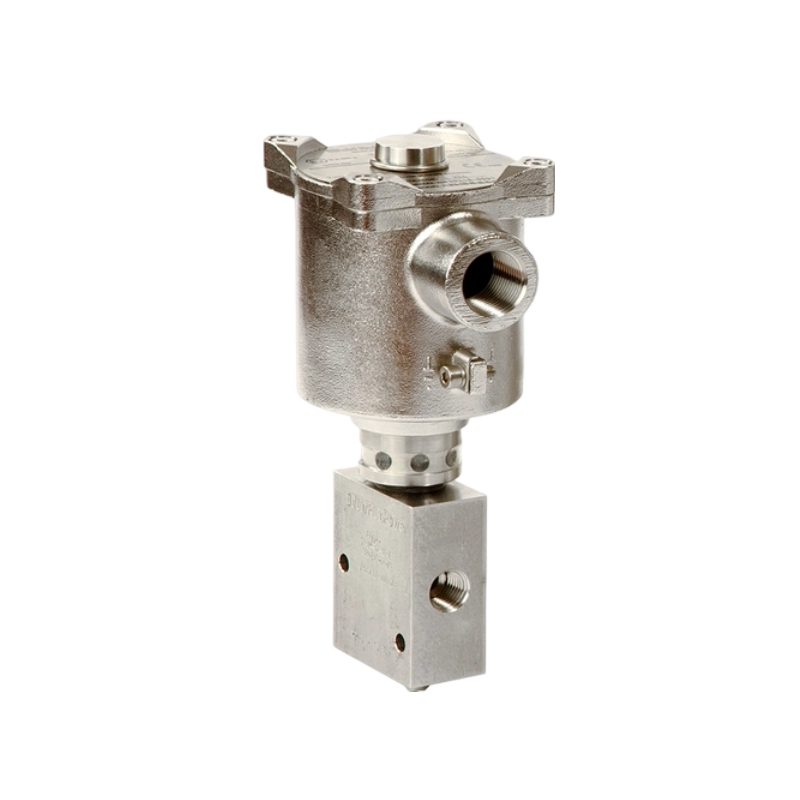

Bifold FP06P Pilot Operated Solenoid Valve Explosion Proof 316SS
The Bifold FP06P is a widely used, high-reliability pilot operated solenoid valve, specially designed for universal industrial automation, instrumentation, and general pneumatic control scenarios. It combines compact structure, stable performance, and strong adaptability.
Features
Pilot Operated Design:
Adopts advanced pilot operation, which is energy-saving and efficient, suitable for medium-pressure and small-to-medium flow control, ensuring stable operation even in complex industrial environments.
Stable Pressure Performance:
Working pressure ranges from 0–10 bar (0–145 psi), matching the pressure requirements of most industrial pneumatic and instrumentation systems, with pressure control and no leakage.
Compact & Easy Installation:
Standard 1/4" interface, small body size, easy to install in instrument panels, skid-mounted systems, and limited-space equipment, reducing installation time and labor costs.
Corrosion-Resistant & Durable:
Body made of 316L stainless steel, with optional NBR or FKM (Viton) seal materials, corrosion-resistant, high-temperature resistant, and suitable for harsh industrial working conditions, extending service life and reducing maintenance frequency.
Explosion-Proof & Certified:
Equipped with explosion-proof coils, ATEX and IECEx certified, safe to use in hazardous gas environments, meeting global industrial safety standards.
Universal Compatibility:
Standard 3/2 way function, compatible with various industrial automation equipment, widely used in multiple industries, with strong versatility and interchangeability.
Optional Safety Configuration:
SIL3 certification available, meeting high safety requirements for process industries such as oil and gas, chemical engineering.
Specifications
Model | Bifold FP06P |
Valve Type | Pilot Operated Solenoid Valve |
Function | 3/2 Way |
Working Pressure | 0–10 bar / 0–145 psi |
Flow Coefficient (Cv) | ≈ 1.1 |
Port Size | 1/4" |
Body Material | 316L Stainless Steel |
Seal Material | NBR / FKM (Viton) (configurable) |
Media | Compressed Air, Inert Gases |
Ambient Temp Range | -20°C ~ +70°C (adjustable by seal) |
Certification | ATEX, IECEx, SIL3 (Optional) |
Protection Grade | IP67 (Explosion-Proof Coils) |
Electrical Voltage | 24V DC, 48V DC, 110V AC, 230V AC (per order) |
Key Features | Pilot Operated, Compact Structure, Explosion Proof, Corrosion Resistant, 1/4" Interface |
