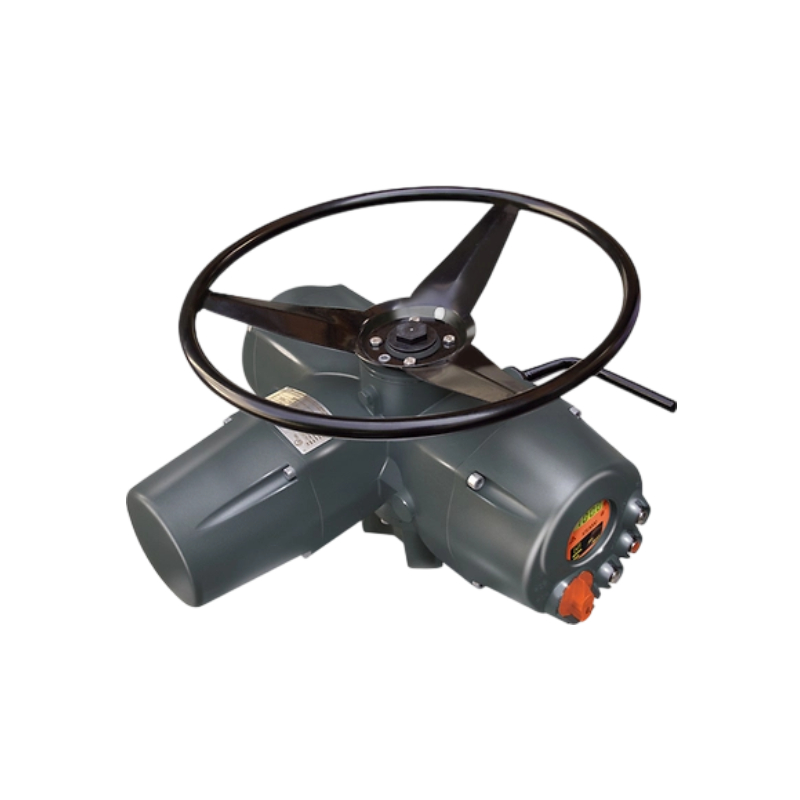

Bettis XTE3000 Electric Actuator
The XTE3000 is an intelligent multi-turn electric actuator from the Bettis family of actuators. Specifically designed to meet challenging valve automation demands of the Oil & Gas, Power, and Process industries, the XTE3000 is compliant with a wide range of international standards and is the ideal solution to your plant’s safety and reliability requirements.
Features
1.Non-intrusive with a user-friendly push-button panel for operation, configuration, and diagnostics
2.Bluetooth wireless connectivity

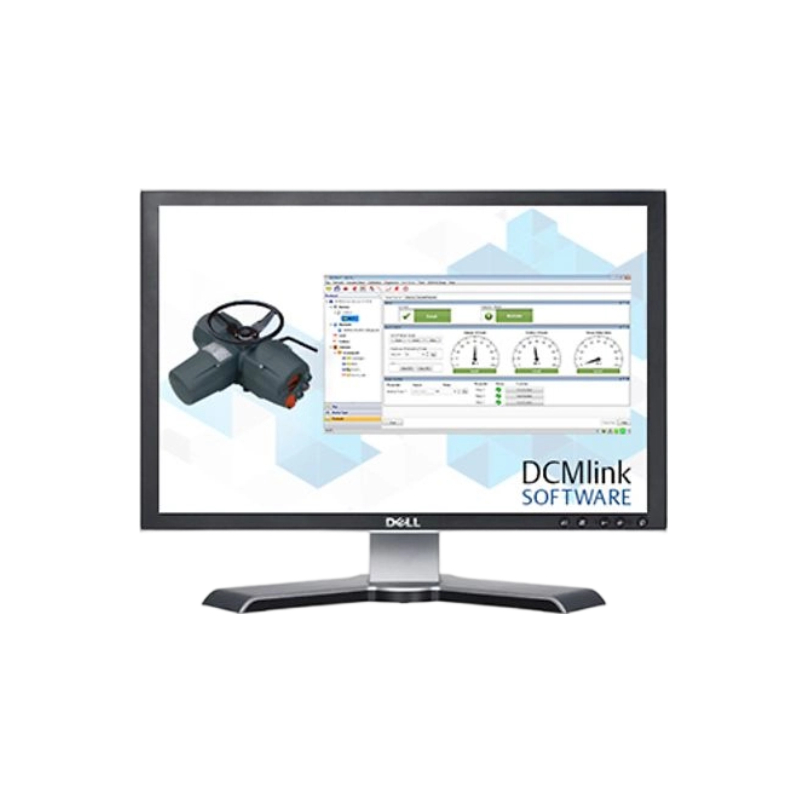

3.Maintenance data includes full internal datalogger records, operating data, alarms, valve torque curves, and provides important information on the performance and operating condition of valves and systems
4.Configurable datalogger function for maintenance and diagnostic programs
5.Customized numeric and graphic displays with multiple language options
6.High-definition absolute encoder, able to read valve position even when main and backup power is lost
7.Contactless digital motor speed sensor
8.Wide range of advanced open-bus communication protocols:
①Modbus
②HART
③PROFIBUS DPV0, DPV1, and redundant DPV2
④FOUNDATION Fieldbus
⑤LonWorks
Specifications
Power Source | Electric |
Product Type | Multi-Turn Electric Actuator |
Actuation | Electric |
Certifications | IECEx, FM (US), FM-c (Canada), NEPSI* (China), CU-TR* (CIS), INMETRO* (Brazil), CCOE* (India), KOSHA* (Korea) |
Control Type | On/Off, Modulating, ESD |
Valve Type | Gate, Globe, Butterfly, Ball, Rotary Plug, or Linear |
Torque/Thrust | From 30Nm (22lb.ft) to 1,440Nm (1062lb.ft), multi-turn From 330Nm to 63,000Nm (46,466lb.ft), quarter-turn Gears can extend the upper limit of this range as high as 1,000,000Nm (737,562lb.ft) |
