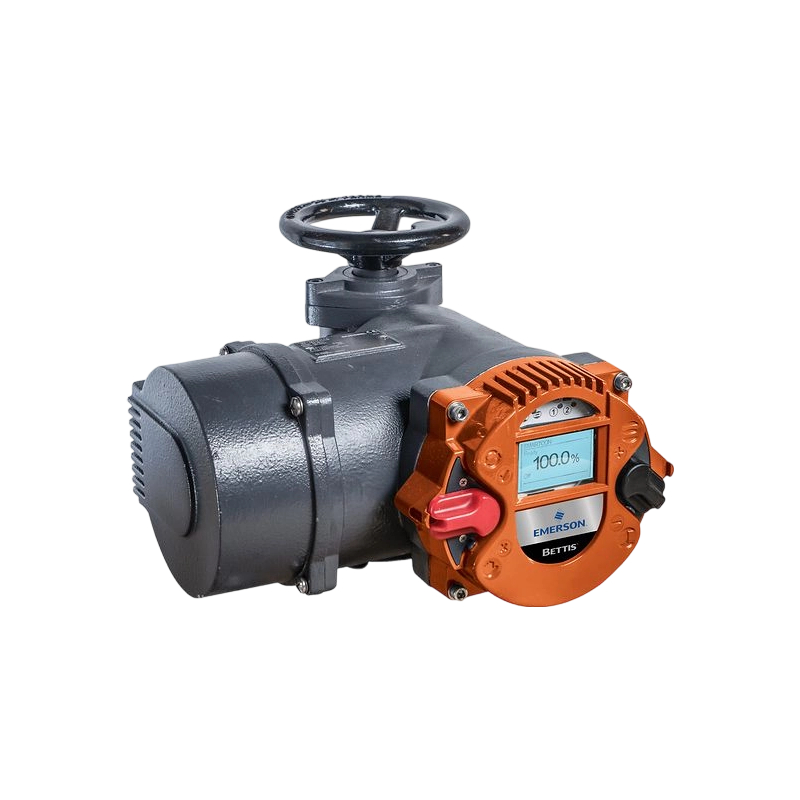

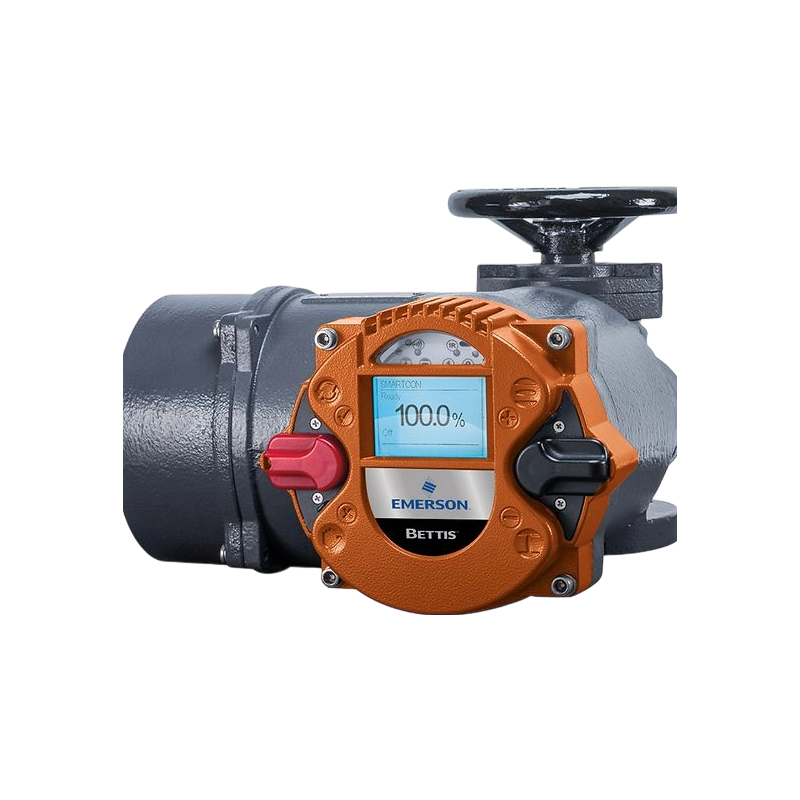

Bettis RTS CM Compact Multi-turn Electric Valve Actuator
A non-intrusive intelligent compact multi-turn electric actuator for ON/OFF and Process control applications. The robust and compact design offers continuous modulation with configurable speed options that are widely used on valves for oil & gas, power, chemical, HVAC, and water and wastewater industries.
Features
1.Compact & Light weight with corrosion protection
2.Intelligent and non-intrusive
3.On/Off (S2) and Continuous modulation (S9)
4.Adjustable speed (2sec-54 sec)
5.Brushless DC motor technology
6.Rotatable in 90 degree steps with remote mounting option
7.Local User Interface with wireless Bluetooth® control capability for configuration, monitoring and diagnostics
8.User application available for Android devices
Specifications
Power Source | Electric |
Product Type | Multi-turn Electric Actuator |
Actuation | Electric |
Certifications | ATEX, IECEx, UL, CSA |
Control Type | On/Off, Continuous Modulation |
Valve Type | Ball, Butterfly, Plug, Dampers, Globe |
Torque/Thrust | Maximum thrust: 64 Nm and maximum modulating force: 32Nm |
