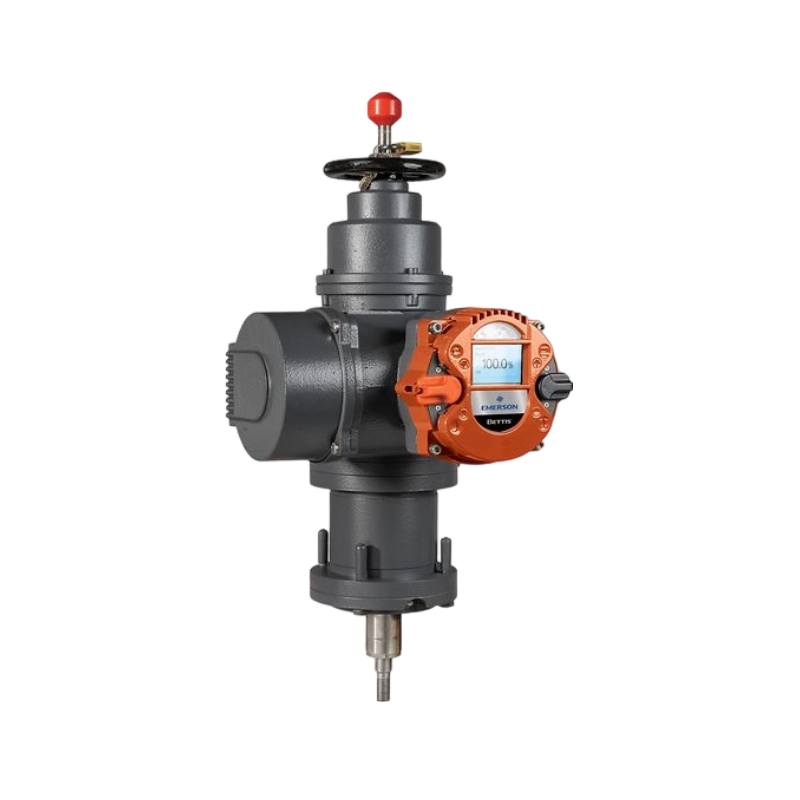

Bettis RTS FL Fail-Safe Linear Electric Valve Actuator
A non-intrusive intelligent fail-safe linear actuator for ON/OFF and modulation control in fail-safe applications. The robust and compact mechanical spring return design can be triggered to fail-safe action either on loss of power or signal. With no dependency on super-capacitor or battery-backup, this state of the art design is widely used on valves for oil & gas, power, chemical, HVAC, and water and wastewater industries.
Features
1.Intelligent and non-intrusive
2.On/Off (S2) and Continuous modulation (S9)
3.Up to 10116 lbs (45 KN) Electric Thrust
4.Mechanical driven fail-safe operation with Stem extended or Retracted
5.Direct coupling on the fail-safe with the valve shaft
6.Adjustable speeds
7.Fail-safe trigger selectable in case of drop-off 24 VDC fail-safe signal or main power supply
8.SIL3 capable
9.Option De-clutchable handwheel
10.Rotatable in 90 degree steps with remote mounting option
11.Local User Interface with wireless Bluetooth® control capability for configuration, monitoring and diagnostics
12.User application available for Android devices
Specifications
Power Source | Electric |
Product Type | Linear Electric Actuator |
Actuation | Electric |
Certifications | ATEX, IECEx, UL, CSA |
Control Type | On/Off, Continuous Modulation |
Valve Type | Ball, Butterfly, Plug, Dampers, Globe |
Torque/Thrust | Switch off thrust electric max. 25 kN (5,620 lbs-ft) and modulating thrust: max. 12 KN (2,697 lbs-ft) |
