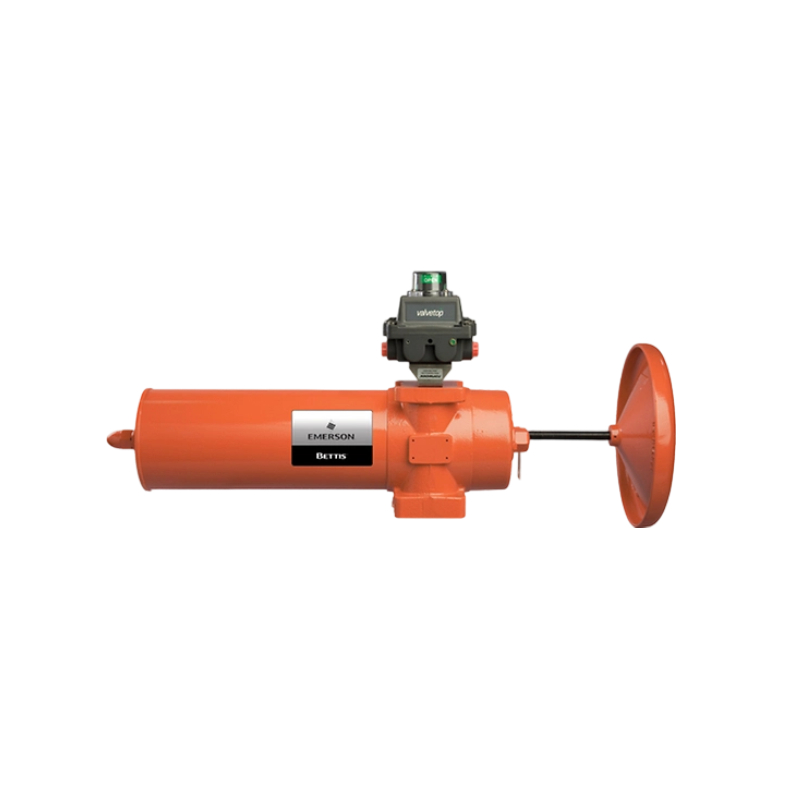

Bettis CBA300 Series Scotch Yoke Pneumatic Valve Actuator
The Bettis CBA300 is a pneumatic actuator that combines the strengths of the G-Series actuator and is compact, lightweight, efficient and very cost-effective.
Features
1.Can be integrated into systems with existing common communication protocols and DCMLink
2.Economical jackscrew manual override available to ensure reliable valve control in the event of the power loss.
3.ISO/DIN bottom mounting for close or direct coupling to the valve topworks
4.NAMUR standardization allows direct or close coupling of accessory hardware
5.Backed by a five-year material and workmanship warranty
Specifications
Power Source | Pneumatic |
Product Type | Pneumatic Actuator |
Actuation | Fail-Safe, Quarter-turn, Spring-Return, Double-Acting |
Certifications | ATEX, PED, (CE), SIL capable, NACE, TRCU/EAC/GOST, ABS |
Control Type | On/off |
Valve Type | Ball, Butterfly, Non-Lubricated Plug Valves, and Other Quarter-Turn Devices |
Operating Temperature | Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C) |
Torque/Thrust | Spring-return models in excess of 10,457 lbs-in (1,182 Nm), Double-acting in excess of 20,030 lbs-in (2,273 Nm) |
Operating Pressure | 40 to 150 psig (3 to 10 bar) |
