Bettis CBB-Series Scotch Yoke Pneumatic Valve Actuator

The Bettis CBB-Series scotch yoke pneumatic actuator combines the strengths of the G-Series actuator and is compact, lightweight, efficient and very cost-effective.

Online consultation

Details

Features

1.Economical jackscrew manual override available to ensure reliable valve control in the event of the power loss.

2.CBB symmetrical mounting pads allows field reversal of spring return actuator failure mode with no disassembly required (CW or CCW)

3.Compact and lightweight

4.Backed by a five-year material and workmanship warranty

Specifications

Power Source	Pneumatic
Product Type	Pneumatic Actuator
Actuation	Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications	ATEX, PED, (CE), SIL capable, NACE, TRCU/EAC/GOST, SHELL DEP, ABS
Control Type	On/off
Valve Type	Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices
Operating Temperature	Available in three different temperature trims: · Standard trim is suitable for -20°F to +200°F (-29°C to +93°C) · Optional high temperature trim +350°F (-18°C to +177°C) · Cold temperature trim -40°F to +150°F (-40°C to °C)
Torque/Thrust	Spring-return models in excess of 4,269 in-lbs (482 Nm), Double-acting in excess of 11,515 in-lbs (1,301 Nm)
Operating Pressure	Up to 150 psig (10 Bar)

Associated Products

Electric Actuators

XTE3000

M2CP

SCE300

TorqPlus

RTS Series (RTS FL, RTS FQ, RTS CL, RTS CM)

Keystone EPI2 Series

Pneumatic Actuators

G-Series

CBB-Series

CBA300 Series

RPE-Series

RPX-Series

M Series (Stainless Steel)

GVO Series

HD Series (Discontinued)

Hydraulic & Electro-Hydraulic Actuators

EHO (Standard, Smart)

BHH Series

BHHF Series

BL Series

BLF-BLFR Series

GS Series

PressureGuard

Gas-Hydraulic Scotch Yoke

Gas-Hydraulic Linear

GTD Series

Pictures show

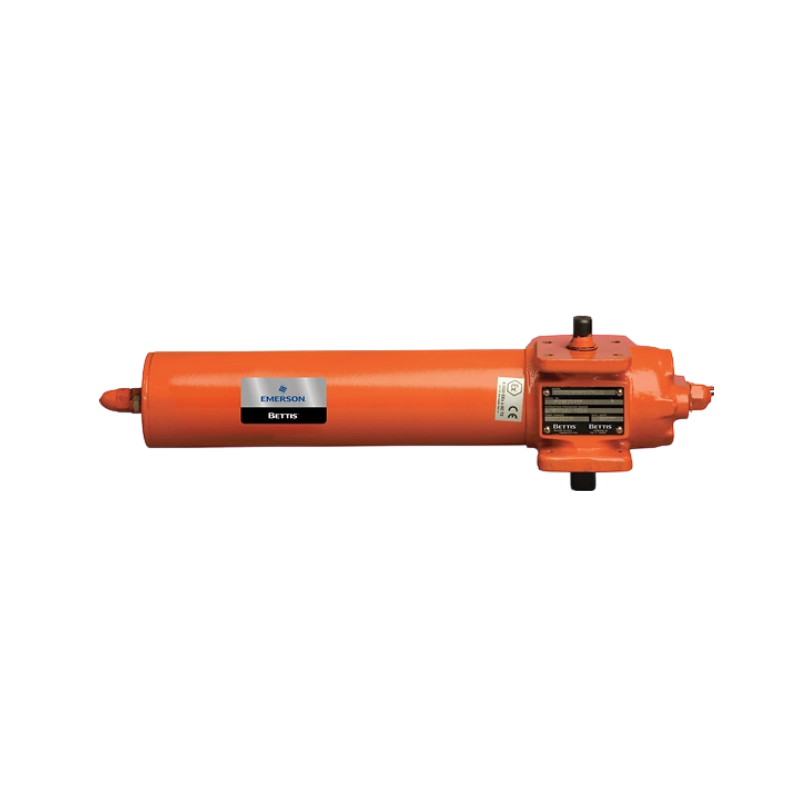

Bettis CBB-Series Scotch Yoke Pneumatic Valve Actuator
