Bettis GVO Linear Pneumatic Valve Actuator

The Bettis GVO-Series is a field proven linear valve actuator suitable for automating most types of rising stem valves in safety shutdown and control applications.

Online consultation

Details

Features

1.Automates most types of rising stem valves- slab, wedge, knife and expanding gate, globe, rising stem ball and dampers

2.Extended stroke for each model

3.Optional materials of construction for sour service

4.Options include limit switches, relays, solenoids, pressure pilots, dampeners and manual overrides

5.Travel adjustment on top and bottom makes sure the piston stops on the actuator not on the valve, protecting valve seat

6.Standard open pedestal design, closed pedestal is available on request

7.Hard chromium plated and polished stainless steel piston rod guarantees corrosion protection and minimal friction

Specifications

Power Source	Pneumatic
Product Type	Pneumatic Actuator
Actuation	Linear, Double-Acting
Certifications	ATEX, PED, SIL capable (CE)
Control Type	On/off
Valve Type	Slab, Wedge, Knife, Expanding Gate, Globe, Rising Stem Ball Valves, and Dampers
Operating Temperature	From -60 °C to 100 °C (From -76 °F to 212 °F)
Operating Pressure	12 barg (174 psi)
Thrust	Double-acting thrust up to 1600000 N (360000 lb), Spring ending thrust up to 450000 N (101000 lb), Spring starting thrust 540000 N (121000 lb)

Associated Products

Electric Actuators

XTE3000

M2CP

SCE300

TorqPlus

RTS Series (RTS FL, RTS FQ, RTS CL, RTS CM)

Keystone EPI2 Series

Pneumatic Actuators

G-Series

CBB-Series

CBA300 Series

RPE-Series

RPX-Series

M Series (Stainless Steel)

GVO Series

HD Series (Discontinued)

Hydraulic & Electro-Hydraulic Actuators

EHO (Standard, Smart)

BHH Series

BHHF Series

BL Series

BLF-BLFR Series

GS Series

PressureGuard

Gas-Hydraulic Scotch Yoke

Gas-Hydraulic Linear

GTD Series

Pictures show

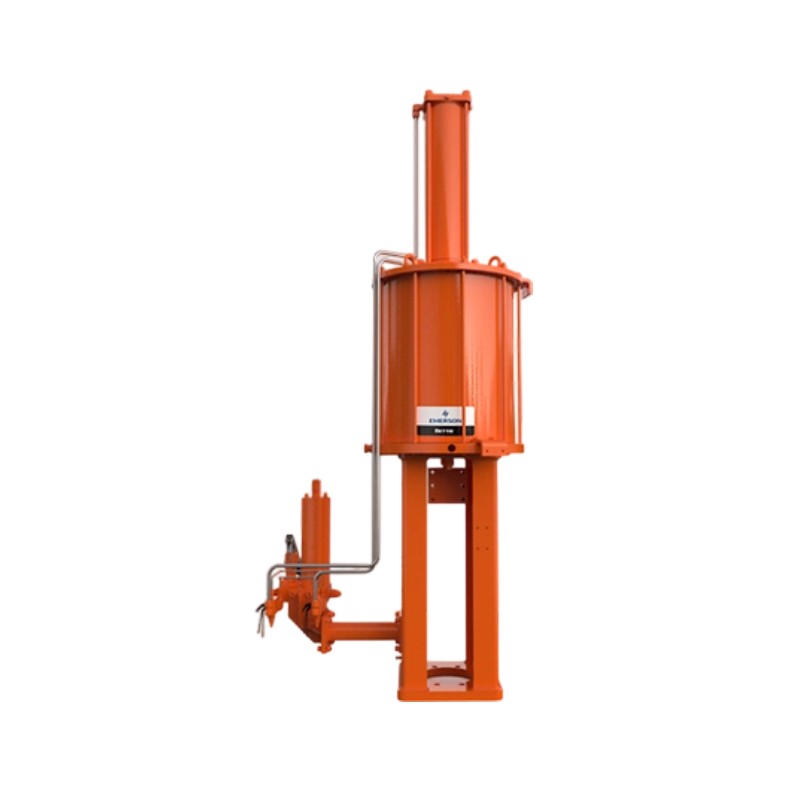

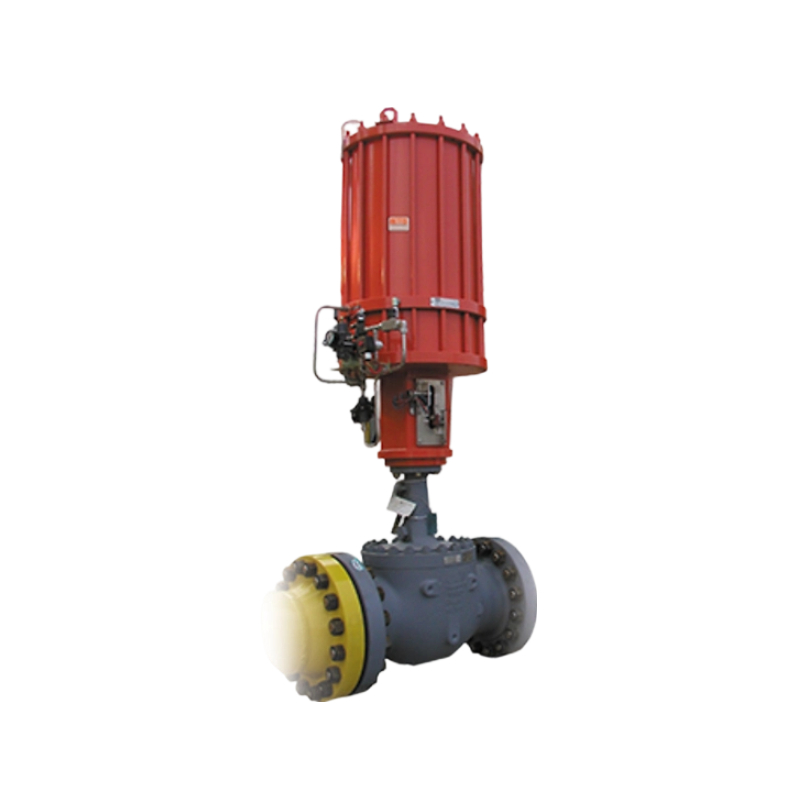

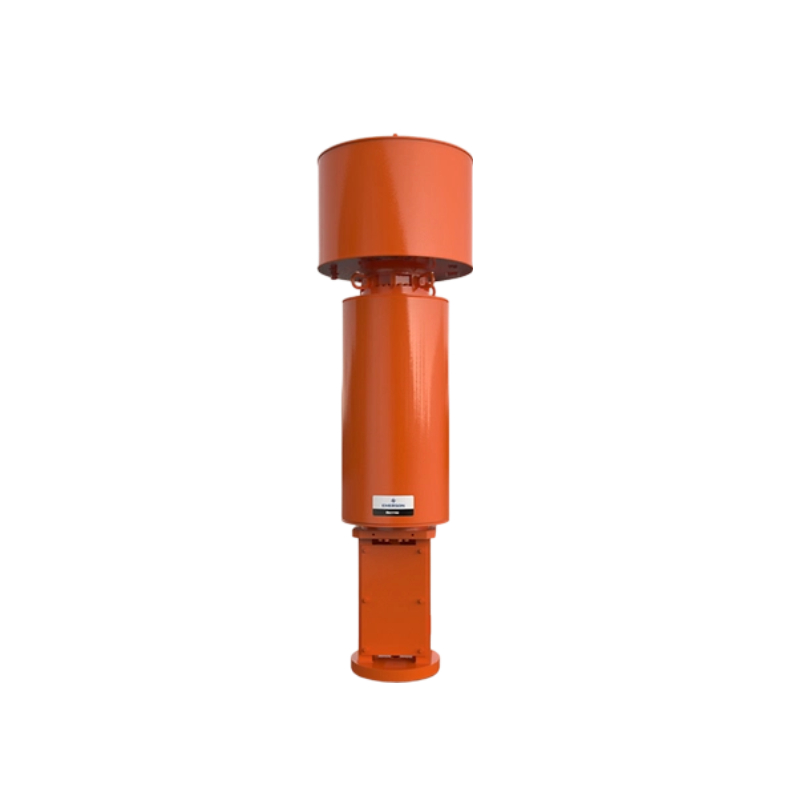

Bettis GVO Linear Pneumatic Valve Actuator
