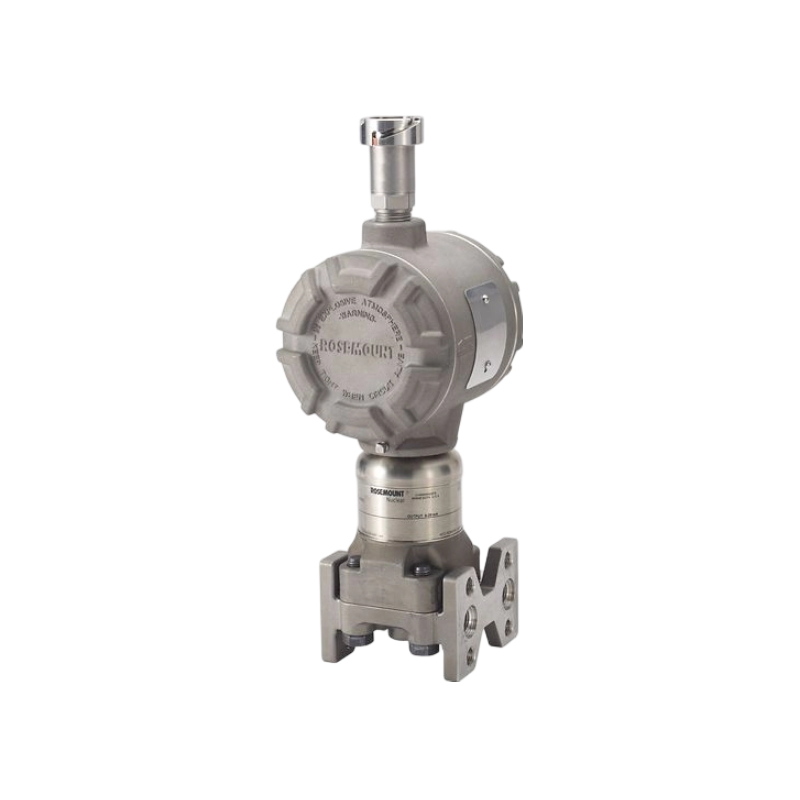

Rosemount 3154N Pressure Transmitter
The Rosemount 3154N Pressure Transmitter designed to withstand harsh accident environments and provide reliable performance over an extended service life. Qualified for IEEE applications, this transmitter offers stringent quality control during the manufacturing process, including traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing.
Features
1.Qualified per IEEE Std 323™-1974/1983/2003 and IEEE Std 344™-1975/1987/2004 for an industry-standard solution
2.Withstands radiation exposure of 112 Mrads TID gamma and seismic levels to 8.5g ZPA to meet process requirements
3.Durable design engineered to perform in steam temperatures of up to 435 °F (167 °C)
4.0.2% reference accuracy for reliable measurements
5.Quality control includes traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing
Specifications
Output Signal | 4-20 mA |
Rangedown | Up To 10:1 (5:1 for Range 1) |
Measurement Range | Up to 2000 psi (13.79 MPa) Differential, Up to 4000 psig (27.58 MPa) Gage, Up to 4000 psia (27.58 MPa) Absolute |
Housing Material | SST |
Process Wetted Material | 316L SST |
Seismic Rating | 8.5g ZPA Seismic |
Radiation Rating | 112 Mrad (1.12 MGy) TID Gamma Radiation |
Steam/Pressure Temperature | 435°F (224°C) Steam/Temperature |
Qualification Standard | IEEE Std 323™-1974/1983/2003IEEE Std 344™-1975/1987/2004 |
