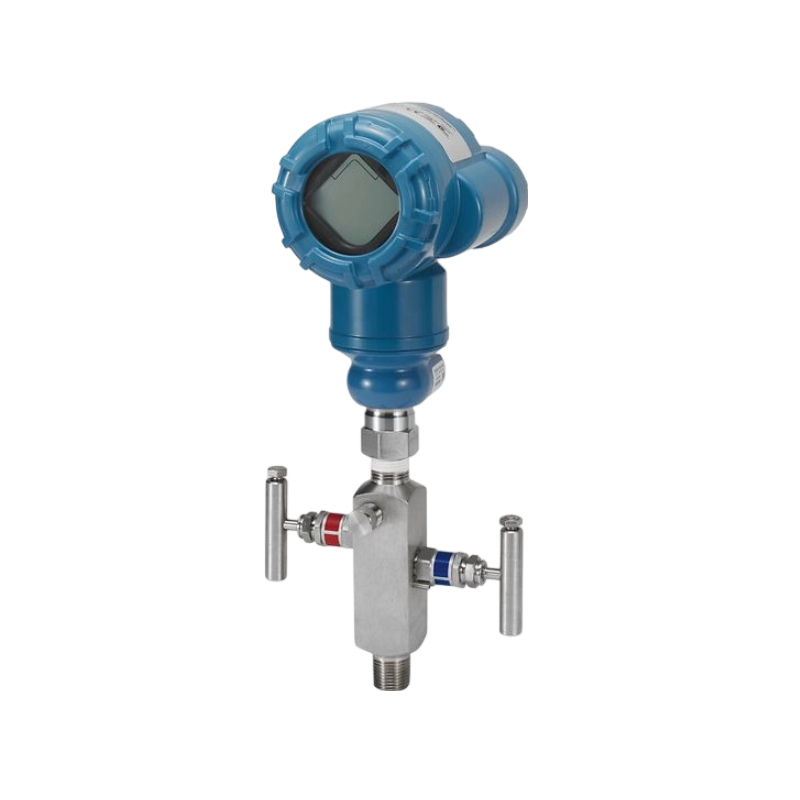

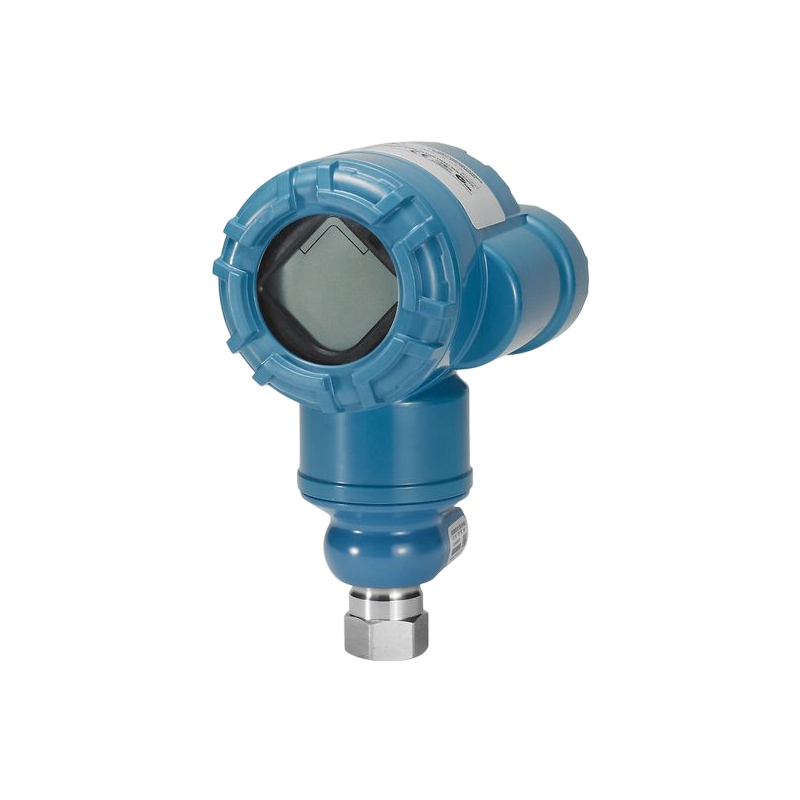

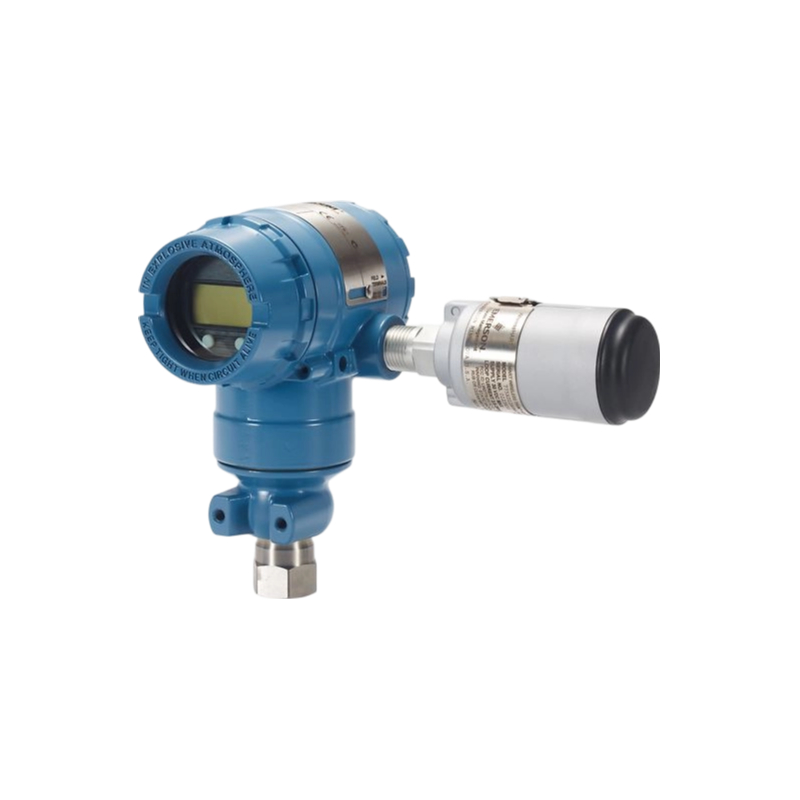

Rosemount 2051 Wireless In-Line Pressure Transmitter
Integrated with WirelessHART technology, the Rosemount 2051 Wireless In-Line Pressure Transmitter is a cost-effective solution for adding pressure measurement points. This transmitter is delivered fully assembled, so you can deploy instruments quickly, even in remote locations. With wireless capabilities, you can add measurement points easily, lowering installation and maintenance costs while improving productivity.
Features
1.WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
2.In-line gage and absolute pressure measurements support up to 10000 psi (689,47 bar) for pressure and level solutions
3.Delivered fully assembled to manifolds, diaphragm seals or primary flow elements for straightforward installation
4.SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
5.Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specifications
Warranty | Up to 5-year limited warranty |
Rangedown | Up To 100:1 |
Communication Protocol | WirelessHART® |
Measurement Range | Up to 10000 psig (689,47 bar) Gage, Up to 10000 psia (689,47 bar) Absolute |
Process Wetted Material | 316L SST, Alloy C-276 |
Diagnostics | Basic Diagnostics |
Certifications/Approvals | NSF, NACE®, hazardous location, see full specs for complete list of certifications |
Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Internal antenna (225 m) |
