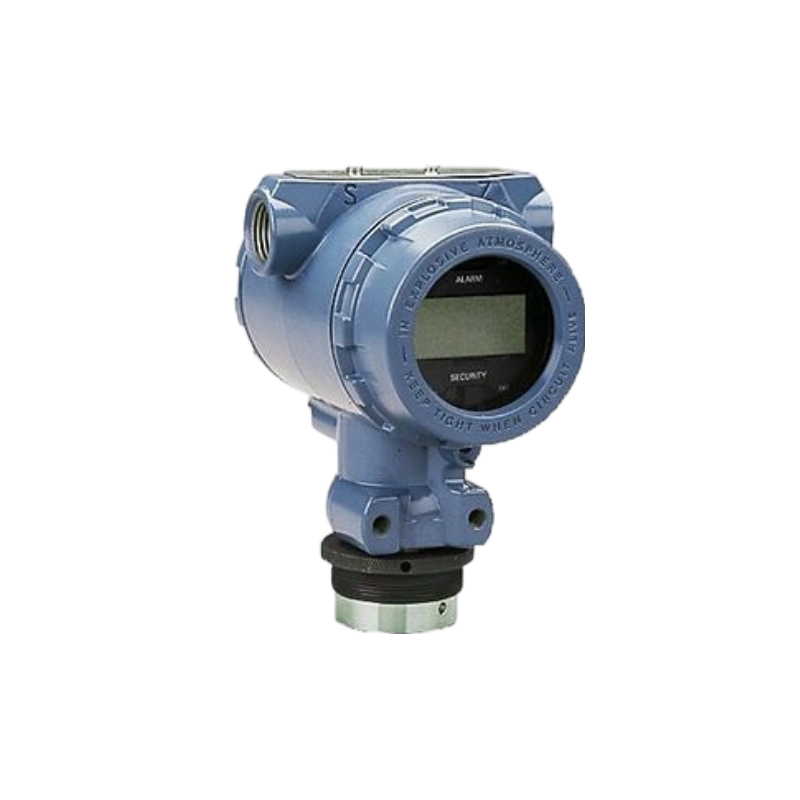

Rosemount 2090P Pulp and Paper Pressure Transmitter
With its compact size and rugged construction, the Rosemount 2090P Pulp and Paper Pressure Transmitter is ideal for the pulp and paper industries. This lightweight transmitter is engineered with a 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection. This transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities.
Features
1.1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available
2.Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility
3.Lightweight, compact design for easy installation
4.Fully configurable LCD displays process variable, percent of range and diagnostic message
5.Communicates via 4-20 mA HART® protocol for streamlined host integration
Specifications
Warranty | Up to 5-year limited warranty |
Rangedown | Up to 20:1 |
Communication Protocol | 4-20 mA HART® |
Measurement Range | Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute |
Process Wetted Material | 316L SST |
Diagnostics | Basic Diagnostics |
Certifications/Approvals | Hazardous location, see full specs for complete list of certifications |
