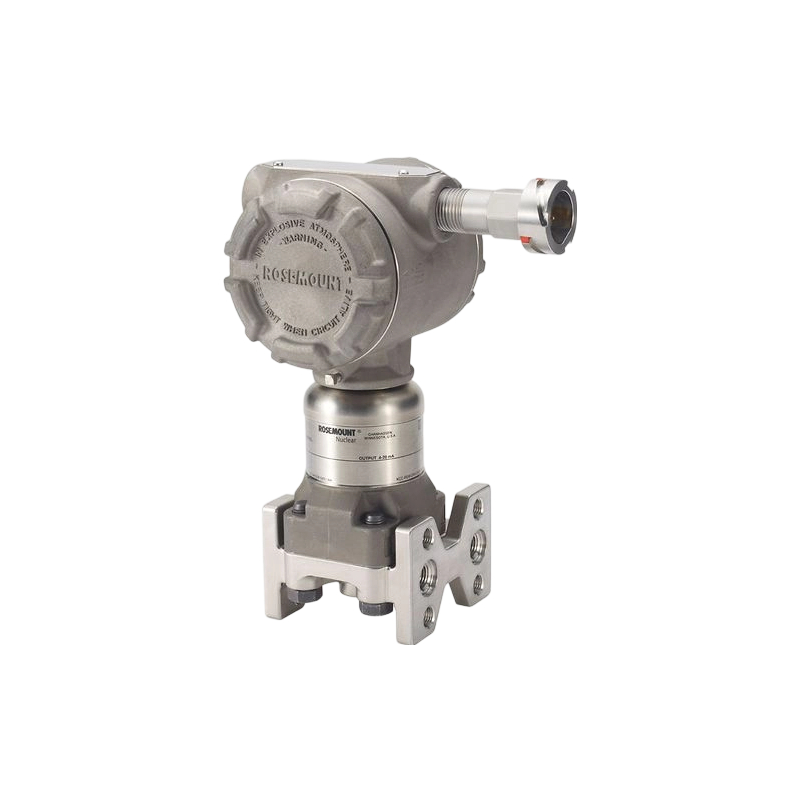

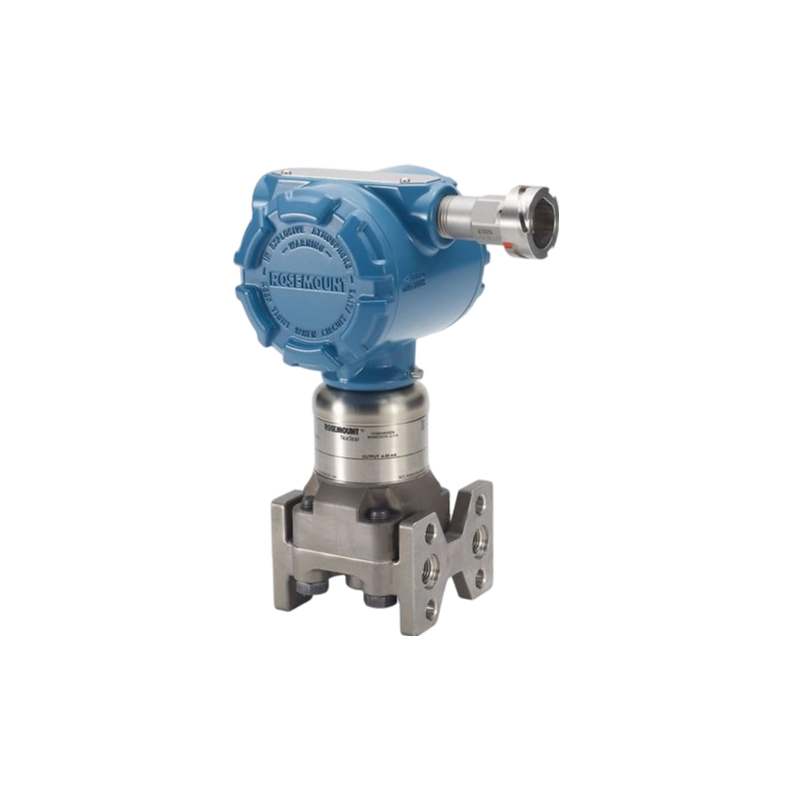

Rosemount 3152N Pressure Transmitter
Engineered for precision, the Rosemount 3152N Pressure Transmitter can provide reliable analog pressure measurements in applications over an extended service life. This transmitter is qualified per IEEE Std 323-1974/1983/2003 and IEEE Std 344-1975/1987/2004 to meet industry standards. This device also features stringent quality control during the manufacturing process, which includes traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing.
Features
1.Qualified per IEEE Std 323™-1974/1983/2003 and IEEE Std 344™-1975/1987/2004 for an industry-standard solution
2.Withstands extreme ambient conditions to 6.5 Mrads TID gamma and seismic levels to 8.5g ZPA
3.Engineered for steam pressure/temperature performance for improved safety
4.Provides 0.2% reference accuracy for reliable measurements
5.Quality control includes traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing
Specifications
Output Signal | 4-20 mA |
Rangedown | Up To 10:1 (5:1 for Range 1) |
Measurement Range | Up to 2000 psi (13.79 MPa) Differential, Up to 4000 psig (27.58 MPa) Gage, Up to 4000 psia (27.58 MPa) Absolute |
Housing Material | SST, Aluminum |
Process Wetted Material | 316L SST, Alloy C-276 |
Seismic Rating | 8.5g ZPA |
Radiation Rating | 6.5 Mrad (65 kGy) TID Gamma Radiation |
Steam/Pressure Temperature | 290°F (143.3°C) Steam/Temperature |
Qualification Standard | IEEE Std 323™-1974/1983/2003IEEE Std 344™-1975/1987/2004 |
