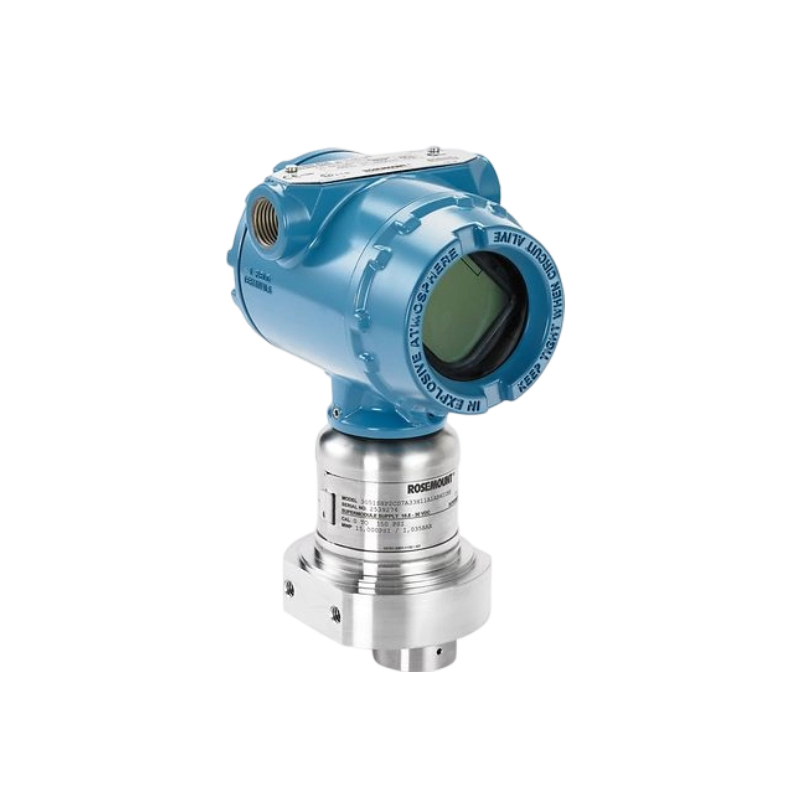

Rosemount 3051S High Static DP Transmitter
Engineered to withstand static pressures of up to 15000 psi (1034 bar), the Rosemount 3051S High Static DP Transmitter incorporates the compact, SuperModule design for harsh production conditions. A high-performance solution, this transmitter provides differential pressure and temperature measurements and utilizes the Rosemount Coplanar technology for reduced installation weight. This transmitter is designed with a coned and threaded direct connection to withstand high static pressure conditions. Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
1.SuperModule design withstands static lines pressures of up to 15000 psi (1,034 bar)
2.Multivariable transmitter capable of differential pressure and temperature measurements
3.Innovative, compact, coplanar platform reduces up to 60% of the weight versus today’s high pressure transmitters
4.All-welded, hermetic design of the SuperModule platform resists overpressure and line pressure effects to ensure 0.055% accuracy
5.Robust design, backed by 10-year stability, withstands harsh production environments
6.Integrates seamlessly with 4-20 mA HART, WirelessHART, FOUNDATION fieldbus protocols for application flexibility
7.Advanced diagnostics offer comprehensive diagnostic coverage from the process to the transmitter to the host
8.SIL 2/3 certified to IEC 61508 by an 3rd party and prior-use certificate of FMEDA data for safety installations
Specifications
Warranty | Up to 15-year limited warranty |
Rangedown | Up to 150:1 |
Communication Protocol | 4-20 mA HART, WirelessHART, FOUNDATION Fieldbus |
Measurement Range | Up to 150 psi (10.34 bar) Differential with maximum working pressure up to 15,000 psi (1034 bar) |
Process Wetted Material | Alloy C-276 |
Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications |
