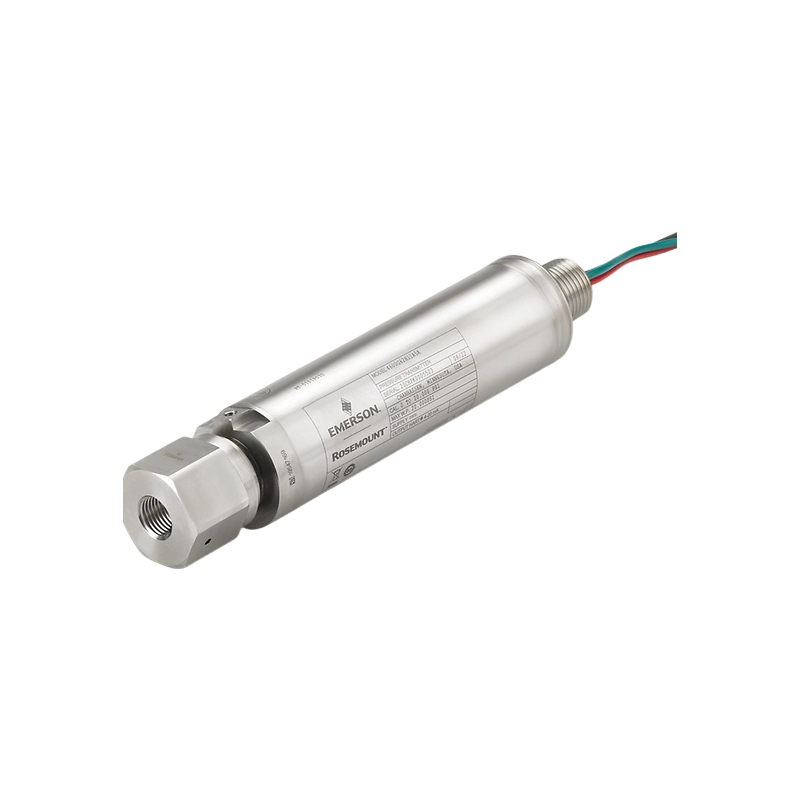

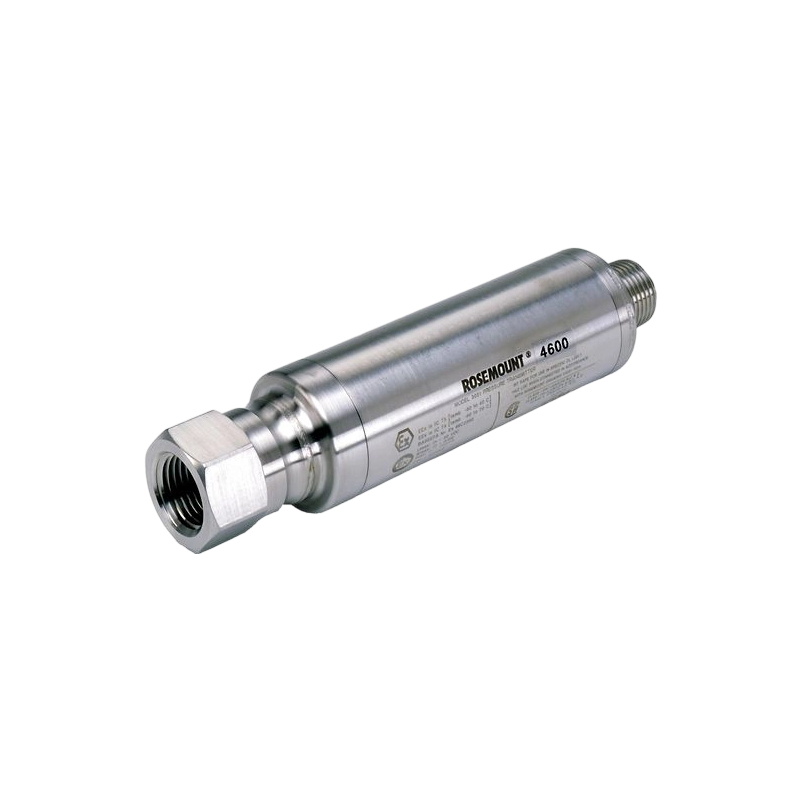

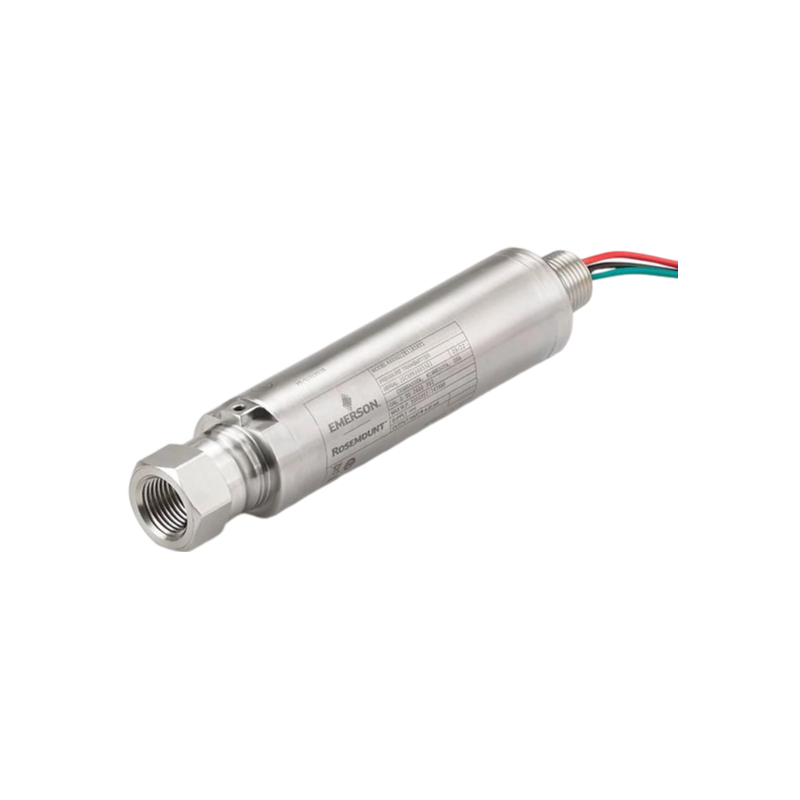

Rosemount 4600 Pressure Transmitter
Ideal for panel mount applications, the Rosemount 4600 Oil and Gas Panel Pressure Transmitter delivers reliable, industry-standard performance. This pressure transmitter is capable of measuring high pressure ratings of up to 20000 psi (1379 bar) and offers a rangedown of up to 40:1 for increased flexibility. Additionally, this device features a compact, lightweight design with an all-welded, stainless steel construction, providing a stable and robust solution that withstands harsh environments.
Features
1.Measures high pressure ratings of up to 20000 psi (1379 bar) for a stable and dependable solution
2.Compact, lightweight design is ideal for panel mount applications
3.All-welded stainless steel construction maximizes reliability in harsh environments
4.Up to 40:1 rangeability increases application flexibility
5.Installed stability of ± 0.25% of URL for up to 5 years minimizes maintenance costs and improves efficiency
Specifications
Warranty | Up to 5-year limited warranty |
Rangedown | Up to 40:1 |
Communication Protocol | 4-20 mA HART |
Measurement Range | Up to 20,000 psig (1379 bar) sealed gage, Up to 20,000 psia (1379 bar) absolute |
Process Wetted Material | 316L SST, Alloy C-276 |
Diagnostics | Basic Diagnostics |
Certifications/Approvals | NACE, hazardous location, see full specs for complete list of certifications |
