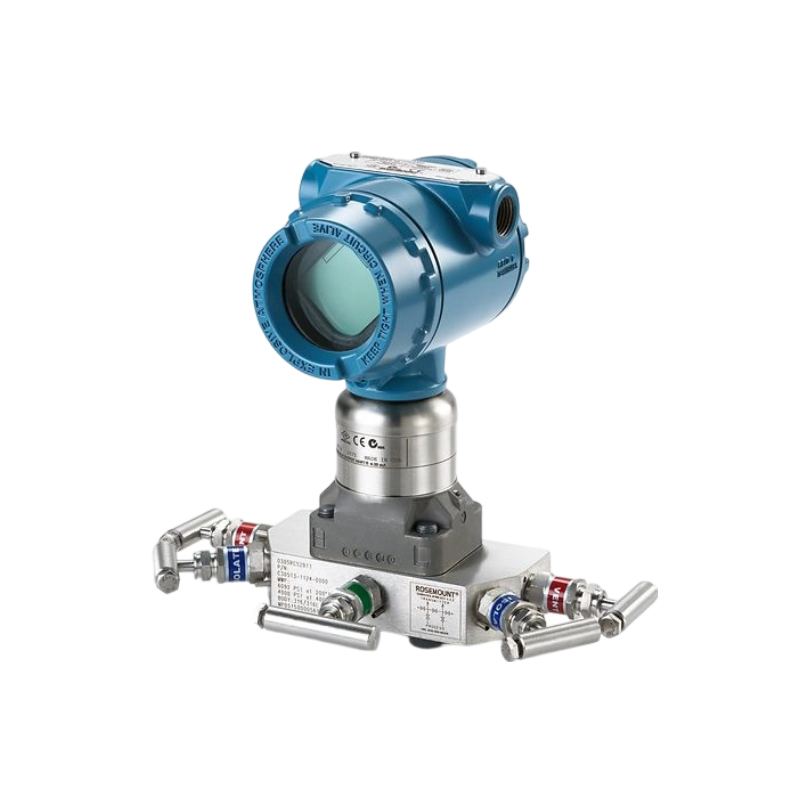

Rosemount 3051S Differential Pressure Flow Transmitter
Combined with advanced primary flow elements, the Rosemount 3051S Differential Pressure Flow Transmitter provides a scalable, high-performance solution for flow measurement applications. This flow transmitter seamlessly integrates with a variety of primary elements that can come pre-assembled to the device. With Ultra and Ultra for Flow performance classes, this transmitter features 15-year stability and 15-year limited warranty for consistent and reliable performance.
Features
1.Primary elements can be pre-assembled to transmitter for an optimized, ready-to-install DP flow solution
2.Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation Best-in-class, scalable architecture enhances functionality and process connections
3.All-welded hermetic SST SuperModule™ platform delivers 15-year stability and 15-year limited warranty
4.Ultra for Flow performance classes enables up to Up to ±0.04% of reading
5.Available with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
6.SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
7.Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
8.Remote display offers easy access to device display and loop connection
9.200:1 rangedown produce reliable measurements and application flexibility
Specifications
Warranty | Up to 15-year limited warranty |
Rangedown | 200:1 rangedown enables application flexibility |
Measurement Range | Up to 2000 psi (137,89 bar) differential |
Output | Differential pressure, scaled variable |
Communication Protocol | 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus |
Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
