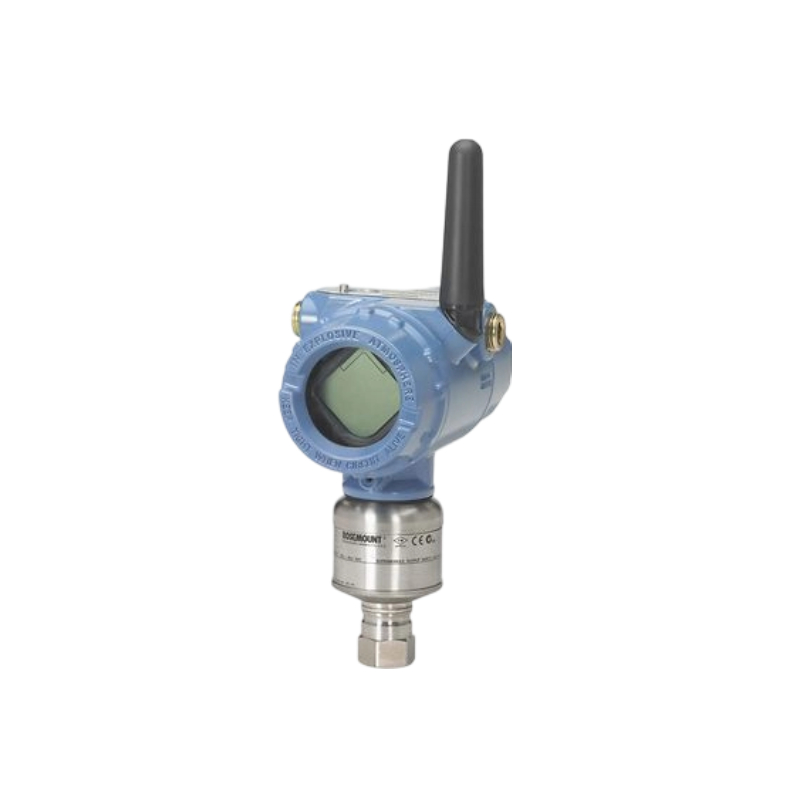

Rosemount 3051S Wireless In-Line Pressure Transmitter
The Rosemount 3051S Wireless In-line Pressure Transmitter is a reliable solution that optimizes your gage and absolute pressure measurement performance. This advanced, scalable SuperModule platform minimizes process variability and reduces maintenance while automating the process with the secure and cost-effective WirelessHART technology. Engineered for direct threaded connection, manifold or seal system solutions, this in-line pressure transmitter offers steady measurement and quick installation. Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
1.No-equal, scalable architecture optimizes performance, functionality and process connections
2.WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
3.Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation
4.Ultra and Classic Performance classes provide accuracy up to 0.025% of span
5.15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility
6.Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar)
7.15-year warranty for worry-free operation
8.SmartPower module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
9.Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specifications
Warranty | Up to 15-year limited warranty |
Rangedown | Up to 200:1 |
Communication Protocol | WirelessHART® |
Measurement Range | Up to 10000 psi (689,47 bar) Gage, Up to 10000 psia (689,47 bar) Absolute |
Process Wetted Material | 316L SST, Alloy C-276 |
Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | NSF, NACE, hazardous location, see full specs for complete list of certifications |
Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
