Rosemount 3051S In-Line Pressure Transmitter
Optimize performance with the Rosemount 3051S In-line Pressure Transmitter, a high-performance solution for pressure measurement. This scalable SuperModule platform delivers excellent gage and absolute pressure measurement performance, as it minimizes process variability and reduces maintenance. Engineered for direct threaded connection, manifold or seal system solutions, this in-line pressure transmitter connects to the process, making installation quick and cost-effective. Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
1.No-equal, scalable architecture optimizes performance, functionality and process connections
2.Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation
3.Ultra and Classic Performance class enhances process control
4.15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility
5.Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar)
6.Seamless integration with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application adaptability
7.SIL 2/3 certified to IEC 61508 by a 3rd party and prior-use certificate of FMEDA data for safety installations
8.Advanced diagnostics offer diagnostic coverage to detect electrical loop issues and abnormal process conditions
9.Remote display offers easy access to device display and loop connection
Specifications
Warranty | Up to 15-year limited warranty |
Rangedown | Up to 200:1 |
Communication Protocol | 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus |
Measurement Range | Up to 10000 psi (689,47 bar) Gage, Up to 10000 psia (689,47 bar) Absolute |
Process Wetted Material | 316L SST, Alloy C-276 |
Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
Associated Products
Relevant models of pressure transmitter
Rosemount 1144A | Rosemount 1144G | Rosemount 1151DP |
Rosemount 1151GP | Rosemount 1151HP | Rosemount 1151LT |
Rosemount 2051 | Rosemount 2051C | Rosemount 2051T |
Rosemount 2088 | Rosemount 2088A | Rosemount 2088G |
Rosemount 2090F | Rosemount 2090P | Rosemount 3051 |
Rosemount 3051C | Rosemount 3051CA | Rosemount 3051CD |
Rosemount 3051CG | Rosemount 3051L | Rosemount 3051S |
Rosemount 3051S Coplanar | Rosemount 3051L MultiVariable | Rosemount 3051SFA |
Rosemount 3051SFC | Rosemount 3051SHP | Rosemount 3051HT |
Rosemount 4051S | Rosemount 4088 | Rosemount 4088 MultiVariable |
Rosemount 4600 | 3051GP2A2B21AB4M5HR5 | 3051TG3A2B21AS1KBQ4M5HR7 |
3144PD6A2NAM5C4Q4HR7 | 3051GP3A2B21AB4M5Q4HR5 | 644HAKBJ2M5Q4 |
644HAK5J6M5 | 2051TG2A2B21AB4M5E5P1 |

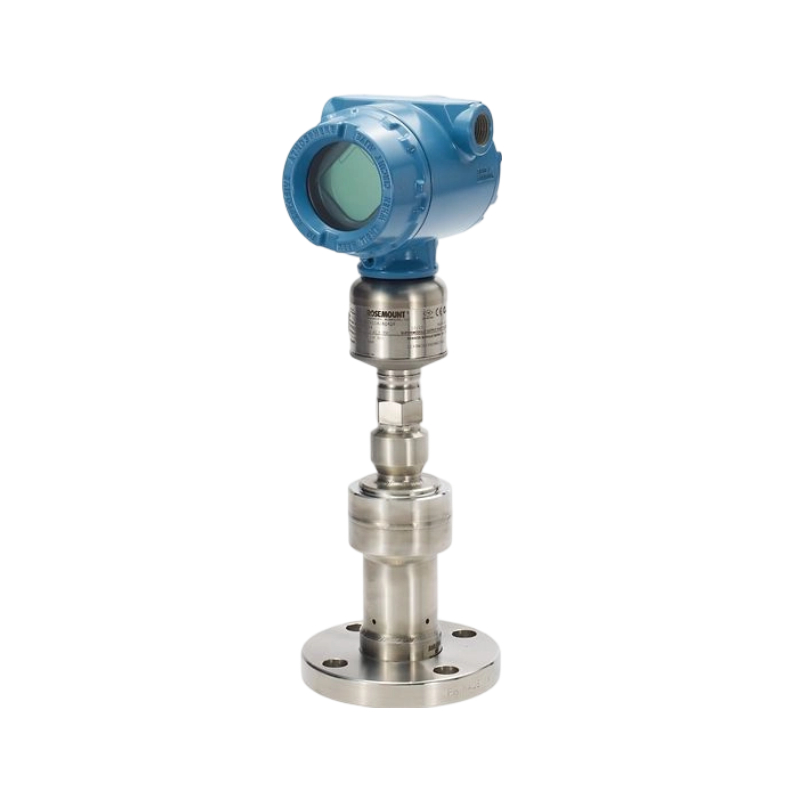

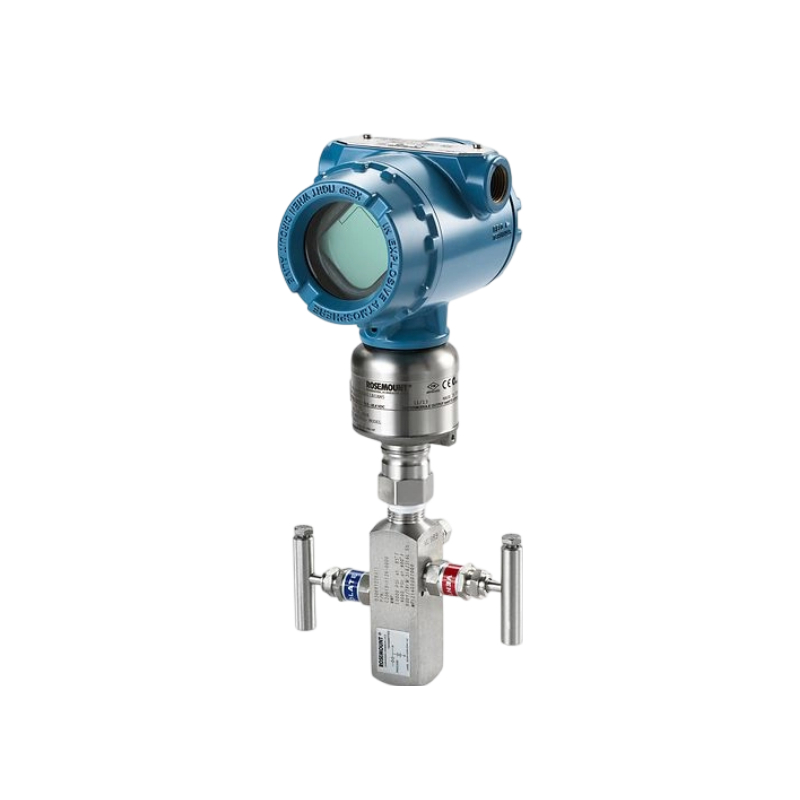

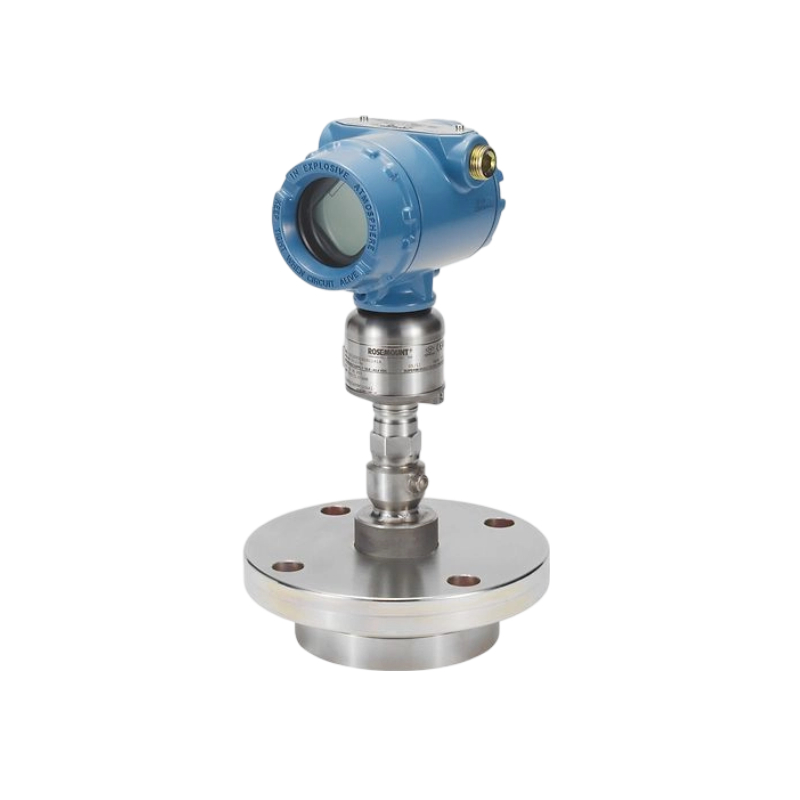

Pictures show
