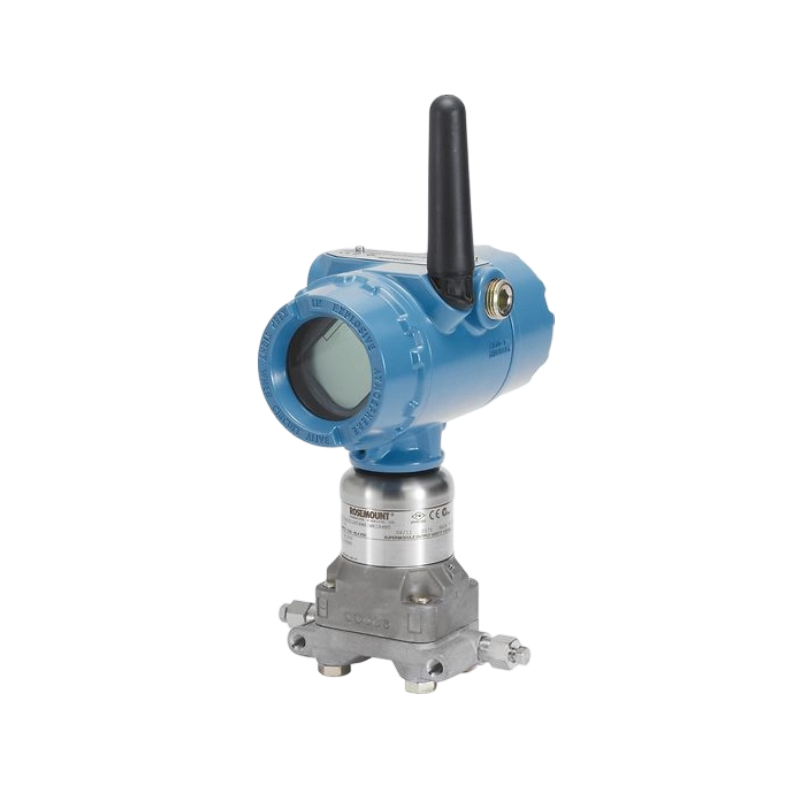

Rosemount 3051S Wireless Differential Pressure Flow Transmitter
The Rosemount 3051S Wireless Differential Pressure Flow Transmitter combines scalable technology and advanced primary flow elements with the security and data reliability of a WirelessHART network. A high-performance solution, this DP flow transmitter seamlessly integrates with a variety of primary elements that can be pre-assembled to the device. As a wireless transmitter, installation is straightforward, delivering reliable, high data reliability without the cost of wiring.
Features
1.WirelessHART technology is secure, cost-effective and delivers >99% data reliability
2.Primary elements can be pre-assembled to transmitter for an optimized, ready-to-install DP flow solution
3.Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
4.All-welded hermetic SST SuperModule™ platform delivers 15-year stability and 15-year limited warranty
5.Ultra and Ultra for Flow performance classes enables up to 0.025% of span accuracy
6.200:1 rangedown produce reliable measurements and wide application flexibility
7.SmartPower module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
8.Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specifications
Warranty | Up to 15-year limited warranty |
Rangedown | Up to 200:1 |
Measurement Range | Up to 2000 psi (137,89 bar) differential |
Output | Differential pressure, scaled variable |
Communication Protocol | WirelessHART® |
Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | NSF, NACE, hazardous location, see full specs for complete list of certifications |
Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
