Features

1.In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure or level solutions

2.Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations

3.Complete pressure or level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

4.10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

5.Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool

6.The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions

7.Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime

8.Quick service buttons offer built-in configuration buttons for streamlined commissioning

9.SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

10.Wireless Features

• WirelessHART technology is secure and cost-effective and delivers >99% data reliability

• SmartPower module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring

Specifications

Associated Products

Relevant models of pressure transmitter

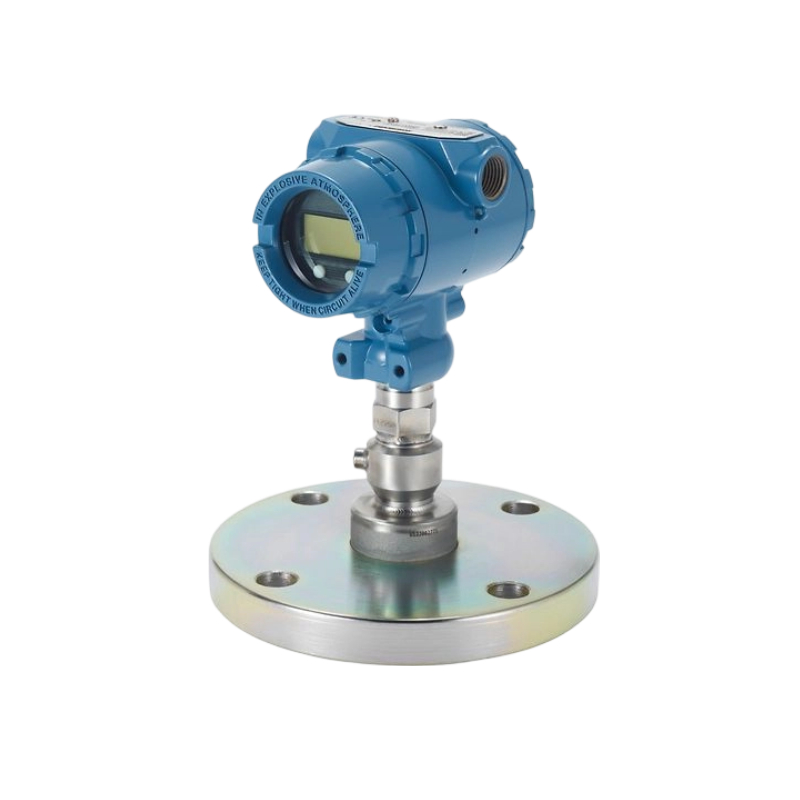

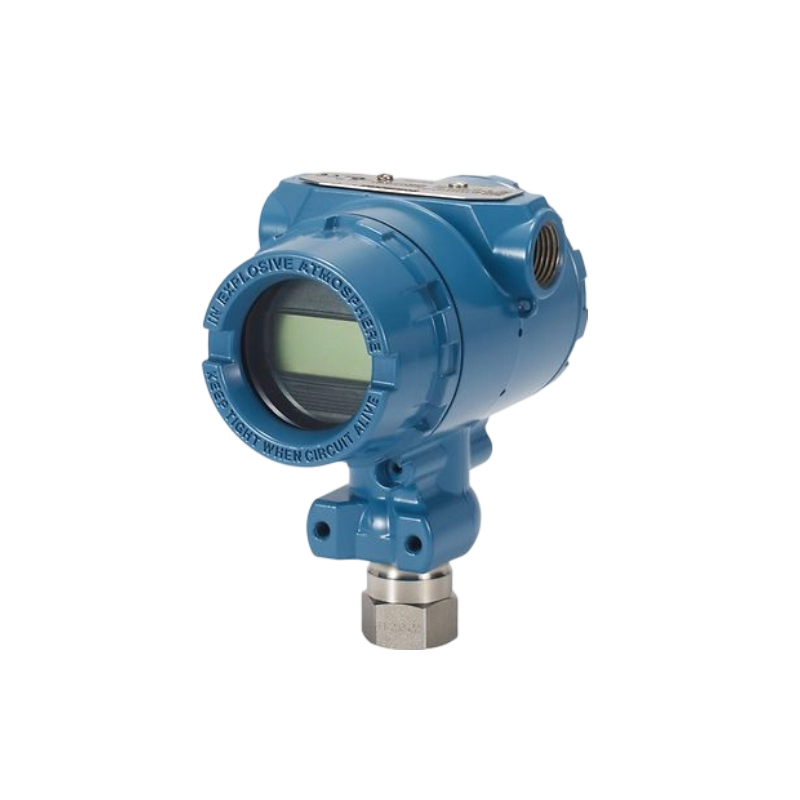

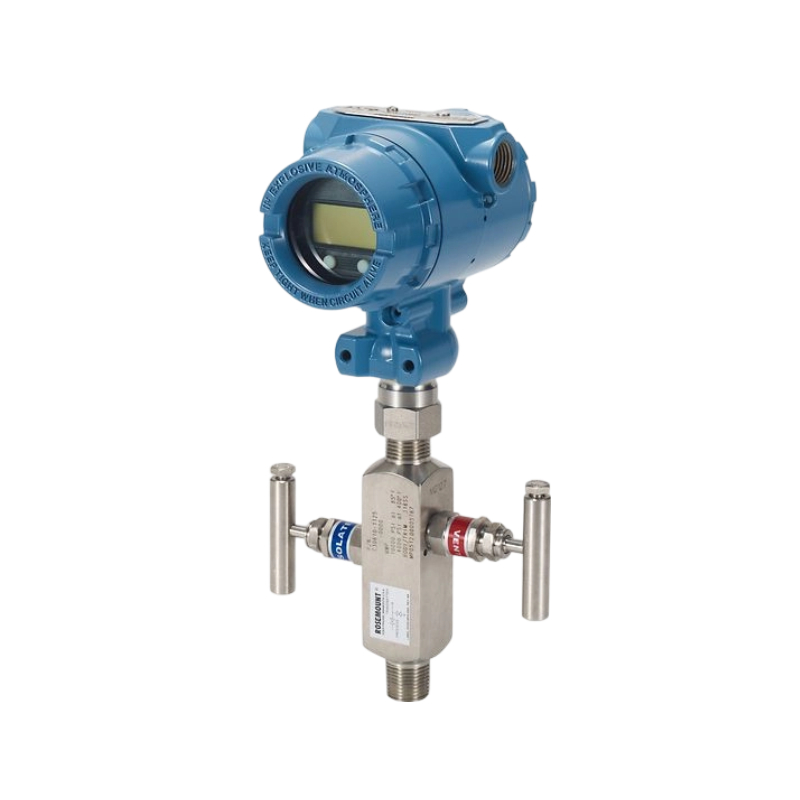

Pictures show
