Rosemount 3051S Coplanar Pressure Transmitter
The Rosemount 3051S Coplanar Pressure Transmitter is designed with the patented Coplanar technology and is the no-equal solution for pressure, flow and level measurements. This scalable platform, available in both wired and WirelessHART communication protocols, seamlessly integrates with manifolds, primary elements and seal solutions and optimizes performance for accurate differential, gage and absolute pressure measurements. With the SuperModule platform, this transmitter resists overpressure and line pressure effects to maintain unmatched performance.
Features
1.Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
2.Best-in-class, scalable architecture enhances performance, functionality and process connections
3.Transmitter arrives fully assembled and leak tested for simple installation and maintenance
4.All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
5.Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty
6.200:1 rangedown produce reliable measurements and wide application flexibility
7.Integrates seamlessly with 4-20 mA HART™ , WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
8.SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
9.SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
10.Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
11.Remote display and interface offers easy access to process and device information
12.Wireless Features
WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specifications
Warranty | Up to 15-year limited warranty |
Rangedown | Up to 200:1 |
Communication Protocol | 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus |
Measurement Range | Up to 2000 psi (137,89 bar) Differential, Up to 2000 psig (137,89 bar) Gage, Up to 4000 psia (275,79 bar) Absolute |
Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
Wireless Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
Associated Products
Relevant models of pressure transmitter
Rosemount 1144A | Rosemount 1144G | Rosemount 1151DP |
Rosemount 1151GP | Rosemount 1151HP | Rosemount 1151LT |
Rosemount 2051 | Rosemount 2051C | Rosemount 2051T |
Rosemount 2088 | Rosemount 2088A | Rosemount 2088G |
Rosemount 2090F | Rosemount 2090P | Rosemount 3051 |
Rosemount 3051C | Rosemount 3051CA | Rosemount 3051CD |
Rosemount 3051CG | Rosemount 3051L | Rosemount 3051S |
Rosemount 3051S Coplanar | Rosemount 3051L MultiVariable | Rosemount 3051SFA |
Rosemount 3051SFC | Rosemount 3051SHP | Rosemount 3051HT |
Rosemount 4051S | Rosemount 4088 | Rosemount 4088 MultiVariable |
Rosemount 4600 | 3051GP2A2B21AB4M5HR5 | 3051TG3A2B21AS1KBQ4M5HR7 |
3144PD6A2NAM5C4Q4HR7 | 3051GP3A2B21AB4M5Q4HR5 | 644HAKBJ2M5Q4 |
644HAK5J6M5 | 2051TG2A2B21AB4M5E5P1 |

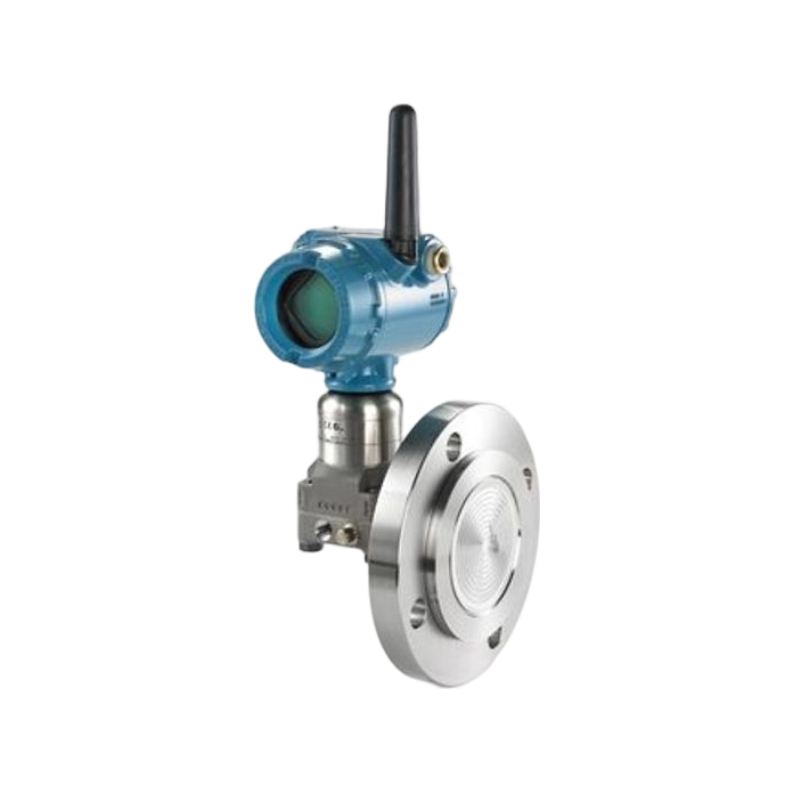

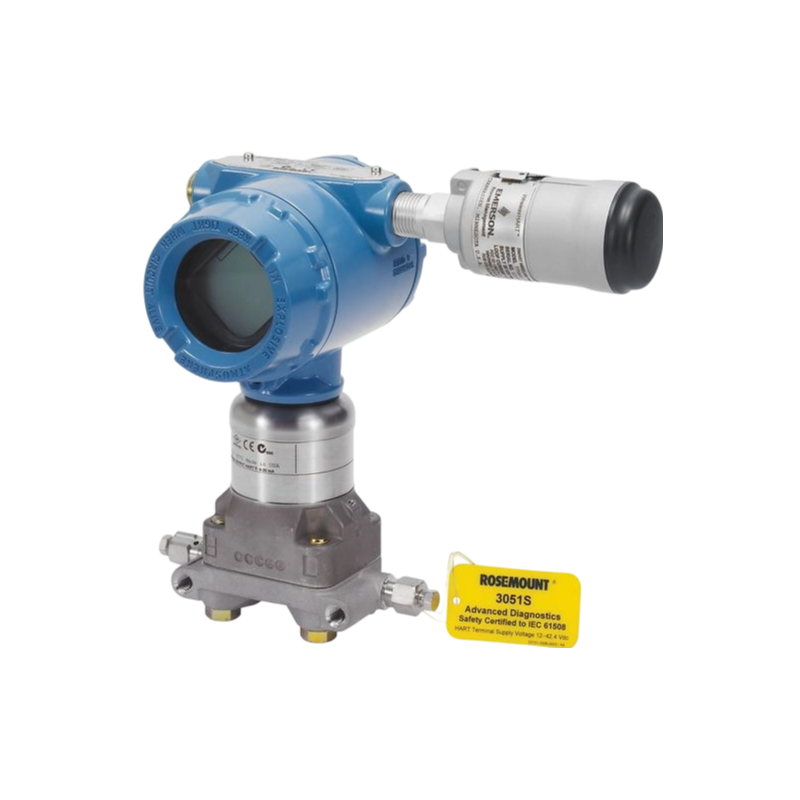

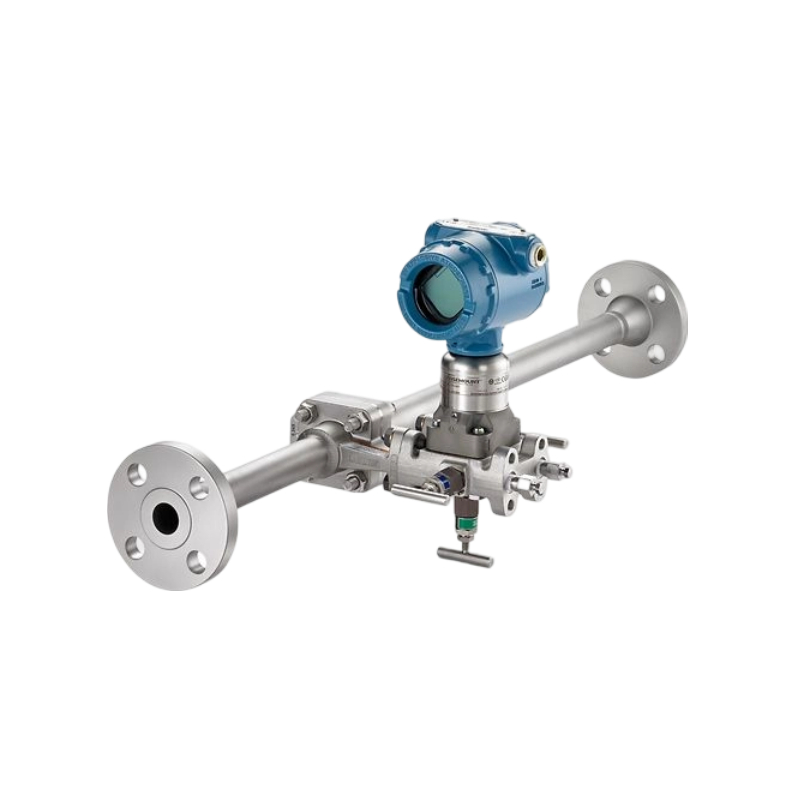

Pictures show
