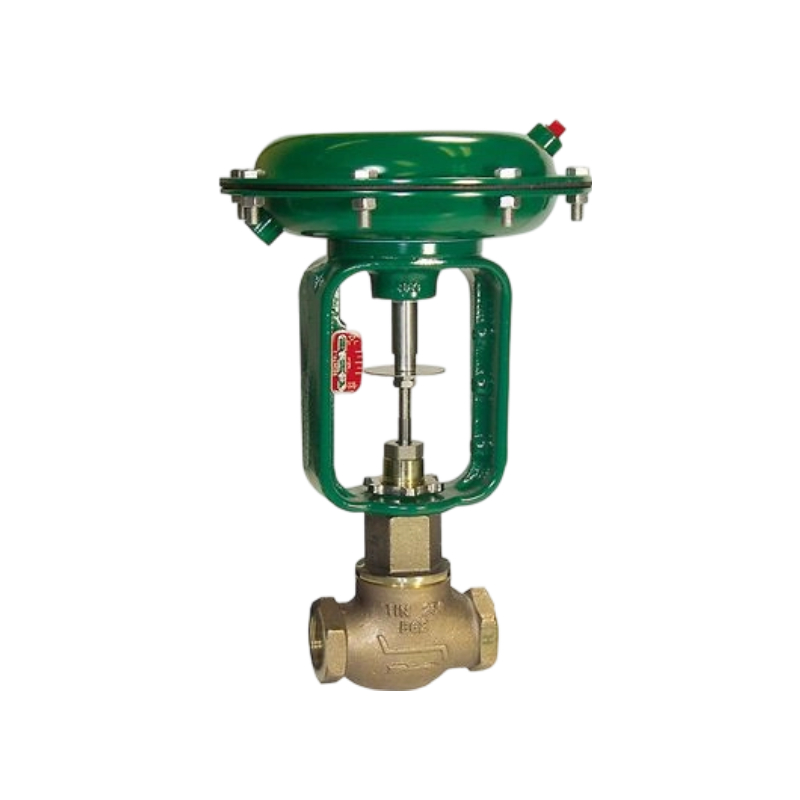

Fisher Baumann 24000 Bronze Control Valve

The Fisher Baumann 24000 control valve is intended for general utility service in pressure, flow, and temperature control applications. This control valve exhibits low hysteresis and deadband, good control characteristics, tight shutoff, rugged construction, high performance packing, and easy maintainability. These attributes translate into reduced maintenance costs, reduced process variability, and increased process availability, resulting in lower long-term operating costs.

Online consultation

Details

Features

1.Compact and light weight design reduces installed piping costs.

2.Features high quality S31600 austenitic stainless steel trim materials.

3.S41600 stainless steel trim is available.

4.Dual plug and stem guiding provides increased stability during plug travel.

5.Multiple trim capacity reductions are available to meet changing process requirements.

6.Fisher FIELDVUE™ digital valve controller is available for remote calibration and diagnostics

Specifications

Certifications	PED, CUTR, ATEX, CRN
Critical Service	General Service
Flow Characteristics	Equal Percentage, Linear
Material	Bronze
Operating Temperature	Standard Temperature
Pressure Class	ASME CL250
Process Connection Type	Threaded
Shutoff Class	Class IV (FCI 70-2), Class VI (FCI 70-2)
Valve Size	NPS 1/2, NPS 3/4, NPS 1, NPS 1-1/2, NPS 2
Valve Size Standard	NPS
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
