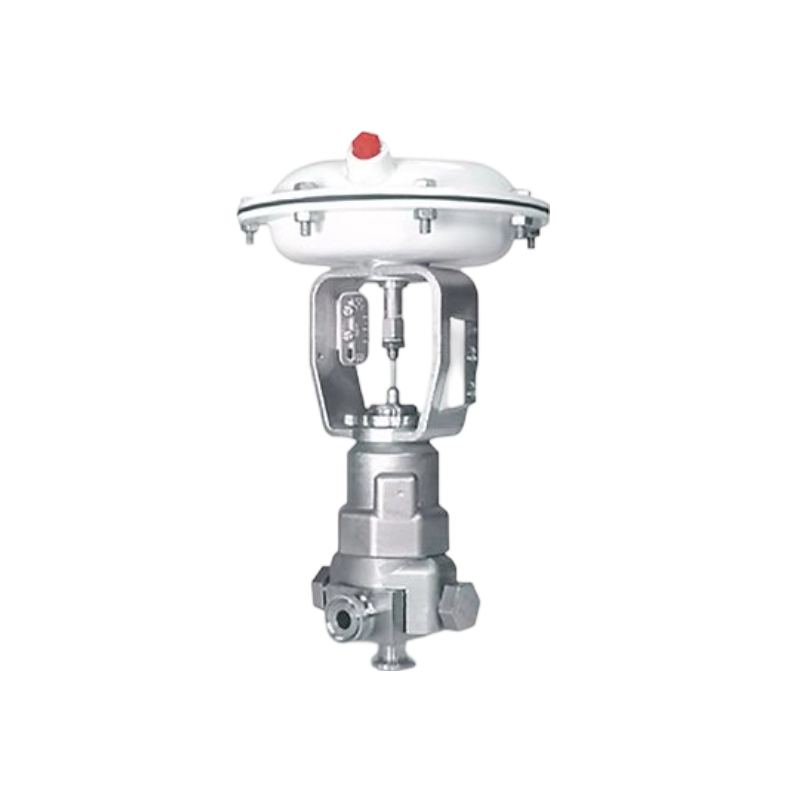

Baumann 83000 Sanitary Angle Control Valve

The Baumann 83000 sanitary control valve is excellent for the control of high purity fluids or gaseous media. A low-friction force amplification mechanism, comprised of a roller bearing linkage, produces high-positioning resolution suitable for direct operation from remote I/P signal converters.

Online consultation

Details

Features

1.Compact and light weight design reduces installed piping costs.

2.NPS 1/2 tri-clamp end connections standard with optional welded connections.

3.Electropolished wetted interior finished to 30 Ra microinch (20 Ra microinch optional).

4.Self-draining designed for clean-in-place (CIP) and sanitize-in-place (SIP).

5.Closure diaphragm is polished 316 stainless steel; quick-disconnect bonnet aids closure diaphragm replacement.

6.Elastomer seals meet FDA and USP CLVI requirements.

Specifications

Certifications	3A, CRN, CUTR, PED
Critical Service	Low Flow, General Service, Sanitary
Flow Characteristics	Special Characterizations, Modified Equal Percentage
Material	Stainless
Operating Temperature	Standard Temperature, High Temperature
Pressure Class	275 psi CWP
Process Connection Type	Tri-Clamp
Shutoff Class	Class IV (FCI 70-2)
Valve Size	NPS 1/2
Valve Size Standard	NPS, DN
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
