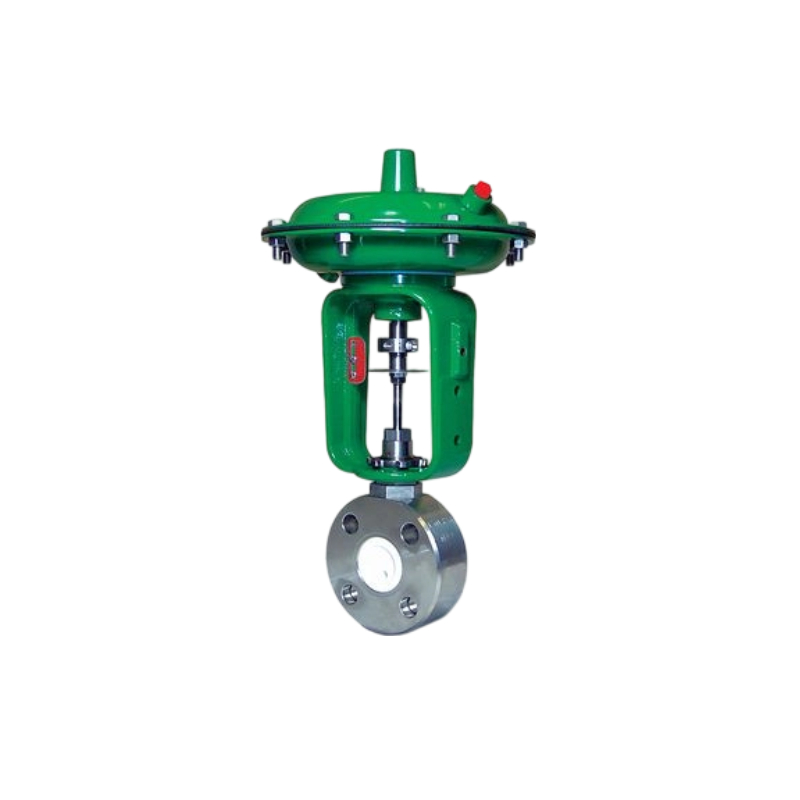

Fisher Baumann 26000 PTFE Lined Control Valve

The Fisher Baumann 26000 valve is a specialized corrosion-resistant control valve featuring a flangeless wafer valve body and powerful multi-spring diaphragm actuator. A solid corrosion-resistant R05200 Tantalum or N10276 nickel alloy valve plug and pressure-assisted PTFE seat combine for a wide control range making the 26000 series suitable for pH control applications. Top entry trim provides ease of servicing and durable operating life.

Online consultation

Details

Features

1.Wide control range with high rangeability.

2.Solid R05200 tantalum or N10276 nickel alloy valve plug.

3.S31600/S31603 stainless steel valve housing with PTFE body interior.

4.Pressure-assisted seating, up to Class VI shutoff.

5.The combination of primary and secondary valve stem packing ensures process retention.

6.Flangeless body construction, unique thru-hole wafer design for installation between CL150 and 300 and PN 10 through 25 RF or FF line flanges.

7.PTFE encapsulated line flange gaskets (included) permit valve installation between plastic lined slip-on mating flanges.

Specifications

Parameter Category	Details
Certifications	CRN, CUTR, PED
Critical Service	Low Flow, Corrosive, General Service
Flow Characteristics	Special Characterizations, Modified Equal Percentage
Material	Stainless (PTFE Lined)
Operating Temperature	Standard Temperature, High Temperature
Pressure Class	150 psi CWP, 10.3 bar CWP
Process Connection Type	Flangeless
Shutoff Class	Class IV (FCI 70-2), Class VI (FCI 70-2)
Valve Size	NPS 1, DN 25
Valve Size Standard	NPS, DN
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
