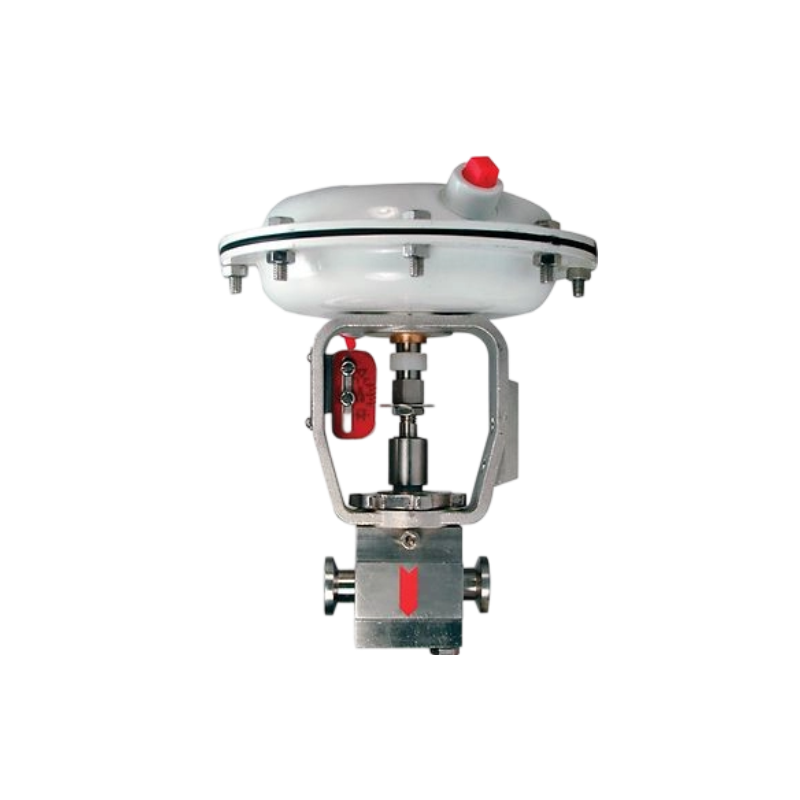

Baumann 87000 Flexsleev Sanitary Control Valve

The Baumann 87000 control valve is excellent for throttling high purity liquid or gaseous media commonly found in the food and beverage, pharmaceutical, film, and biotechnology industries. This valve is suitable for repeated steam sterilization cycles with 2.4 bar (35 psi) maximum steam pressures.

Online consultation

Details

Features

1.Unique flow pattern allows for self draining in both vertical and horizontal pipelines.

2.Streamlined low shear flow contours make it ideal for sensitive biomedia.

3.Flow area between tubing O.D. and body seating is suitable for fine particulant media.

4.Bolting method assists with ease of body disassembly and reassembly.

5.Epoxy powder-coated actuator with stainless steel yoke and fasteners for corrosion resistance.

Specifications

Parameter Category	Details
Certifications	CRN, CUTR, PED
Critical Service	Low Flow, General Service, Sanitary
Flow Characteristics	Special Characterizations, Modified Equal Percentage
Material	Stainless
Operating Temperature	Standard Temperature, High Temperature
Pressure Class	150 psi
Process Connection Type	Tri-Clamp
Shutoff Class	Class VI (FCI 70-2)
Valve Size	NPS 1/2
Valve Size Standard	NPS, DN
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
