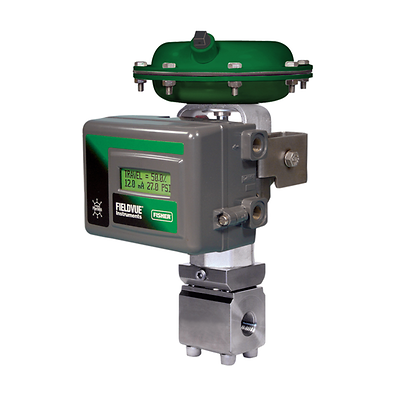

Fisher Baumann 81000 Mikroseal Control Valve

The Fisher Baumann 81000 Mikroseal control valve is suitable for throttling of liquid or gaseous media, particularly where wide flow variations are encountered. Its packless design allows for applications where leakage-prone stem packings are not tolerated. A nearly frictionless mechanical force-amplifying mechanism is employed to reduce the travel of the pneumatic or electric actuators. This allows the closure diaphragm to move precisely against the valve orifice to throttle or stop the passing fluid. The same nearly frictionless mechanism, composed of stainless steel and PTFE lined ball bearings and guide bushings, provides high-precision positioning with low deadband.

Online consultation

Details

Features

1.Compact and light weight design reduces installed piping costs.

2.Packless construction is available.

3.Epoxy powder coated actuator cases with stainless steel yoke and fasteners for corrosion resistance.

4.Multi-spring, field reversible actuator with reduced deadband permits direct operation from remote signal devices.

5.Fisher FIELDVUE™ digital valve controller is available for remote calibration and diagnostics.

Specifications

Parameter Category	Details
Certifications	PED, CUTR, ATEX, CRN
Critical Service	Low Flow
Flow Characteristics	Modified Equal Percentage
Material	Stainless, Alloy
Operating Temperature	Standard Temperature
Pressure Class	275 psig CWP
Process Connection Type	Threaded
Shutoff Class	Class IV (FCI 70-2)
Valve Size	NPS 1/4, NPS 1/2
Valve Size Standard	NPS
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
