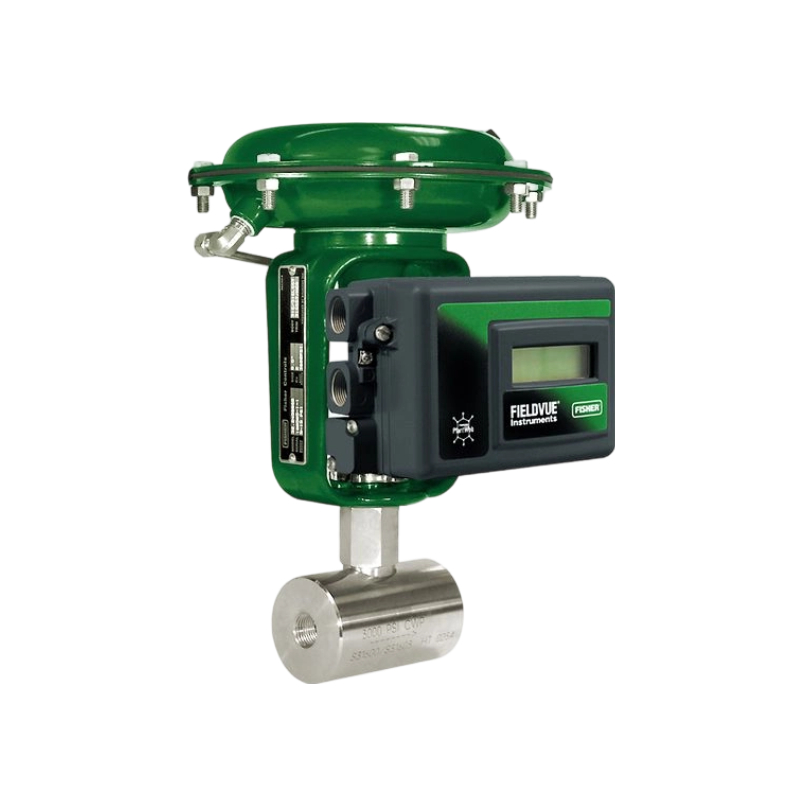

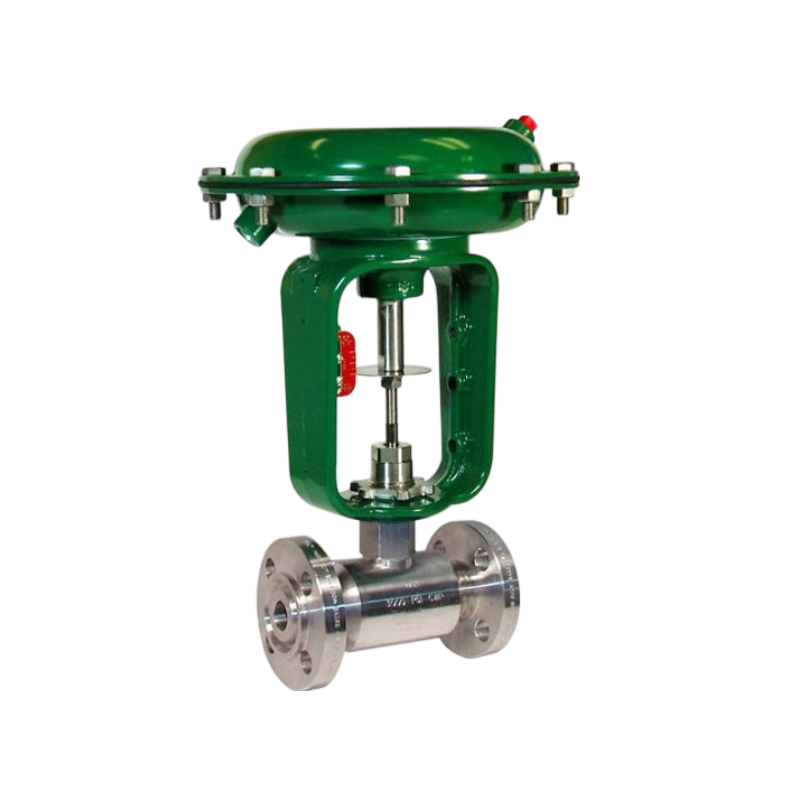

Fisher Baumann 24000SB Bar Stock Control Valve

The Baumann 24000SB control valve is recommended for low flow, high pressure, and industrial control applications. With a Cv rating as low as 0.00013, the 24000SB offers low precise flow for injection applications. Various end connections ranging from threaded (standard), butt weld, and flanged add versatility to this high-pressure product line. Special high nickel alloy constructions are available and round out the basic S31600/S31603 stainless steel offering.

Online consultation

Details

Features

1.Compact and light weight design reduces installed piping costs.

2.Superior dual plug and stem guiding provides increased stability during plug travel.

3.Multiple trim capacity reductions available to meet changing process requirements with Cv ratings as low as 0.00013.

4.Optional extended bonnet for applications ranging from -195°C to 537°C (-320°F to 1000°F).

5.Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance.

6.Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices.

7.Optional Fisher™ enhanced ENVIRO-SEAL™ packing system to meet critical emission control requirements.

8.Fisher FIELDVUE™ digital valve controller is available for remote calibration and diagnostics.

Specifications

Parameter Category	Details
Certifications	PED, CUTR, ATEX, CRN
Critical Service	Low Flow
Flow Characteristics	Equal Percentage, Linear
Material	Stainless, Alloy
Operating Temperature	Cryogenic, Standard Temperature, High Temperature
Pressure Class	ANSI CL150, ANSI CL300, ANSI CL600, ANSI CL900, ANSI CL1500
Process Connection Type	Tri-Clamp
Shutoff Class	Throttling
Valve Size	NPS 1/2, NPS 3/4, NPS 1
Valve Size Standard	NPS
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
