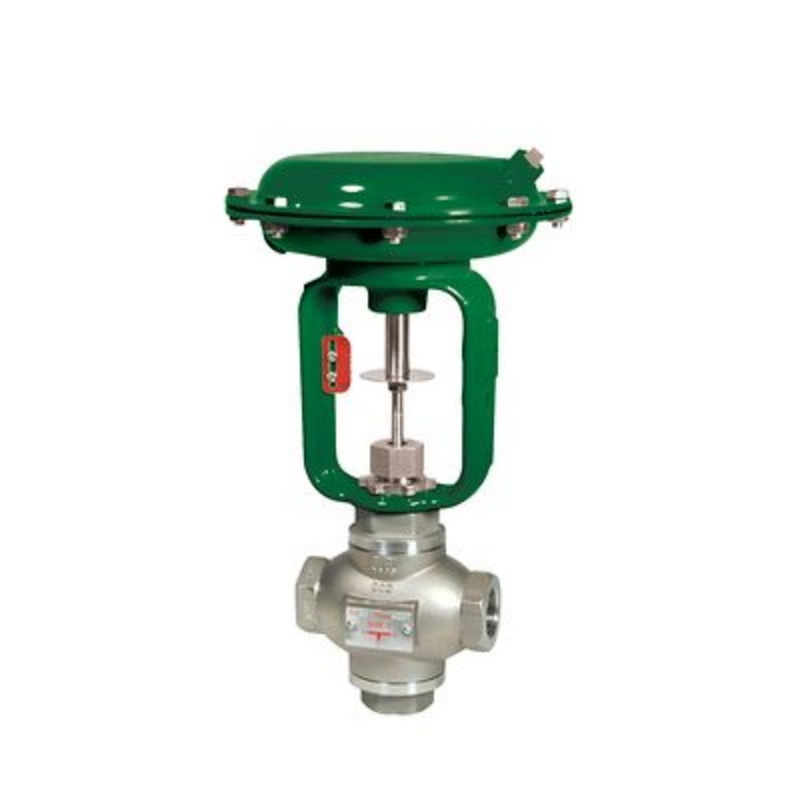

Fisher Baumann 24003 Three-Way Control Valve

The Baumann 24003 three-way control valve is ideally suited for control of flow and temperature where mixing or diverting service is required. This valve uses a rugged cast bronze or CF8M stainless steel body with S31600 austenitic stainless steel trim for extended service life.

Online consultation

Details

Features

1.Optional Fisher ENVIRO-SEAL packing system to meet critical emission control requirements.

2.High quality type 316 austenitic stainless steel trim materials are available.

3.Superior dual plug and stem guiding provides increased stability during plug travel.

4.Multiple trim capacity reductions available to meet changing process requirements.

5.Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance.

6.Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices.

7.Entire actuator and yoke can be removed from the valve assembly while maintaining packing integrity.

8.Fisher FIELDVUE digital valve controllers are available for remote calibration and diagnostics.

Specifications

Parameter Category	Details
Certifications	PED, CUTR, ATEX, CRN
Critical Service	General Service, Mixing
Flow Characteristics	Linear
Material	Bronze, Stainless
Operating Temperature	Standard Temperature
Pressure Class	Bronze: 400 psi at 150°F/250 psi at 400°F; Stainless: 720 psi at 150°F/515 psi at 400°F
Process Connection Type	Threaded, Welded-on Flanges
Control Type	Class III (FCI 70-2)
Valve Size	NPS 1/2, NPS 1, NPS 1-1/2, NPS 2
Valve Size Standard	NPS
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
