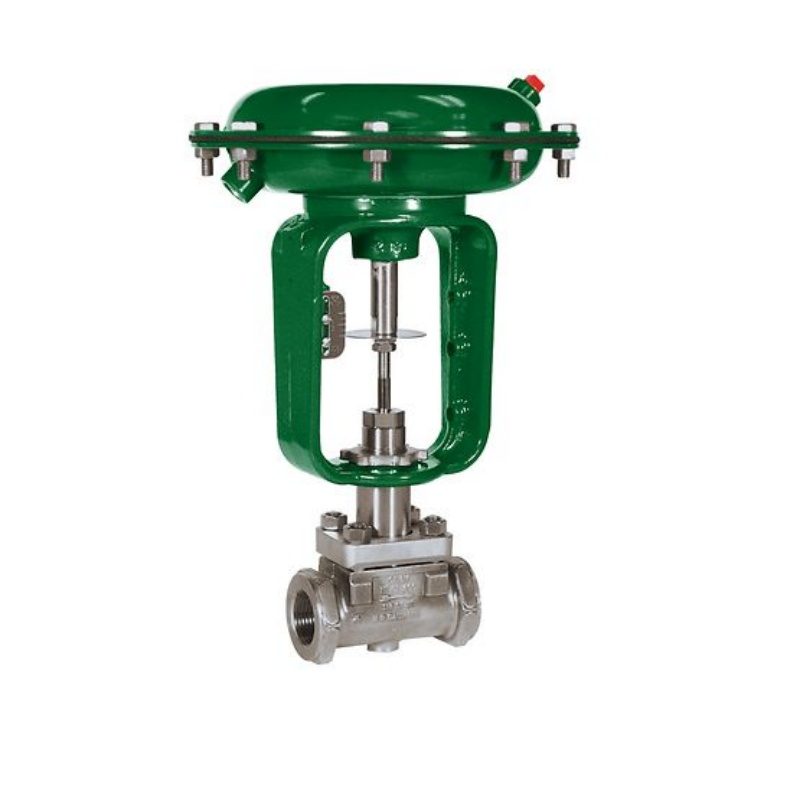

Fisher Baumann 24000S Stainless Steel Control Valve

The Fisher Baumann 24000S control valve is versatile, pneumatic, and may be used for the control of pressure, temperature, level, and flow. The CF8M stainless steel valve body will withstand mildly corrosive fluids, yet is economical enough to use in applications where carbon steel is normally specified.

Online consultation

Details

Features

1.Compact and light weight design reduces installed piping costs.

2.End connection options are available to meet your piping standards.

3.Dual stem and plug guiding provides increased stability during plug travel.

4.High quality S31600 stainless steel trim materials; S41600 stainless steel trim available.

5.Multiple trim capacity reductions available to meet changing process requirements.

6.Fisher FIELDVUE™ digital valve controllers are available for remote calibration and diagnostics

7.NOLEEK bellows bonnet and single through triple extension bonnets are available.

Specifications

Certifications	PED, CUTR, ATEX, CRN
Critical Service	General Service, Corrosive
Flow Characteristics	Equal Percentage, Linear
Material	Stainless
Operating Temperature	Cryogenic, Standard Temperature, High Temperature
Pressure Class	ANSI CL300 (NPS 3 is only CL150)
Process Connection Type	Threaded (NPS 3 is flangeless), Butt Weld
Shutoff Class	Class IV (FCI 70-2), Class VI (FCI 70-2)
Valve Size	NPS 1/2, NPS 3/4, NPS 1, NPS 1-1/2, NPS 2, NPS 3
Valve Size Standard	NPS
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
