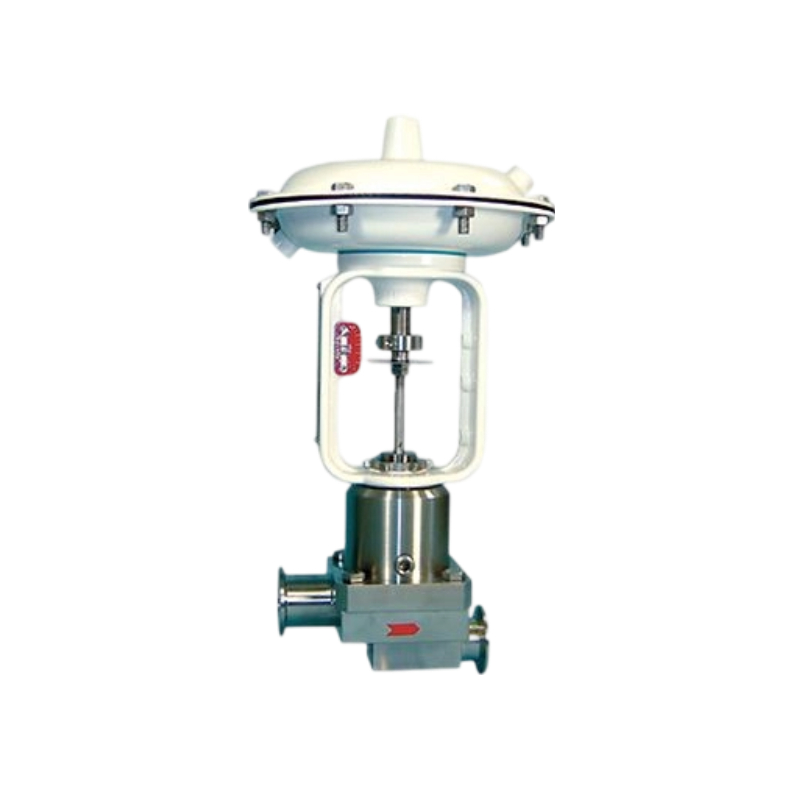

Baumann 84000 Sanitary Control Valve

Baumann 84000 sanitary control valves are designed to satisfy the stringent demands of the life sciences industry. These valves are in compliance with 3A Sanitary Standards Inc. requirements. Incorporating reliable class III diaphragm technology, the 84000 valves can handle high temperatures. The uniquely shaped diaphragm results in low shear forces in the flow stream, decreasing possible damage to delicate bio-media or altering the consistency of the end product.

Online consultation

Details

Features

1.Features electropolished internal surfaces.

2.USP 24 Class VI PTFE, EPDM backed diaphragm.

3.Designed for clean-in-place (CIP) and sanitize-in-place (SIP).

4.Self-draining in designated mounting mode.

5.Compact size is ideal for tight spaces.

6.FDA approved epoxy powder-coated actuator with stainless steel fasteners for corrosion resistance.

7.Multi-spring field-reversible actuators with reduced deadband permits direct operation from remote signal devices.

Specifications

Parameter Category	Details
Certifications	3A, CRN, CUTR, PED
Critical Service	Low Flow, General Service
Flow Characteristics	Special Characterizations, Modified Equal Percentage
Material	Stainless
Operating Temperature	Standard Temperature, High Temperature
Pressure Class	150 psi
Process Connection Type	Tri-Clamp
Control Type	Throttling
Valve Size	NPS 1, NPS 1-1/2, NPS 2
Valve Size Standard	NPS
Other Configurations	Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
