Features

1.Small dimensions

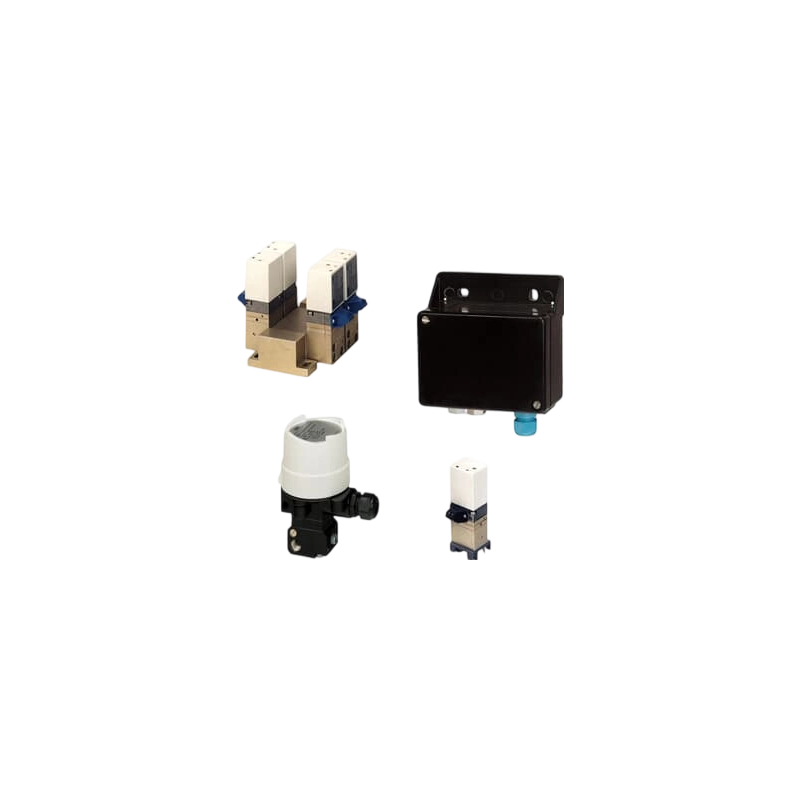

2.Variable designs

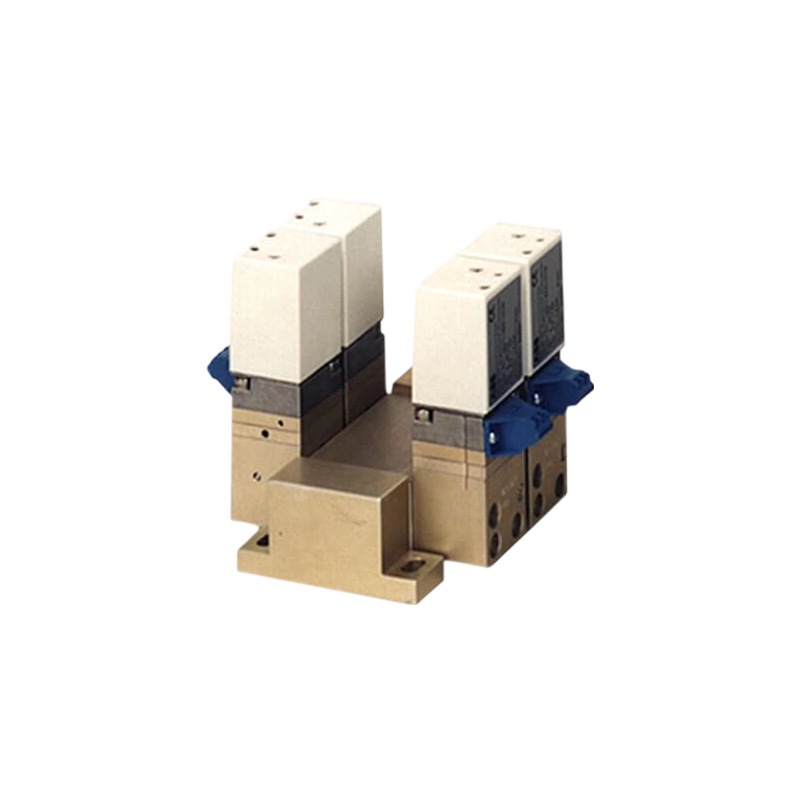

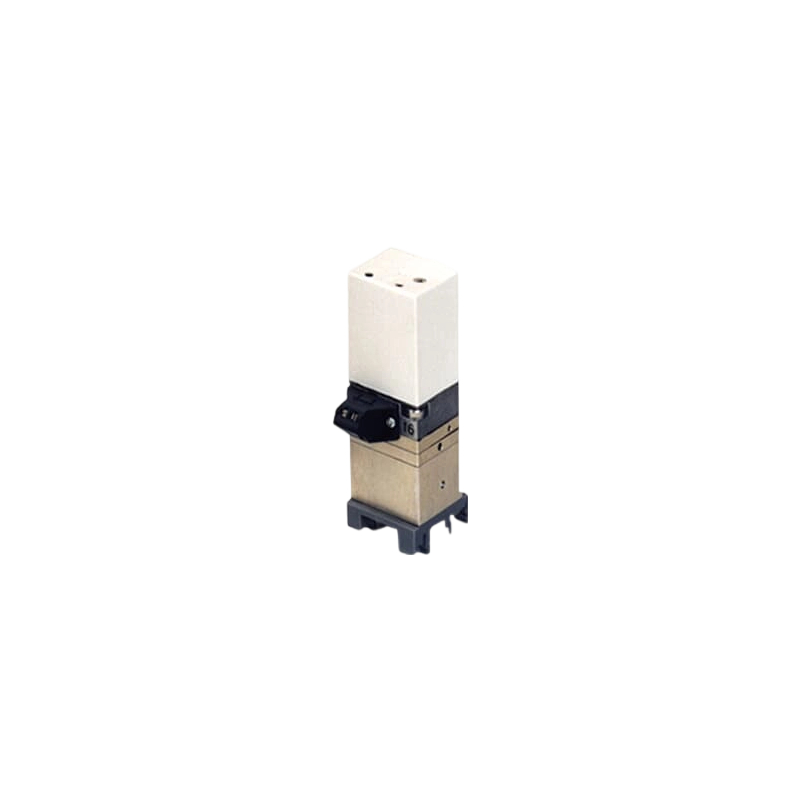

– Control room housing IP 20, for rail and block mounting

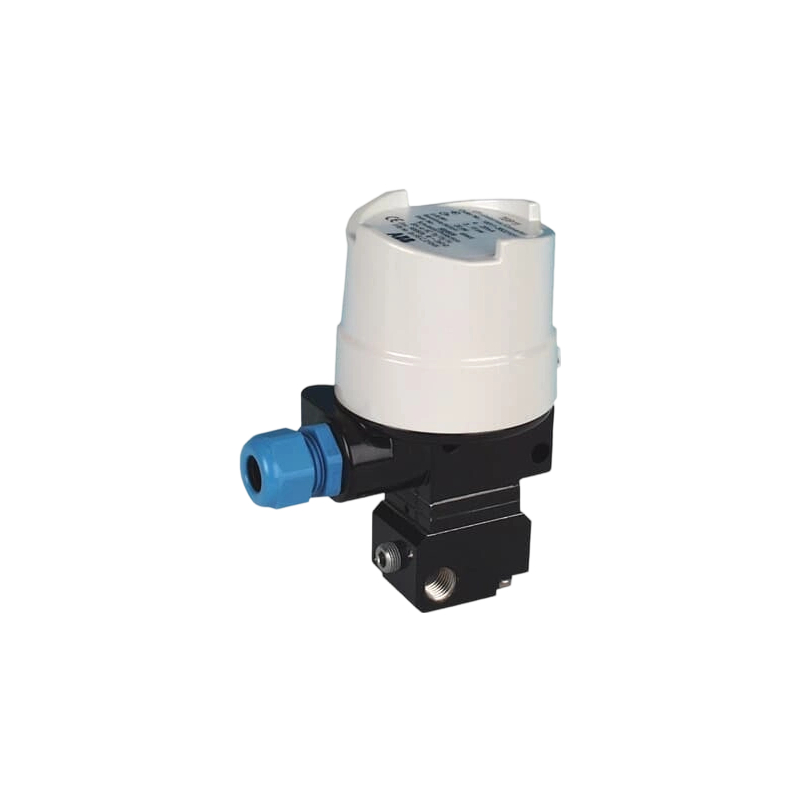

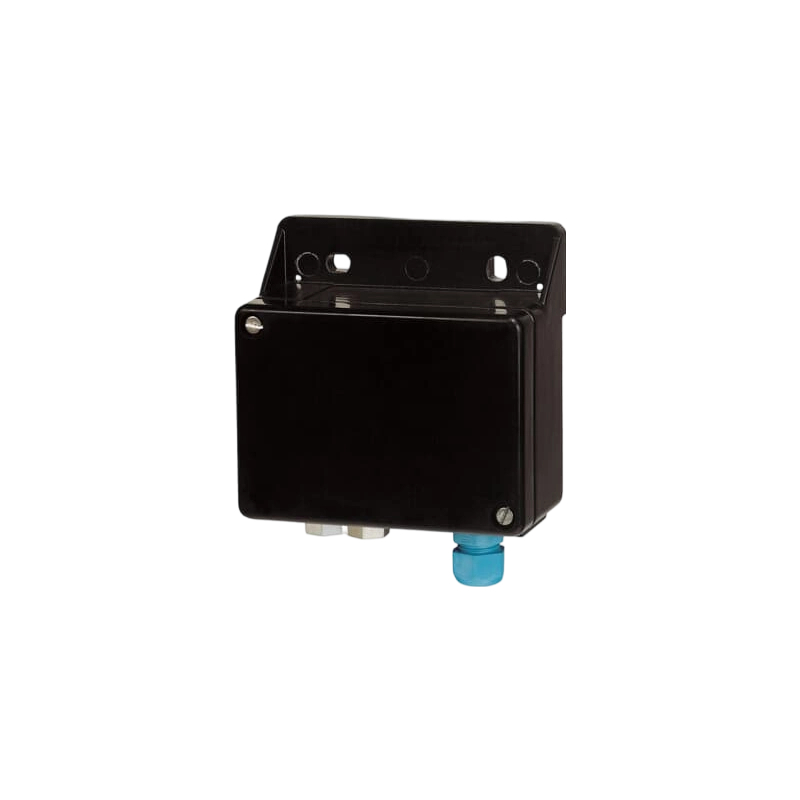

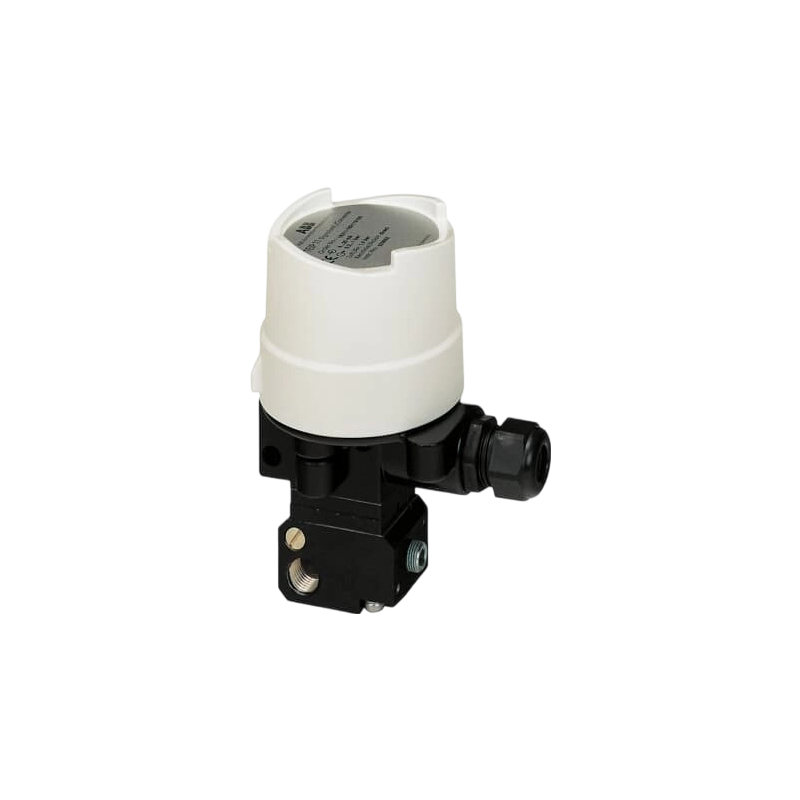

– Field housing, polyester IP 54
– Field housing, aluminium IP 65

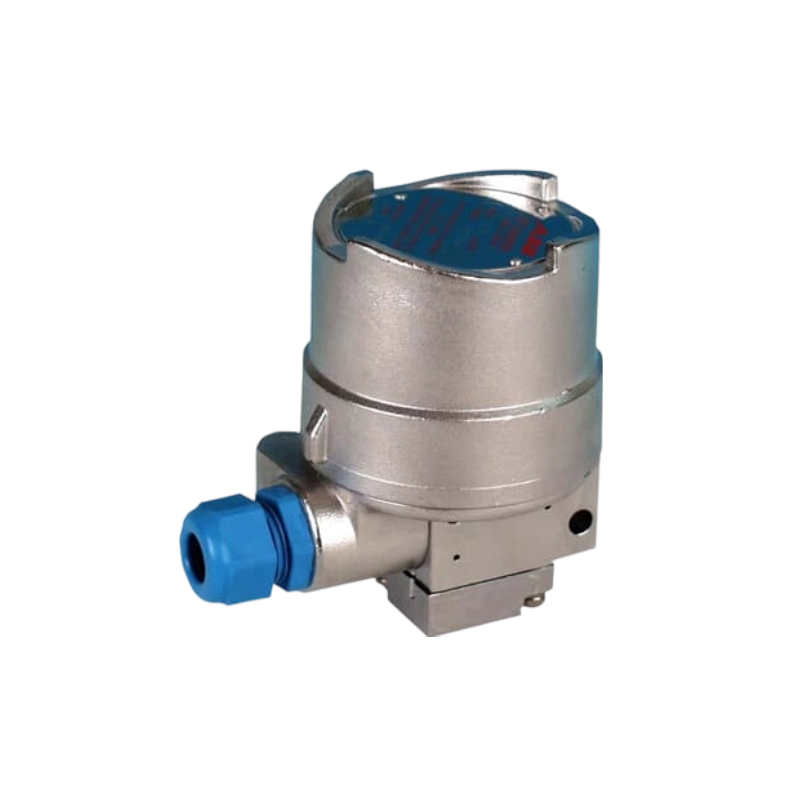

– Field housing, stainless steel IP 65

3.High immunity to shocks and vibrations with an effect < 1% for loads up to 10 g

4.Wide temperature range
–  -40 °C (optionally -55 °C) to 85 °C

5.Worldwide approvals for Explosion Proof and Intrinsic Safety

Associated Products

TZIDC series ABB positioner: Intelligent, 4-20mA+HART

TZIDC-110 series ABB positioner: Intelligent, with PROFIBUS PA communication

TZIDC-120 series ABB positioner: Intelligent, with FOUNDATION Fieldbus communication

TZIDC-200 series ABB positioner: Intelligent, flameproof, 4-20mA+HART communication

TZIDC-210 series ABB positioner: Intelligent, flameproof, with PROFIBUS PA communication

TZIDC-220 series ABB positioner: Intelligent, flameproof,

Common ABB Positioner Models

V18345-1010121001

Single-acting, fail-safe, 2-wire with 4-20mA feedback, connection 1/2-14NPT

V18345-1010221001

Single-acting, fail-locked (triple-protection), 2-wire with 4-20mA feedback, connection 1/2-14NPT

V18345-1011121001

Single-acting, fail-safe, 2-wire with 4-20mA feedback, Ex ib intrinsic safety, connection 1/2-14NPT

V18345-1017121001

Single-acting, fail-safe, 2-wire with 4-20mA feedback, Ex ia intrinsic safety, connection 1/2-14NPT

V18345-1027120001

Single-acting, fail-safe, no feedback, Ex ia intrinsic safety, with HART communication, connection 1/2-14NPT

V18345-1010520001

Double-acting, fail-locked (triple-protection), no feedback, connection 1/2-14NPT

V18345-1010421001

Double-acting, fail-safe, 2-wire with 4-20mA feedback, connection 1/2-14NPT

V18345-1010521001

Double-acting, fail-locked (triple-protection), 2-wire with 4-20mA feedback, connection 1/2-14NPT

V18345-1027420001

Double-acting, fail-safe, no feedback, Ex ia intrinsic safety, with HART communication, connection 1/2-14NPT
