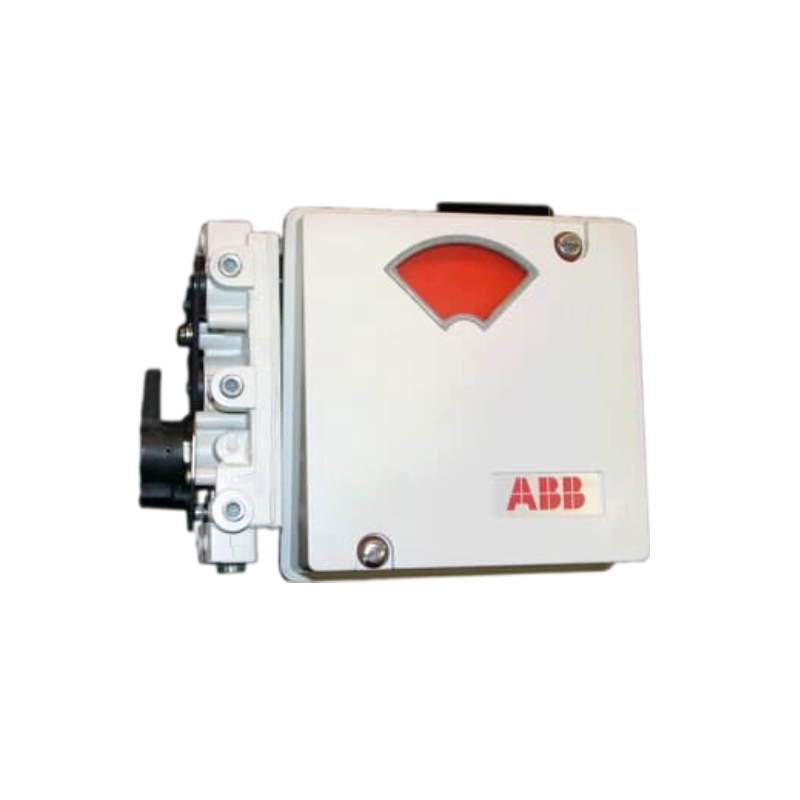

ABB Electro-Pneumatic positioners AV2
A mechanical connection from the actuator to a position feedback cam in the positioner establishes actual position. Three characterized segments on one cam provide application flexibility by establishing various relationships between input signal and actuator position. The relationships provided by the segments are square root, linear, and square.The type AV2 positioner receives an external 4-20mA signal and converts it to a pneumatic output. This output produces the motive force that positions the power actuator
Features
1.Compact rugged design
2.High vibration and shock environments
3.Fast, accurate calibration
4.Single or double-acting without additional hardware
5.Vent design allows natural gas operation
6.Available with explosion-proof I/P converter
Associated Products
TZIDC series ABB positioner: Intelligent, 4-20mA+HART
TZIDC-110 series ABB positioner: Intelligent, with PROFIBUS PA communication
TZIDC-120 series ABB positioner: Intelligent, with FOUNDATION Fieldbus communication
TZIDC-200 series ABB positioner: Intelligent, flameproof, 4-20mA+HART communication
TZIDC-210 series ABB positioner: Intelligent, flameproof, with PROFIBUS PA communication
TZIDC-220 series ABB positioner: Intelligent, flameproof,
Common ABB Positioner Models
V18345-1010121001
Single-acting, fail-safe, 2-wire with 4-20mA feedback, connection 1/2-14NPT
V18345-1010221001
Single-acting, fail-locked (triple-protection), 2-wire with 4-20mA feedback, connection 1/2-14NPT
V18345-1011121001
Single-acting, fail-safe, 2-wire with 4-20mA feedback, Ex ib intrinsic safety, connection 1/2-14NPT
V18345-1017121001
Single-acting, fail-safe, 2-wire with 4-20mA feedback, Ex ia intrinsic safety, connection 1/2-14NPT
V18345-1027120001
Single-acting, fail-safe, no feedback, Ex ia intrinsic safety, with HART communication, connection 1/2-14NPT
V18345-1010520001
Double-acting, fail-locked (triple-protection), no feedback, connection 1/2-14NPT
V18345-1010421001
Double-acting, fail-safe, 2-wire with 4-20mA feedback, connection 1/2-14NPT
V18345-1010521001
Double-acting, fail-locked (triple-protection), 2-wire with 4-20mA feedback, connection 1/2-14NPT
V18345-1027420001
Double-acting, fail-safe, no feedback, Ex ia intrinsic safety, with HART communication, connection 1/2-14NPT
