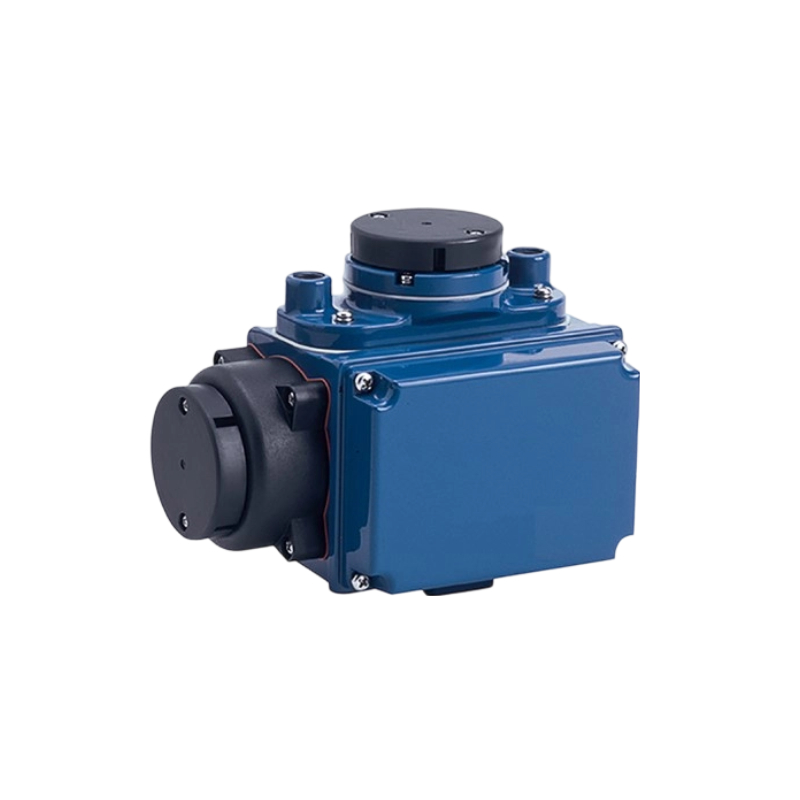

Azbil SVX102 Smart Valve HART Communication Positioner
The smart valve positioner for rotary valves can be installed compactly on the upper part of the valve shaft, allowing flexible adaptation to the installation environment.
Features
1.Single action/Double action
2.Auto set-up
3.Communication : HART
4.Easy zero/span adjustments
Specifications
| Positioner type | Smart Valve positioner for rotary valve |
|---|---|
| Model No. | SVX100, SVX102 |
| Input signal | 4 to 20mADC, split range setting available |
| Stroke range | to 90° (Rotary) |
| Air supply pressure | 140 to 700kPa |
| Ambient temperature | -40 to +80°C |
