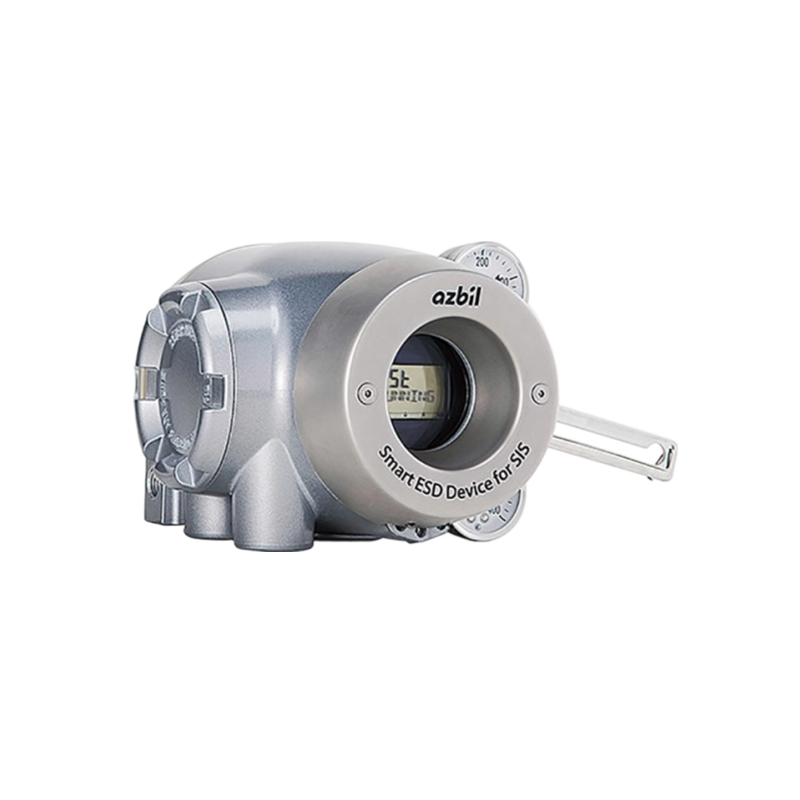

Azbil Smart ESD Device 700 Series Emergency Shutdown AVP791

The Smart ESD Device 700 Series supports safety instrumentation systems and is equipped with a partial stroke test (PST) function to diagnose abnormalities in emergency shutoff valves.

Online consultation

Details

Features

1.Single action/Double action
2.Auto set-up
3.Valve signature and step Response Test
4.Valve travel transmitter function
5.Communication : HART 7, FOUNDATION Fieldbus ITK6.1

Specifications

Positioner type	Smart ESD Device 700 Series
Model No.	AVP77_/78_/79_
Input signal	4–20 mA DC, 0–20 mA DC, 0/24 V DC, and HART® are supported
Stroke range	14.3 to 100 mm Stroke (Feedback Lever Angle ±4° to ±20°)
Air supply pressure	140–700 kPa
Ambient temperature	−40 to +80°C
