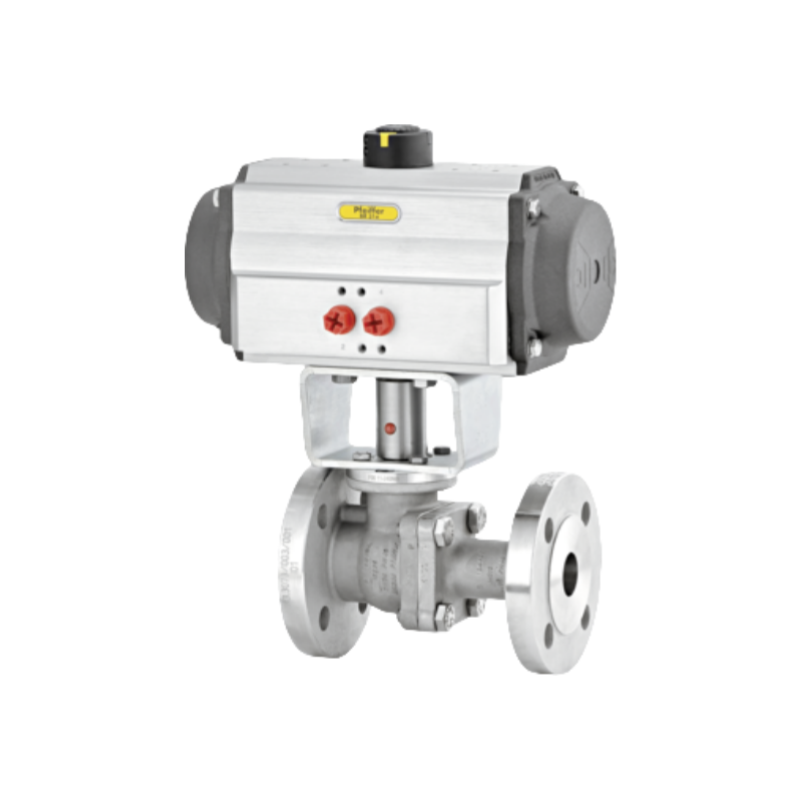

Special features

1.Consisting of ball valve and actuator

2.Forged or bar stock ball valve

3.Metal sealing system

4.Gaskets live loaded on both sides

5.Trunnion-mounted ball

6.Corrosion-resistant materials to withstand corrosive process media

7.DIN ISO 5211 interface as standard

8.PTFE V-ring packing loaded by disk springs

9.TA Luft

10.Blow-out-proof shaft

11.Face-to-face dimensions according to DIN EN 558, Series 1 or ASME B16.10-2000

12.Leakage requirements according to DIN EN 12266

Specification

VALVE STYLE

Ball valve

USAGE

Low-pressure service

On/off service

VERSION

ANSI

MEDIUM TEMPERATURE

-10 to 200 °C / 14 to 392 °F

SUPPLY

Pneumatic

VALVE SIZE

NPS ½ to NPS 4

PRESSURE RATING

Class 150 to Class 300

LINING

without
