Features

1.Piston-sensed design provides a long service life and enhanced safety

2.High flow, low pressure drop

3.Balanced valve design minimizes supply pressure effect

4.Lightweight, precision machined aluminum construction

5.Used in diverse applications for a broad range of temperatures, flows, and pressures

Specifications

Pressure Rating：Maximum Inlet Pressure: 3600 psig / 248 bar

                            Outlet Pressure Ranges:

                            50-89 psig / 3.4-6.1 bar

                            90-200 psig / 6.2-13.8 bar

                            201-320 psig / 13.9-22.1 bar

MaterialBody: Aluminum 6061-T6 with Nickel Plating

                       Seat: Vespel®

                       Main Valve: 17-4 Stainless Steel

                       Sensor: Aluminum 6061-T6

                       Sensor Insert: 17-4 Stainless Steel

                       Remaining Parts: 300 Series Stainless Steel, Teflon®, Buna-N, Ethylene Propylen

                       Operating Temperature-40°F to 200°F / -40°C to 93°C

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

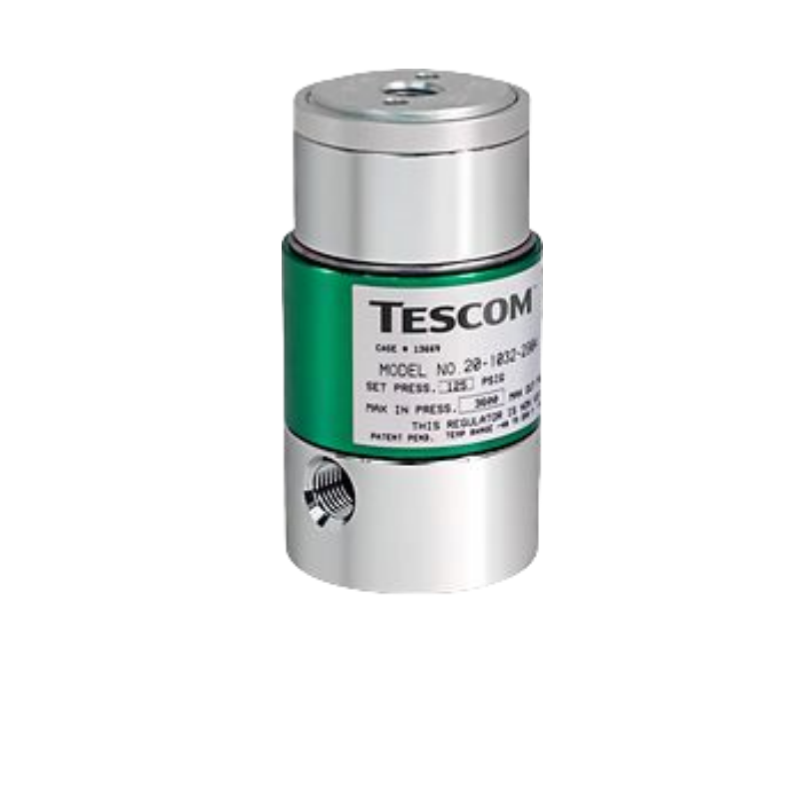

Picture show:
