Samson 2435/2403-DIN Self-operated regulators

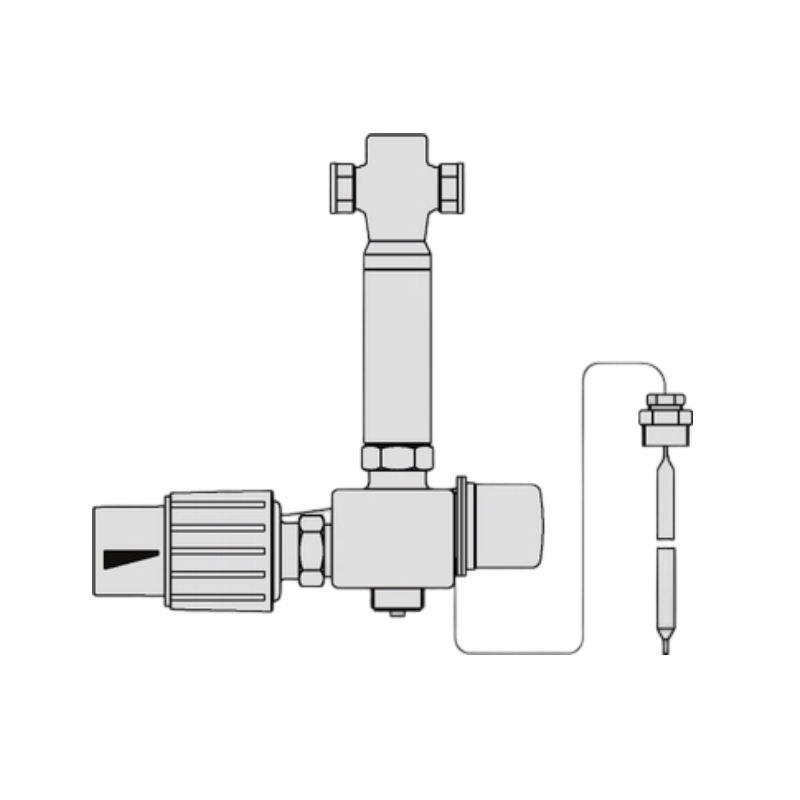

Samson 2435/2403-DIN is a DIN-compliant self-operated safety temperature monitor (STM) requiring no external power supply, designed to provide over-temperature protection in heating systemsSAMSON USA. This compact safety device consists of a 2435 bellows-balanced globe valve and a 2403 safety thermostat with an integrated temperature sensor, automatically closing when the temperature exceeds its preset limit (heating mode)SAMSON USA. It delivers reliable safety shutoff for water, non-corrosive liquids, and steam applications, ensuring compliance with DIN EN 14597 standards for extended safety in heating systems.
Features
1.Safety temperature monitor
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2435
1.Globe valve with plug balanced by a bellows
2.Female thread connection
3.Compact design with particularly low overall height
Specification
USAGE
Temperature contro
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 200 °C / 35.6 to 392 °F
VALVE SIZE
G ½ to G 1
PRESSURE RATING
PN 25
FUNCTION
Safety temperature monitor (STM)
APPLICATION
Valve closes when the temperature rises (heating)
TEMPERATURE LIMIT
60 to 120 °C / 140 to 248 °F
