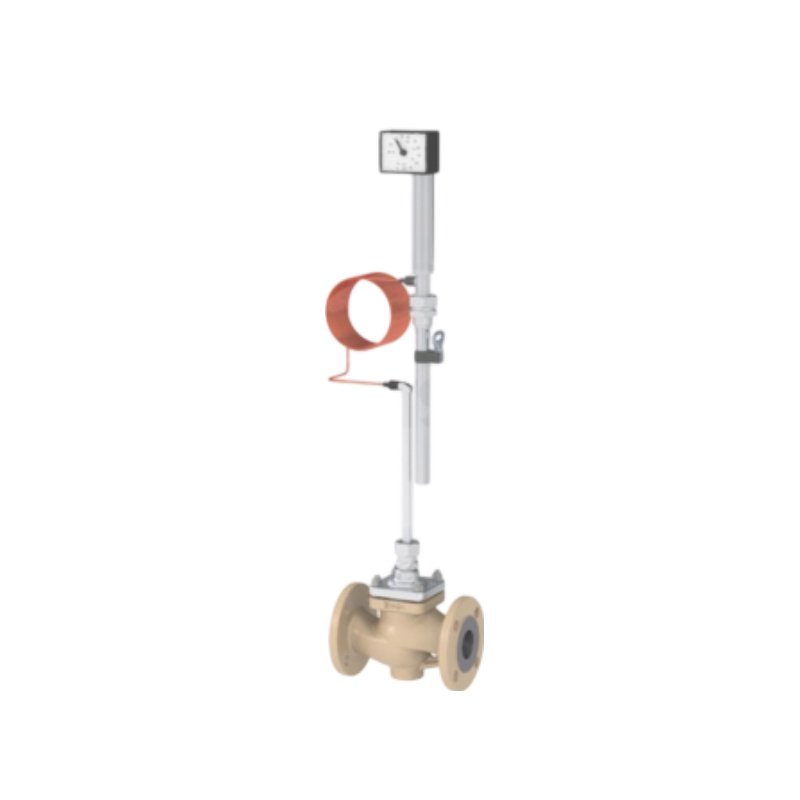

Samson 1-DIN Self-operated regulators
Samson 1-DIN is a DIN-compliant self-operated temperature regulator requiring no external power supply, designed to maintain precise temperature control in industrial heating, cooling, and process applications. It consists of an unbalanced globe valve (Type 2111) and a control thermostat with an integrated temperature sensor, automatically closing when the temperature exceeds its preset value (heating mode). This robust regulator delivers reliable proportional control for water, steam, heat transfer oil, and non-corrosive gases, ensuring stable system performance in demanding industrial environments.
Features
1.Temperature regulator
2.Consisting of valve and control thermostat with temperature sensor
3.Tested according to DIN EN 14597
Valve 2111
Unbalanced globe valve
Excess temperature safety device
Specification
USAGE
Temperature control
MEDIUM
Water and other liquids
Steam
Air and non-flammable gases
Heat transfer oil
VERSION
DIN
MEDIUM TEMPERATURE
-20 to 350 °C / -4 to 662 °F
VALVE SIZE
DN 15 to DN 50
PRESSURE RATING
PN 16 to PN 40
FUNCTION
Temperature regulator (TR)
APPLICATION
Valve closes when the temperature rises (heating)
TEMPERATURE SET POINT
-10 to 250 °C / 14 to 482 °F
RESPONSE SPEED
Standard
