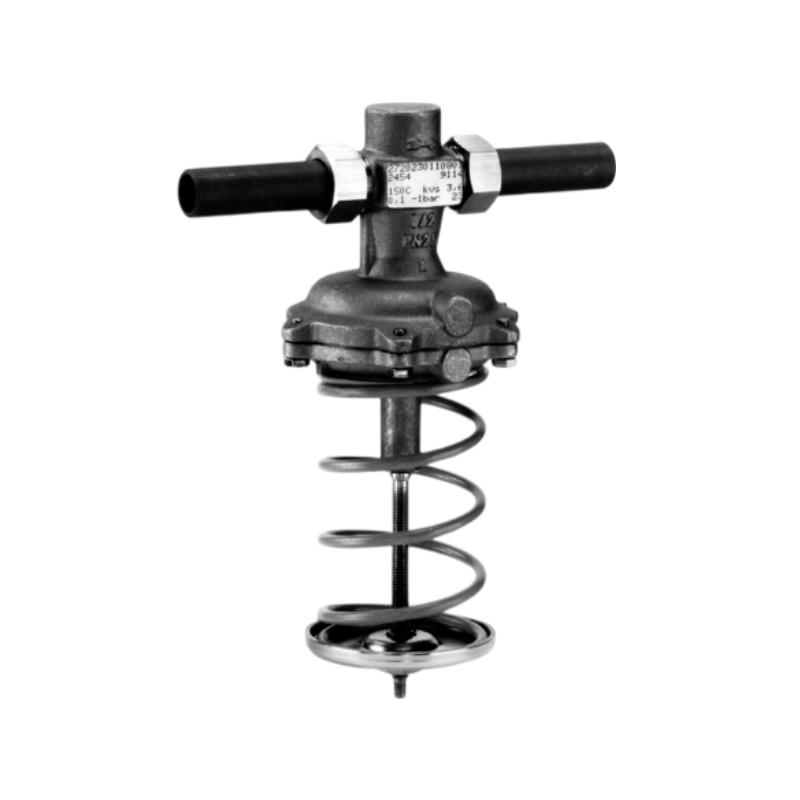

Samson 45-4-DIN Self-operated regulators
Samson 45-4-DIN is a DIN-compliant self-operated differential pressure regulator with a closing actuator, designed to maintain a constant pressure difference across control valves, heat exchangers, or other system components in district heating and industrial applications. This robust regulator requires no external power supply, operating solely on process medium pressure, and features a single-seated globe valve with a balanced plug that automatically closes when the differential pressure exceeds its preset value. It is specifically engineered for house substations in district heating systems, fulfilling DIN 4747-1 standards and AGFW requirements for components in these applications.
Features
1.Differential pressure regulator
2.Consisting of valve and closing actuator
3.Single-seated valve with balanced plug
4.Suitable for district heating systems according to DIN 4747-1 (fulfills AGFW requirements for components in house substations)
5.With connection nuts and welding ends
Specification
USAGE
Differential pressure control
MEDIUM
Water and other liquids
Air and non-flammable gases
VERSION
DIN
MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F
VALVE SIZE
DN 15 to DN 50
PRESSURE RATING
PN 25
FUNCTION
Differential pressure regulator
Flow limiter
APPLICATION
Valve closes when the differential pressure rises
INSTALLATION
Return flow pipe
DIFFERENTIAL PRESSURE SET POINT
0.1 to 4 bar / 1.45 to 58.02 psi
