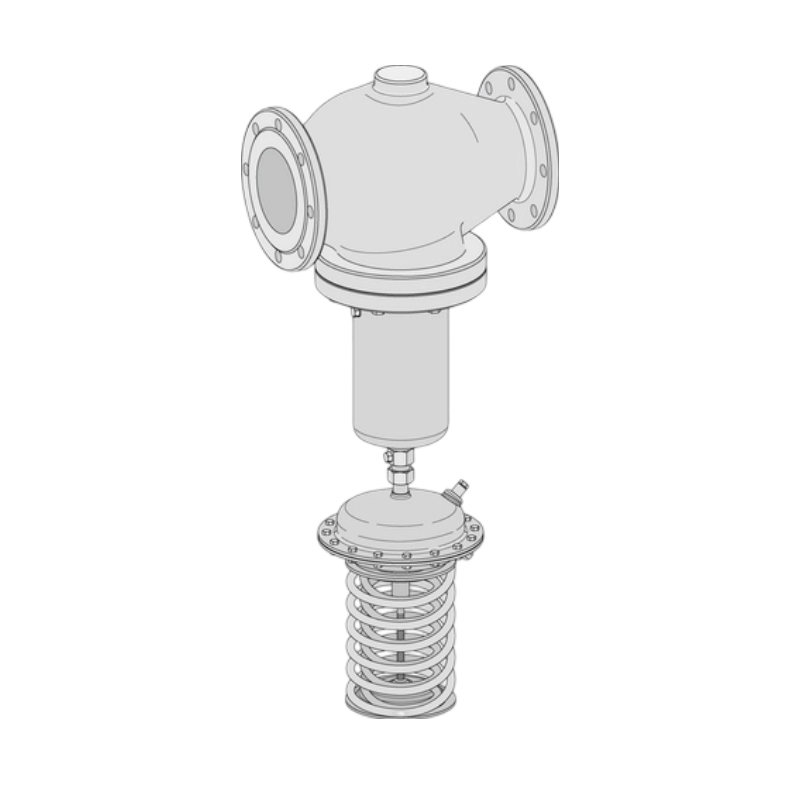

Samson 2422/2424-DIN Self-operated regulators
Samson 2422/2424-DIN is a DIN-compliant self-operated pressure reducing valve requiring no external power supply, designed to maintain stable downstream pressure by closing automatically when the pressure exceeds the preset value. It consists of a pressure-balanced single-seated globe valve (Type 2422) and a robust rolling diaphragm actuator (Type 2424), delivering reliable proportional control for large flow rates with minimal pressure deviation.
Features
1.Pressure reducing valve
2.Consisting of valve and actuator
3.Suitable for flammable gases and oil (consult with SAMSON)
Valve 2422
1.Set point adjustment using a nut
2.Spring-loaded, single-seated valve with upstream and downstream pressure balancing
3.Standard low-noise plug
Specification
USAGE
Differential pressure and flow control
MEDIUM
Steam
Water and other liquids
Oils
Gases
Heat transfer oil
Air and non-flammable gases
VERSION
DIN
MEDIUM TEMPERATURE
2 to 350 °C / 35.6 to 662 °F
VALVE SIZE
DN 125 to DN 250
PRESSURE RATING
PN 16 to PN 40
FUNCTION
Pressure reducing valve
APPLICATION
Valve closes when the downstream pressure rises
