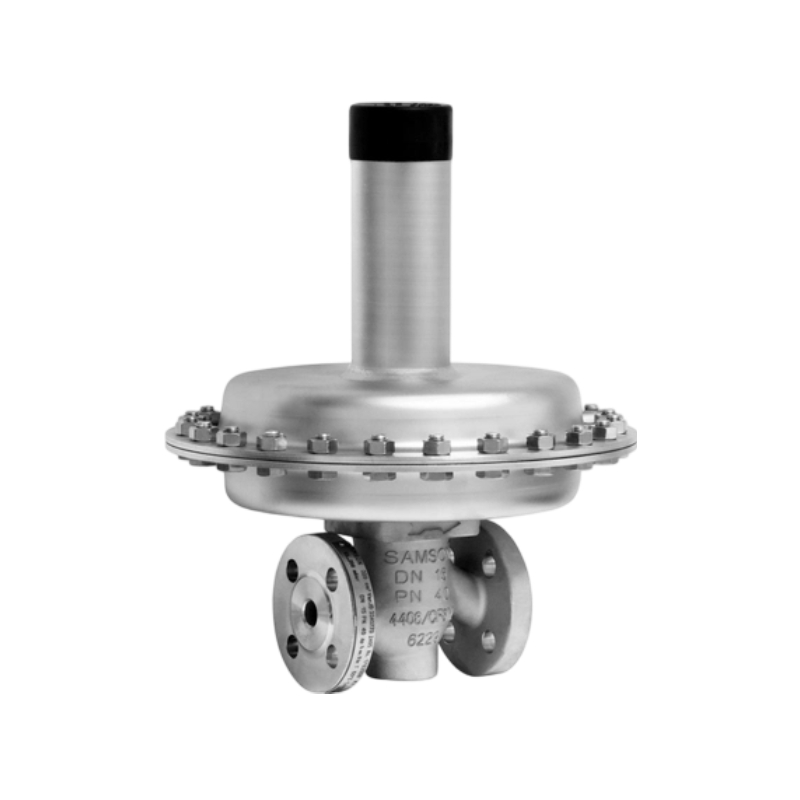

Samson 2405-DIN Self-operated regulators
Samson 2405-DIN is a DIN-compliant self-operated pressure reducing valve requiring no external power supply, specifically designed to maintain stable downstream pressure in gas systems by closing automatically when the pressure exceeds its preset value. It consists of a balanced single-seated globe valve and an actuator with internal set point springs, delivering reliable proportional control for gases, air, and non-flammable media with minimal pressure deviation.
Features
1.Pressure reducing valve
2.Consisting of balanced valve and actuator
3.Compact design
4.High control quality
5.Set point adjustment using a nut on the actuator
6.External control line connection
7.Suitable for vacuum
8.Fulfills strict emission requirements
9.Suitable for flammable gases (consult with SAMSON)
Specification
USAGE
Differential pressure and flow control
MEDIUM
Air and gases
VERSION
DIN
MEDIUM TEMPERATURE
0 to 0 °C / 32 to 32 °F
VALVE SIZE
DN 15 to DN 50
PRESSURE RATING
PN 16 to PN 40
FUNCTION
Pressure reducing valve
APPLICATION
Valve closes when the downstream pressure rises
