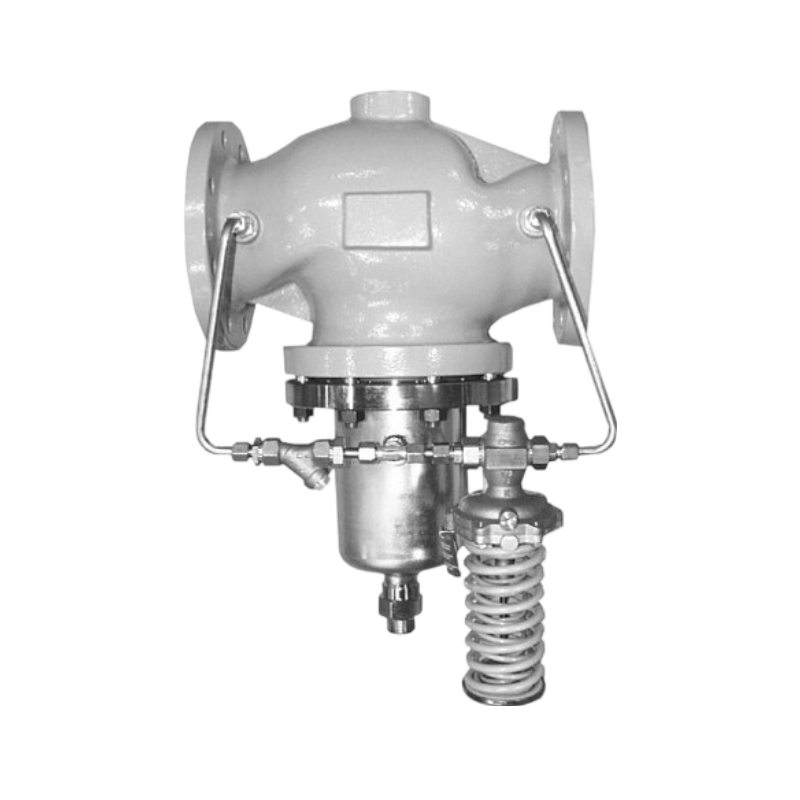

Samson 2333-DIN Self-operated regulators
Samson 2333-DIN is a DIN-compliant pilot-operated self-operated pressure reducing valve requiring no external power supply, designed to maintain stable downstream pressure by closing automatically when the pressure exceeds the preset value.This robust regulator features a balanced valve plug (by diaphragm or bellows) for reduced actuation force and improved control accuracy, even with high differential pressures. It is specifically engineered for large industrial applications with DN 125 to DN 400 pipe sizes, offering a wide set point range and high flow capacity for demanding fluid systems.
Features
1.Pressure reducing valve
2.Consisting of valve and pilot valve
3.High dynamic response and small system deviation
4.Convenient set point adjustment at the pilot valve
5.Delivered as ready-to-install unit
6.Suitable for flammable gases or oil (consult with SAMSON)
Valve 2422 (modified)
Balanced valve
Specification
USAGE
Differential pressure and flow control
MEDIUM
Water and other liquids
Air and non-flammable gases
Gases
VERSION
DIN
MEDIUM TEMPERATURE
-20 to 150 °C / -4 to 302 °F
VALVE SIZE
DN 125 to DN 400
PRESSURE RATING
PN 25
FUNCTION
Pressure reducing valve
APPLICATION
Valve closes when the downstream pressure rises
