Features

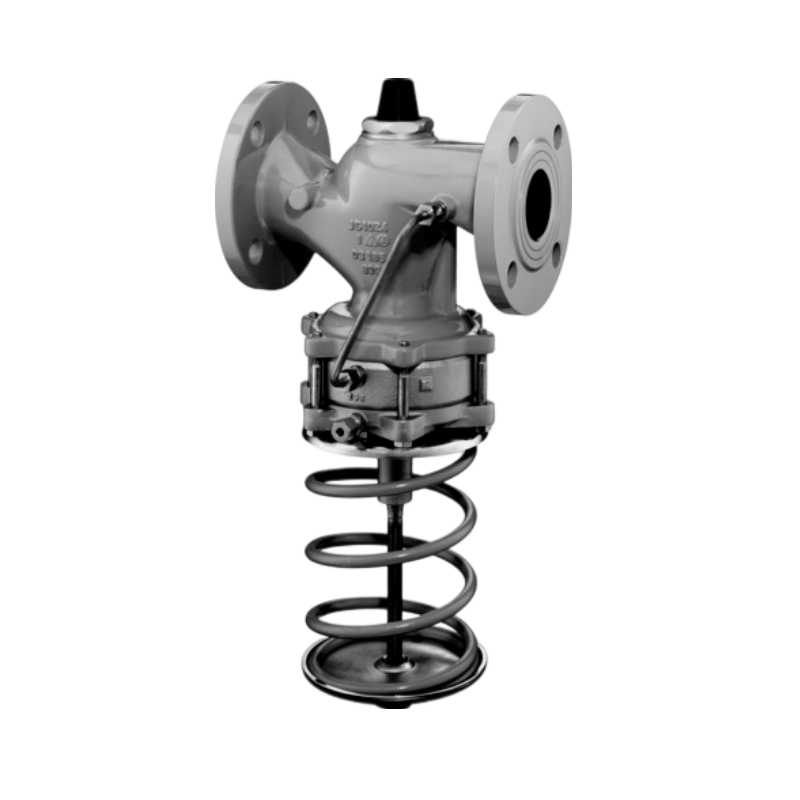

• 1.Flow and differential pressure regulator

• 2.Consisting of valve with adjustable restriction and actuator with two diaphragms

• 3.Single-seated valve with balanced plug

• 4.Particularly suitable for district heating systems according to DIN 4747-1

• 5.Internal overload protection in the actuator

Specification

USAGE

Differential pressure and flow control

MEDIUM
Water and other liquids
Air and non-flammable gases

VERSION
DIN

MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F

VALVE SIZE
DN 15 to DN 50

PRESSURE RATING
PN 16 to PN 25

FUNCTION

Differential pressure regulator

Flow regulator

APPLICATION

Valve closes when the differential pressure rises

Valve closes when the flow rate rises

INSTALLATION

Return flow pipe

FLOW RATE SET POINT

0.01 to 15 m³/h / 0.04 to 66 US gal/min

FLOW RATE DP ACROSS RESTRICTION

0.2 bar / 2.9 psi

DIFFERENTIAL PRESSURE SET POINT

0.2 to 2 bar / 2.9 to 29.01 psi
