Features

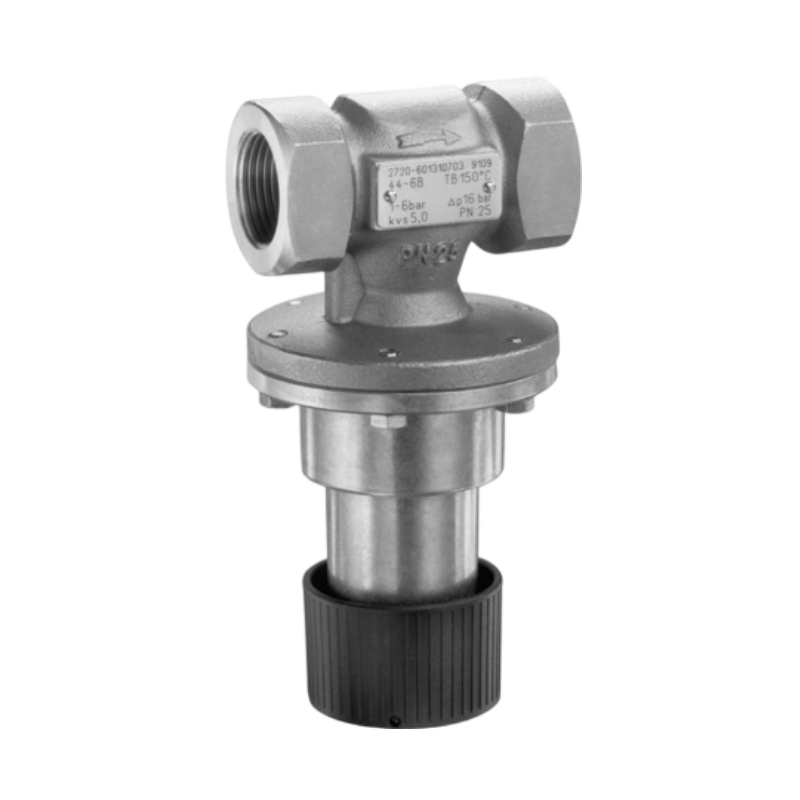

• 1.Excess pressure valve

• 2.Consisting of valve and actuator with operating bellows and set point adjuster

• 3.Balanced/unbalanced spring-loaded valve

• 4.Stainless steel bellows as operating element

• 5.Compact design with particularly low overall height

• 6.Any mounting position possible

• 7.Fulfills strict fugitive emission requirements (TA Luft)

• 8.Suitable for flammable gases (consult with SAMSON)

Specification

USAGE

Pressure control

MEDIUM
Water and other liquids
Air and non-flammable gases
Gases
Steam

VERSION
DIN

MEDIUM TEMPERATURE
-20 to 200 °C / -4 to 392 °F

VALVE SIZE
DN 15 to DN 50
G ½ to G 1

PRESSURE RATING
PN 25

FUNCTION

Excess pressure valve

APPLICATION

Valve closes when the upstream pressure rises
