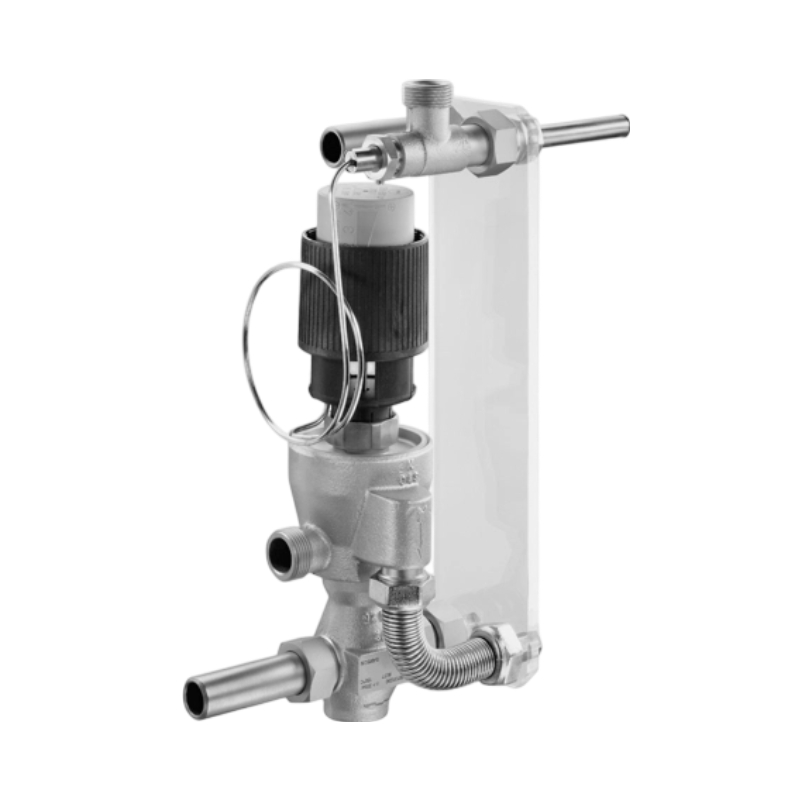

Samson 43-8-DIN Self-operated regulators
Samson 43-8-DIN (43-8 N-DIN) is a DIN-compliant self-operated temperature regulator with idle temperature control function, requiring no external power. It consists of the Type 2438 valve, hydraulic controller, and Type 2430 vapor pressure thermostat with fast response time (approx. 2 seconds), specifically designed for domestic hot water systems to prevent reheating and temperature peaks that cause scaling in heat exchangers. With a set point range of 45 to 65°C (113 to 149°F) and medium temperature capability of 2 to 120°C (35.6 to 248°F), it features a DN 15, PN 25 red brass or hot-pressed brass body. The valve closes when temperature rises, maintaining stable hot water supply while preventing overheating, ensuring energy efficiency and system protection in residential and commercial DHW applications.
Features
1.Temperature regulator
2.Consisting of valve, hydraulic controller, and vapor pressure thermostat
3.Idle temperature control
Specification
USAGE
Temperature control
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 130 °C / 35.6 to 266 °F
VALVE SIZE
DN15
PRESSURE RATING
PN 25
FUNCTION
Temperature regulator (TR)
APPLICATION
Valve closes when the temperature rises (heating)
TEMPERATURE SRT LIMIT
45 to 65 °C / 113 to 149 °F
RESPONSE SPEED
Fast
