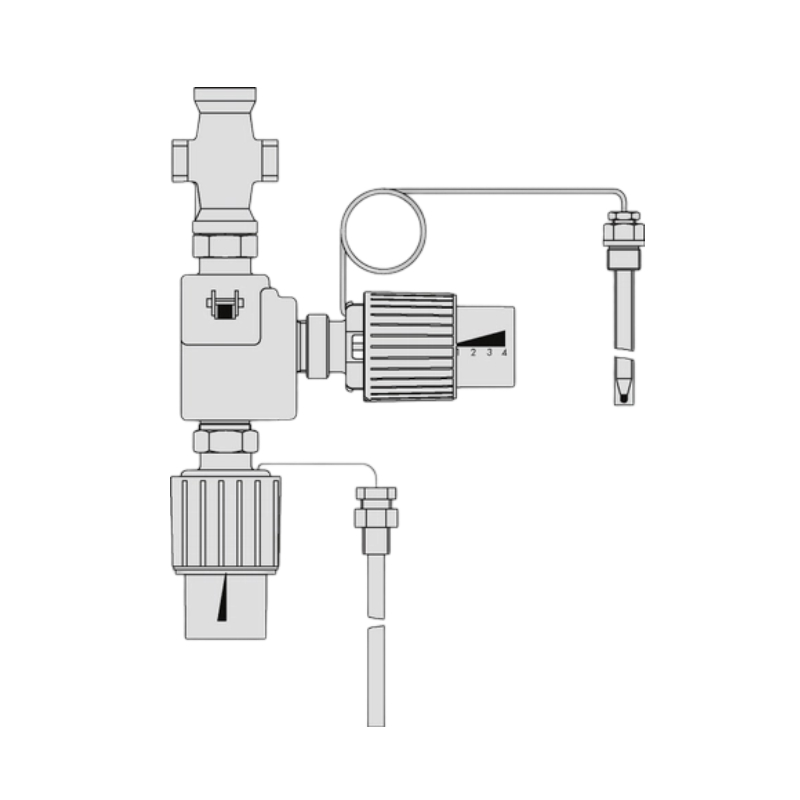

Features

• 1.Safety temperature limiter

• 2.Consisting of valve and safety thermostat

• 3.Extended safety according to DIN EN 14597

• Valve 2436 Muffe

• 1.Globe valve with plug balanced by a bellows

• 2.Compact design with particularly low overall height

• 3.Double adapter to connect additional thermostats

• 4.Manual override

• 5.Version with oil-resistant internal parts

• 6.Version with minimal flow rate

Specification

USAGE

Temperature control

MEDIUM
Water and other liquids

VERSION
DIN

MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F

VALVE SIZE
G ½ to G 1

PRESSURE RATING
PN 25

FUNCTION

TR + STL

APPLICATION

Valve opens when the temperature rises (cooling)

TEMPERATURE LIMIT
10 to 120 °C / 50 to 248 °F

TEMPERATURE SET POINT

0 to 150 °C / 32 to 302 °F

RESPONSE SPEED

Standard
