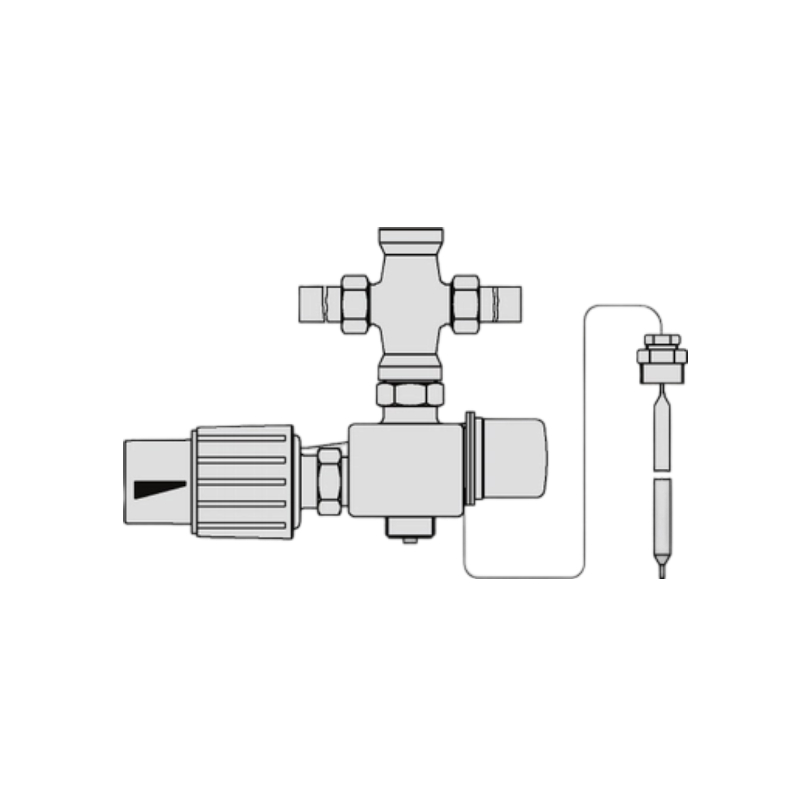

Samson 2436/2403-DIN Self-operated regulators
Samson 2436/2403‑DIN is a DIN‑standard self‑operated safety temperature limiter (STL) requiring no auxiliary energy. It combines the Type 2436 globe valve (with bellows‑balanced plug) and Type 2403 safety thermostat, opening the valve when temperature rises (cooling applications) and automatically closing to prevent overheating when exceeding the set limit (60‑120°C). Fully compliant with DIN EN 14597, it provides fail‑safe protection for water and non‑hazardous liquid cooling systems in district heating, industrial and commercial applications, featuring compact design and low maintenance
Features
1.Safety temperature limiter
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2436 Muffe
1.Globe valve with plug balanced by a bellows
2.Compact design with particularly low overall height
3.Double adapter to connect additional thermostats
4.Manual override
5.Version with oil-resistant internal parts
6.Version with minimal flow rate
Specification
USAGE
Temperature control
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F
VALVE SIZE
G ½ to G 1
PRESSURE RATING
PN 25
FUNCTION
Safety temperature monitor (STM)
APPLICATION
Valve opens when the temperature rises (cooling)
TEMPERATURE LIMIT
60 to 120 °C / 140 to 248 °F
