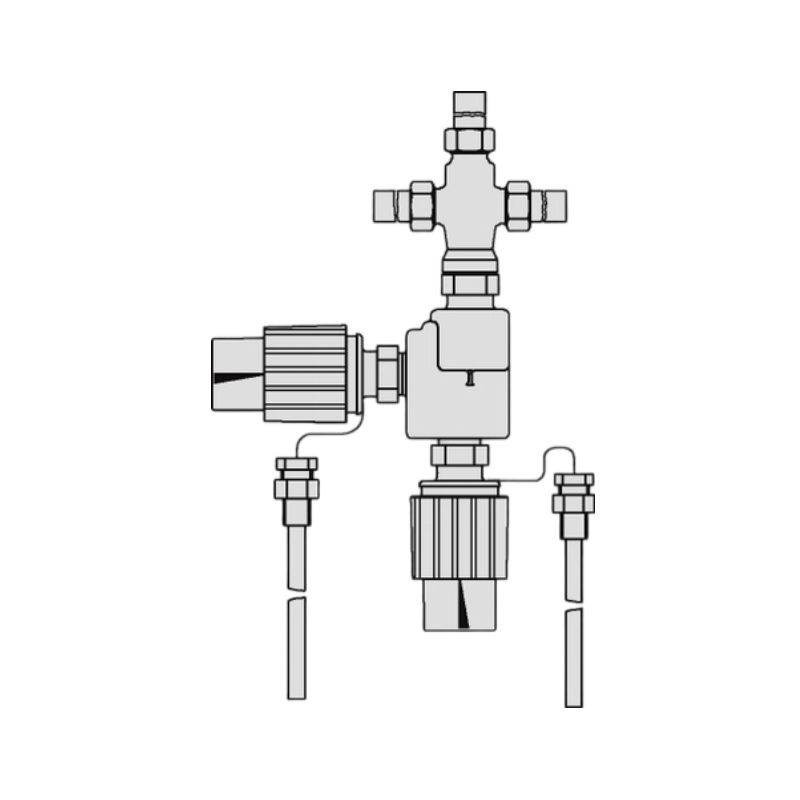

Samson 2433/2439/2430-DIN Self-operated regulators
Samson 2433/2439/2430‑DIN is a DIN‑compliant self‑operated safety temperature limiter with dual‑thermostat control, requiring no external power. It consists of the Type 2433 globe valve, Type 2439 safety temperature limiter and Type 2430 control thermostat, providing both normal temperature regulation and redundant overheat shut‑off in accordance with DIN EN 14597. Suitable for water and non‑hazardous liquids, it is used in district heating and industrial heating systems for integrated control and safety protection.
Features
1.Safety temperature limiter
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2433
1.Unbalanced three-way valve
2.Male thread connection
3.Double adapter to connect additional thermostats
4.Manual override
5.Threaded ends
6.Welding ends
7.Flanges
8.Version for DHW up to 90 °C
Specification
USAGE
Temperature control
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F
VALVE SIZE
G ½ to G 1
PRESSURE RATING
PN 25
FUNCTION
TR + STL
APPLICATION
Mixing/diverting
TEMPERATURE LIMIT
10 to 120 °C / 50 to 248 °F
TEMPERATURE SET POINT
0 to 150 °C / 32 to 302 °F
RESPONSE SPEED
Standard
