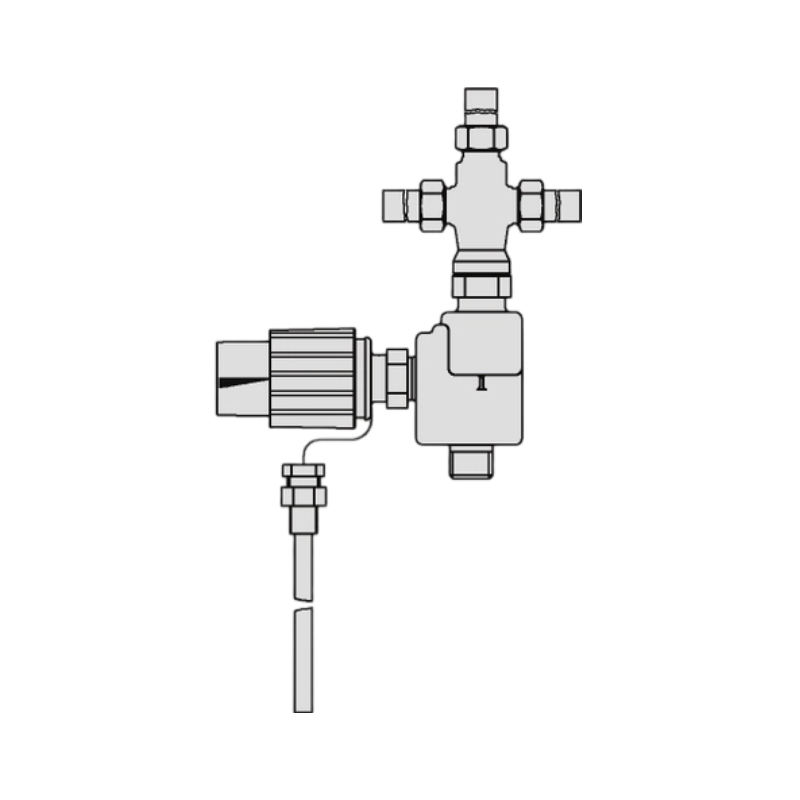

Features

• 1.Safety temperature limiter

• 2.Consisting of valve and safety thermostat

• 3.Extended safety according to DIN EN 14597

• Valve 2433

• 1.Unbalanced three-way valve

• 2.Male thread connection

• 3.Double adapter to connect additional thermostats

• 4.Manual override

• 5.Threaded ends

• 6.Welding ends

• 7.Flanges

Specification

USAGE

Temperature control

MEDIUM
Water and other liquids

VERSION
DIN

MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F

VALVE SIZE
G ½ to G 1

PRESSURE RATING
PN 25

FUNCTION

Safety temperature limiter (STL)

APPLICATION

Mixing/diverting

TEMPERATURE LIMIT
10 to 120 °C / 50 to 248 °F
